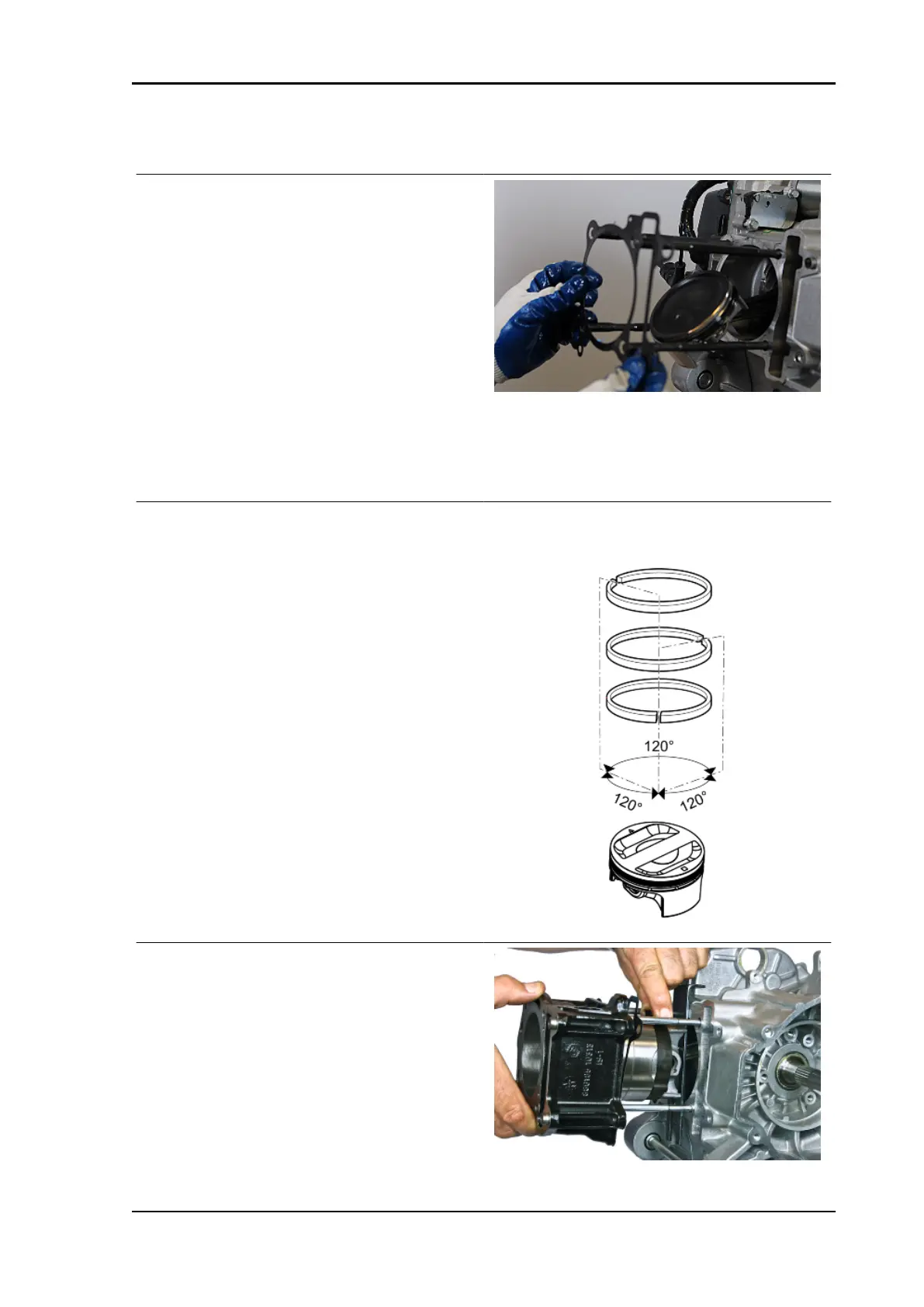

Refitting the cylinder
- Insert the cylinder base gasket.
- Fit the specific tool.
Specific tooling
020426Y Piston fitting fork
- Place the seal rings as indicated in the figure.
- Place the cylinder and the specific tool.
Specific tooling
020128Y Piston fitting ring
MP3 400 hpe E5 Engine
ENG - 97
