Channel Output Invert
This function changes the phase the A or B outputs by 180° in relation to the excitation signal, outputs can be
inverted separately or both outputs can be inverted if required. This means the polarity of the output connections is
not critical as they can easily be inverted with this function.

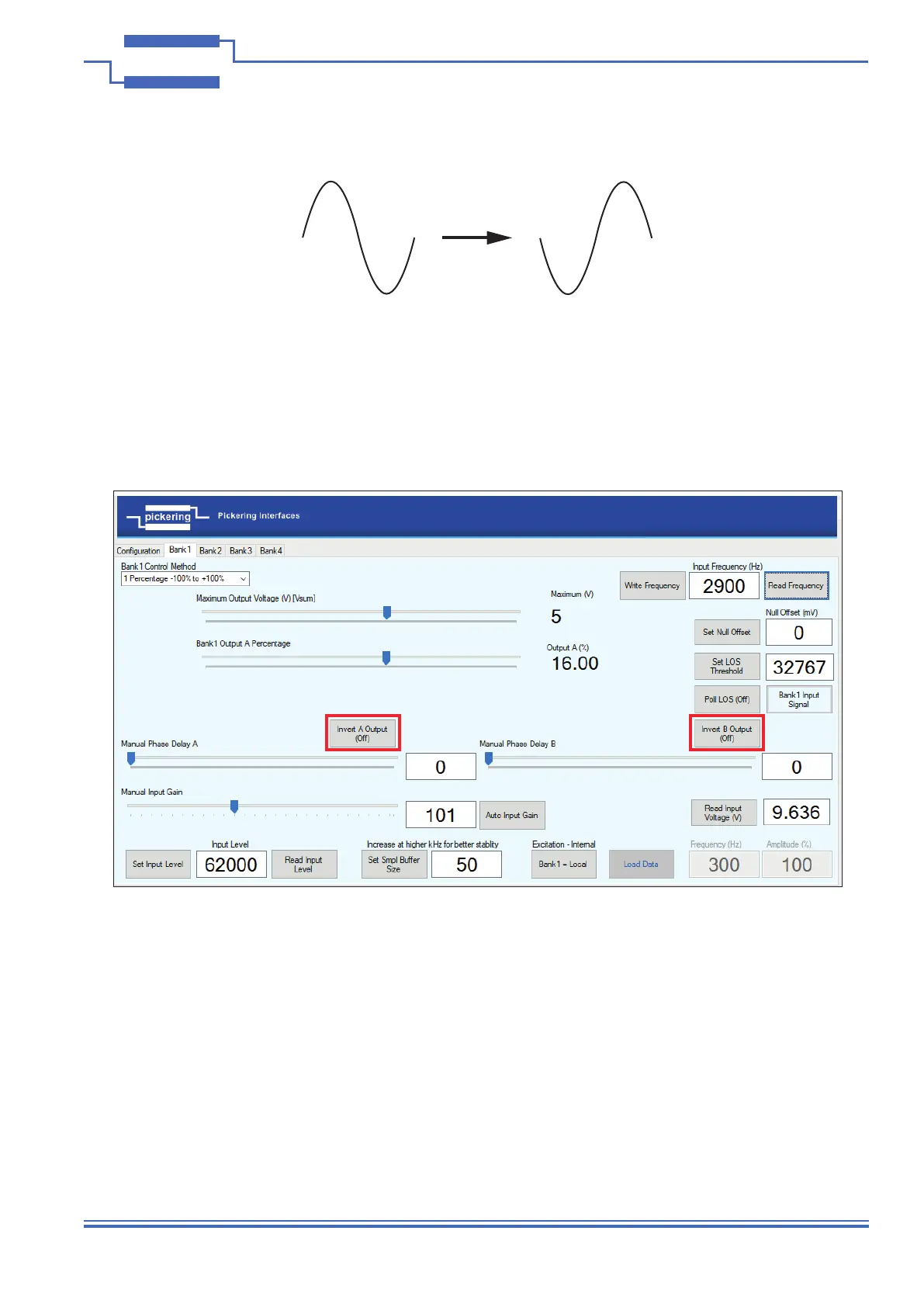

Figure 4.11 - Invert Output Feature for A and B Outputs
