PILLAR MACHINE H49 - Page 12

PROGRAMMING
Connued

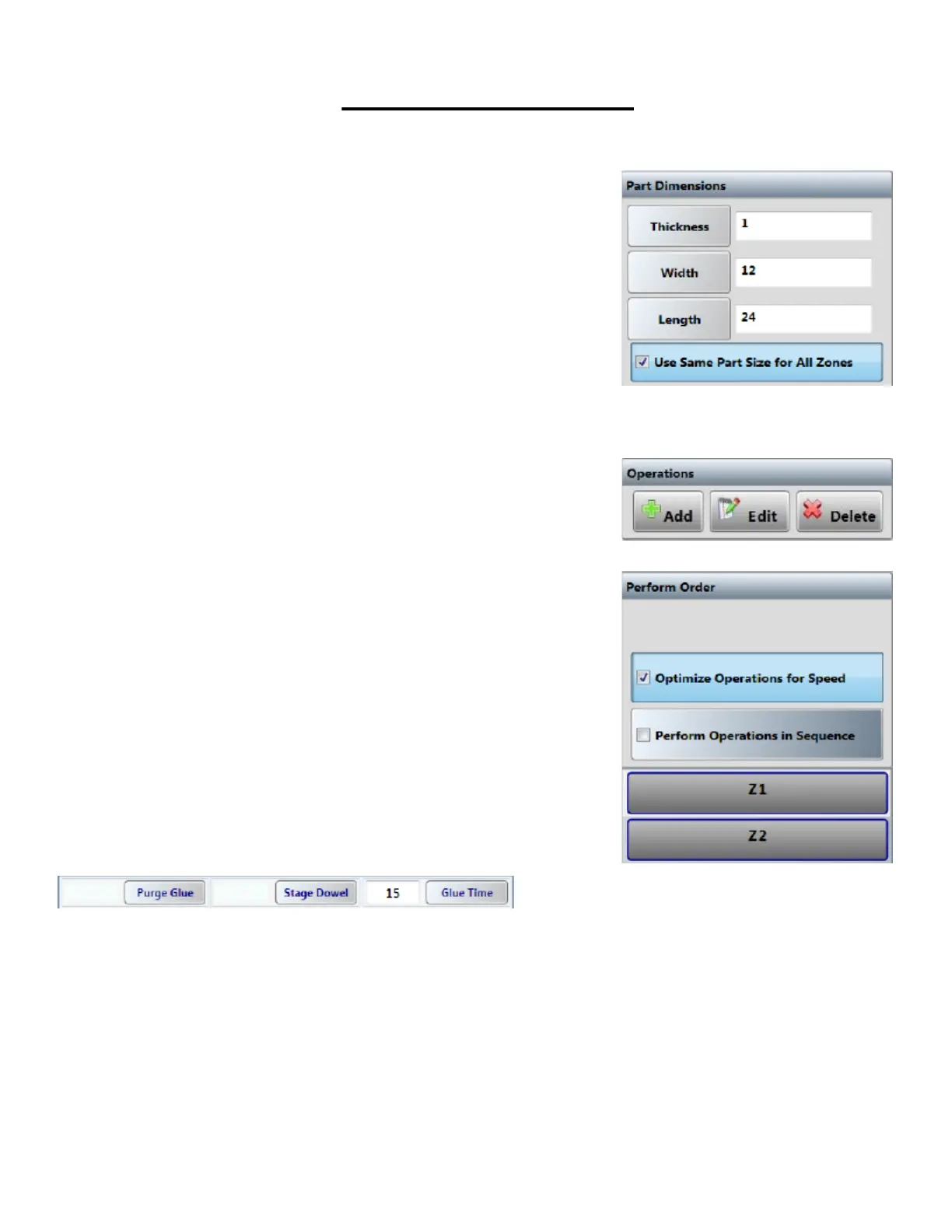

Part Dimensions: This is where the operator will enter the di-
mensions for the part that is being programmed. Part length is
mainly used to describe how many clamps are used per
workzone, as well as dene the graphic image that represents
your part.
Operaons: This is where the operator will Add, Edit and Delete
the operaons for the program being designed.
Opmize Ops for Speed: This will opmize the operaons to be
performed as fast as the machine can see possible.
Perform Ops in Sequence: This will tell the machine to perform
the operaons in the sequence in which the operator inputs
them. Not applicable to standard doweling machines.
Purge Glue Buon: This buon will purge the glue valve.
(used to drain glue system)
Glue Time: The Glue Time is used to set the amount of me the
glue valve stays open. Thus delivering more or less glue/water.
(measured in Milliseconds.)
