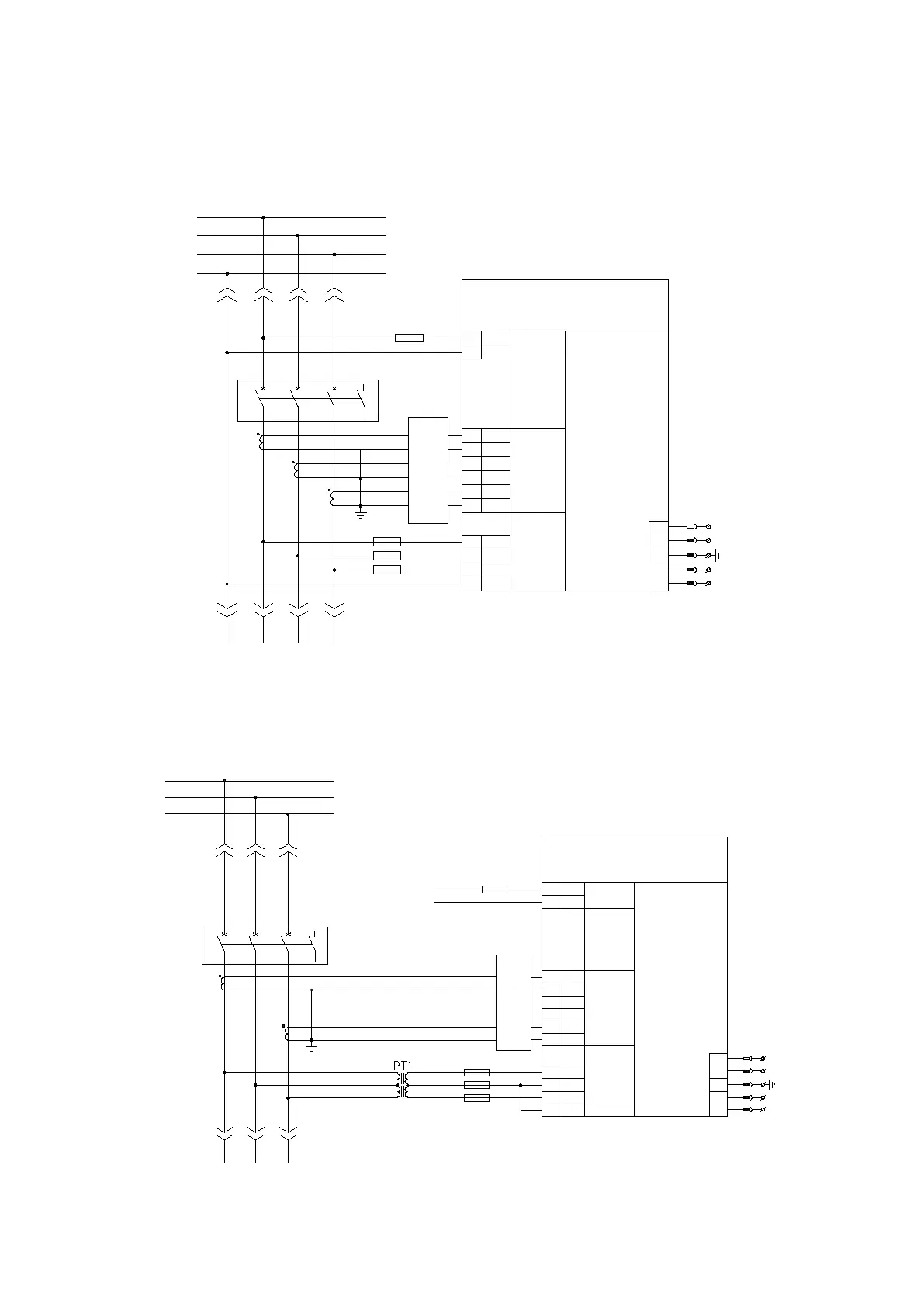

Typical wiring diagram of EGO700III
：
EGO700-CTC Low voltage three-phase four wire star wiring diagram
4
5
6
7
8
9
NC
TA1
TA2
TA3
485A+
Power
supply
Current
signal
FU1
L1
L2
L3
N
N
L
IA-
IA+
IB-
IB+
IC-
IC+
EGO700
Voltage
signal
VB
VA
VN
VC
QF1
K1
FU2
FU3
FU4
485B-
B-
B-
A+
A+
CTC
communication
Typical EGO700 wiring diagram IV
：
EGO700-CTC High voltage three-phase three-wire (2PT2CT) angular wiring diagram
TA1
TA3
FU1/5A
L1
L2
L3
QF1
K1
FU2、FU3、FU4/5A
L/+
N/-
AC 10KV
EGO700
4
5
6
7
8
9
Power
supply
Current
signal
N
L
IA-
IA+
IB-
IB+
IC-
IC+
Voltage
signal
VB
VA
VN
VC
NC
485A+
485B-
B-
B-
A+
A+
CTC
communication
