Chapter 9 Appendix

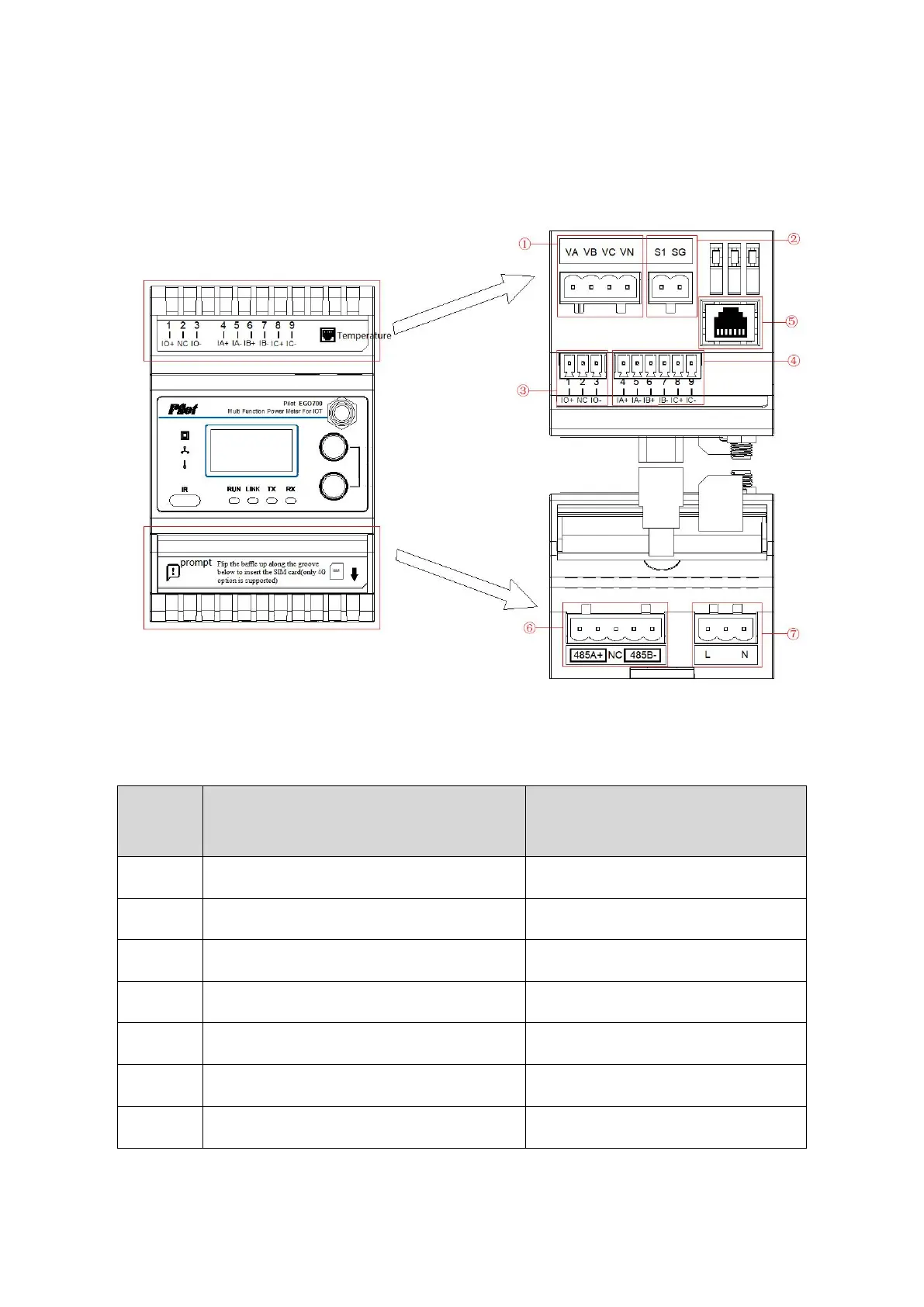

9.1 Terminal diagram
9.2 Terminal definition table
SN.
Terminals number
Terminal definition
1
VA，VB，VC，VN
Voltage terminal
2
S1，SG
Switching input terminal
3
I0+
，
NC
，
I0-
Residual current terminal
4
IA+，IA-，IB+，IB-，IC+，IC-
Current terminal
5
RJ45
Temperature of the terminal
6
485A+
，
NC
，
485B-
Communication terminal
7
L，N
Power terminal
