4.4 Setting parameter description
■ Meter programming
EGO700 can be programmed with the following
parameters：
Manual phase sequence
adjustment
Automatic phase
sequence adjustment
Meter programming needs to verify the password, the
initial password is 01.

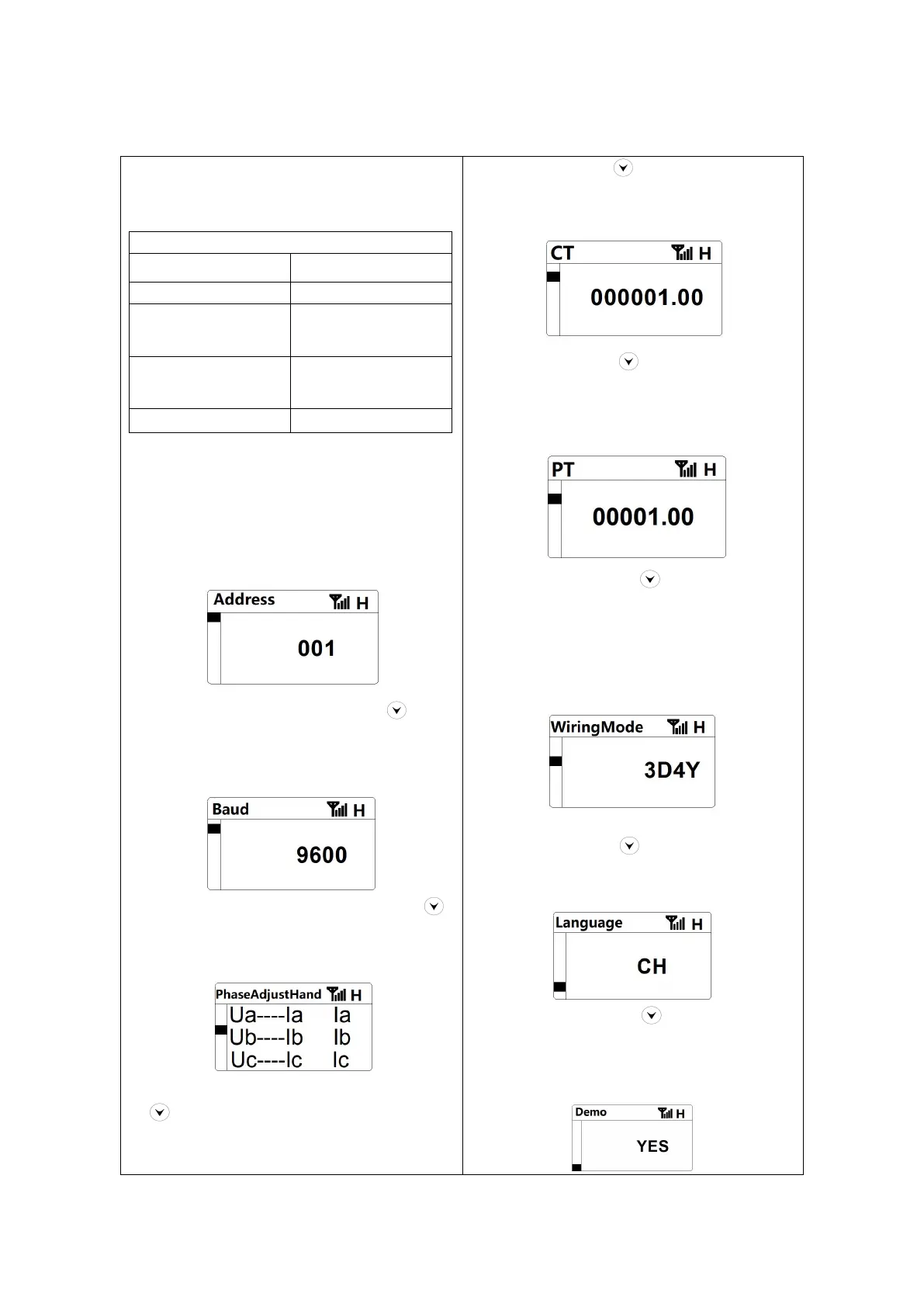

1. Meter communication address: Press the combination
key to enter the interface of meter communication
address, as shown in the figure below. Range of
mailing address setting: 1~247
.
2. Communication Baud rate: press the button to enter
the interface of communication Baud rate, as shown in
the figure below. Baud rate can be set: 1200,2400,
4800, 9600, 19200, 38400, 57600.
6. Manual phase sequence adjustment: press the key to
enter the manual phase sequence adjustment interface, as
shown in the figure below
.
7.Automatic phase sequence adjustment: press the
key to enter the interface of automatic phase sequence
adjustment, as shown in the figure below. Select "YES" to
indicate that the phase sequence will be automatically
3. CT ratio: Press the key to enter the CT ratio
interface, as shown in the figure below. Set according
to field CT. CT ratio setting range: 1.00~100000.00
.
4. PT ratio: Press the key to enter the INTERFACE
of PT ratio, as shown in the figure below. Set
according to site PT. Setting range of PT ratio:
1.00~10000.00.
5. Wiring mode: Press the key to enter the wiring
mode interface, as shown in the figure below.
According to the field connection mode, the
connection mode can be set as 3D4Y(three phase four
wire), 3D3Y(three phase three wire).
9 Language: Press the key to enter the setting interface
of power clearing, as shown in the figure below. Select
CH for Chinese display and EN for English display.
10.Demo mode: Press the key to enter the demo mode
setting interface, as shown in the figure below. Select
"YES" to turn demo mode on and "NO" to turn demo
mode off.
