terminals.
The device can realize temperature alarm function by setting out-of-limit
parameters. Can be set through the upper computer.

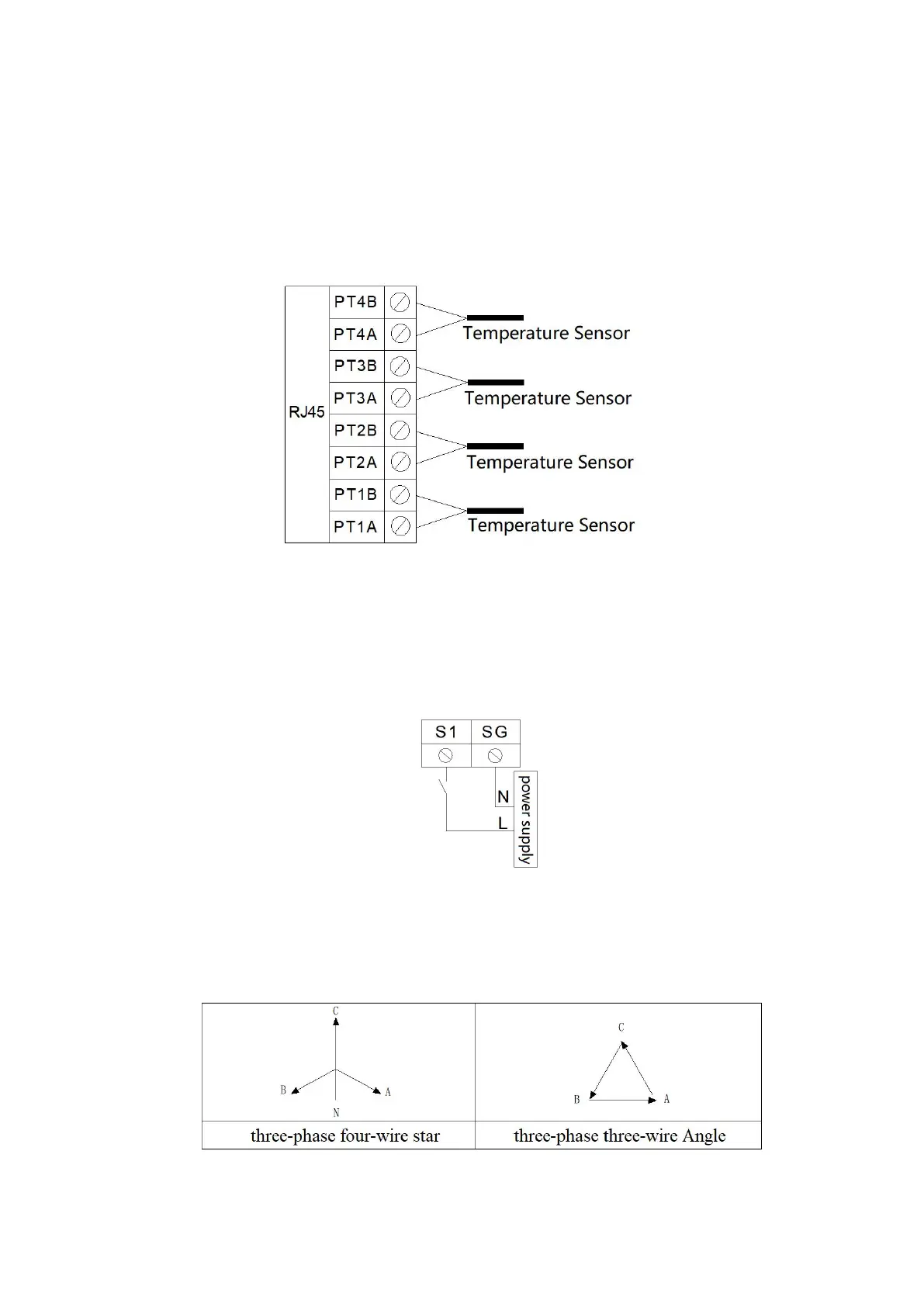

When connected with the temperature detection head, an alarm signal will be
generated, which is not caused by the device fault but by the live wiring operation.
The alarm signal can be manually retraced. Avoid live connection operation of the
device.
9.4.4 Switch-volume connection
The device supports 1-way switch input, terminal labeled S1, SG, and is used to
detect the location signal of the combiner and brake , and other states of the external
contact. The corresponding status of DI is displayed on the panel.
The wiring diagram of external active node is as follows:
9.5 Typical wiring diagram
EGO700 supports a variety of measurement wiring modes, star and Angle
wiring.
