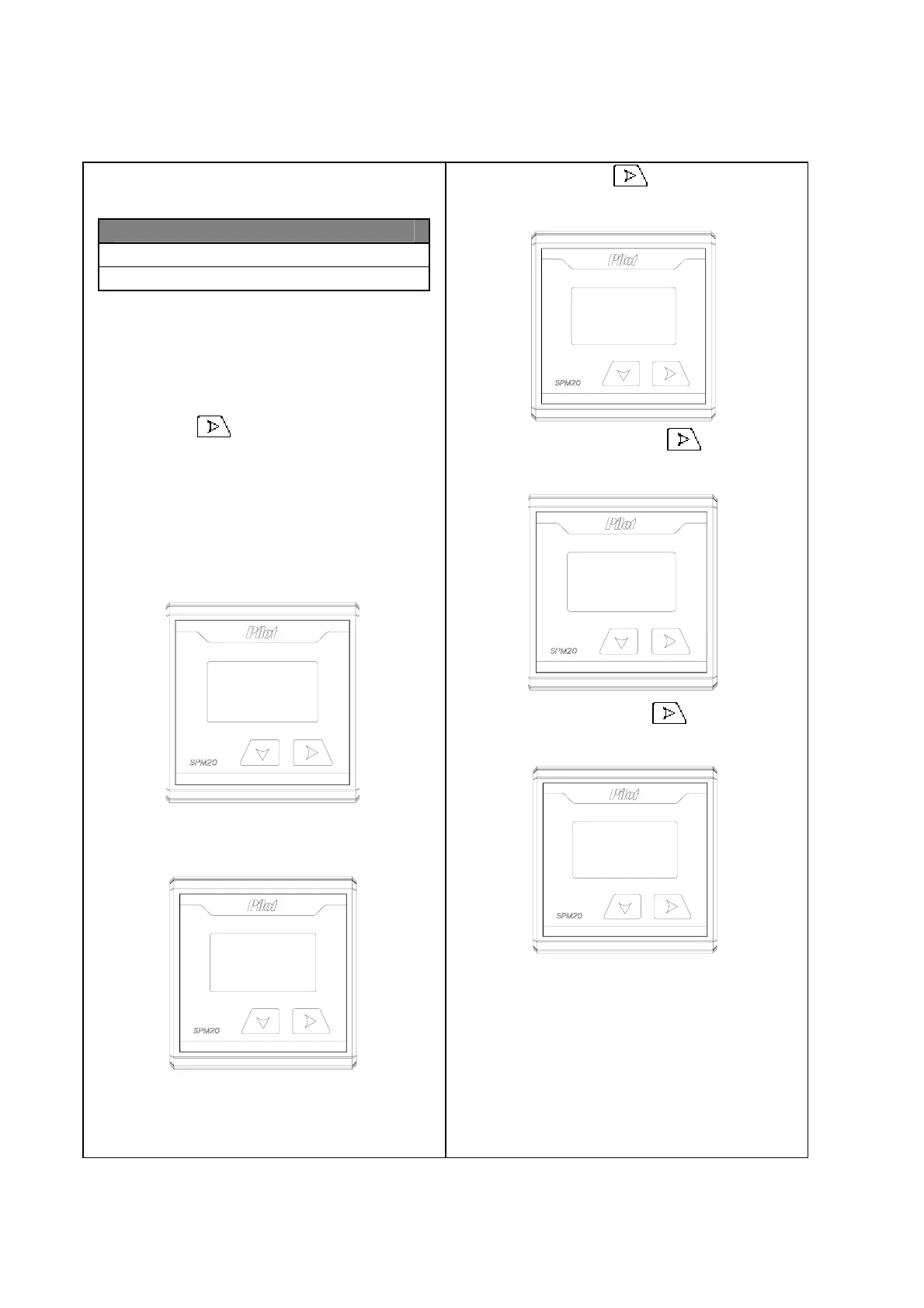

4.5 Data setting
Meter program
SPM20 can set data program
Program item
CT module set
Controller communication
The different meter configured has the
different items, or nothing. So the
user should operate by according to
the meter configuration
1. Controller communication:
press
to enter into the
communication interface, to set
the communication address and
baud rate as follows, address
range: 1~247
Baud rate range4800 9600
19200
ID 001
baud 9600
return
2. CT module setadd CTremove
CTclear all CTas follows
add
remove
empty
return
1 Add CT: press to be in ”add” as
follows: add CT 1.
add
1 - A
confirm return
2 Remove a CT: press to be
in ”remove” as follows: remove CT 1
remove
1 - A
confirm return
3 Clear all CT: Press to be
in ”empty” as follows: clear all CTs
remove all
yes
no
