6
Stabilizer/Elevator Assembly

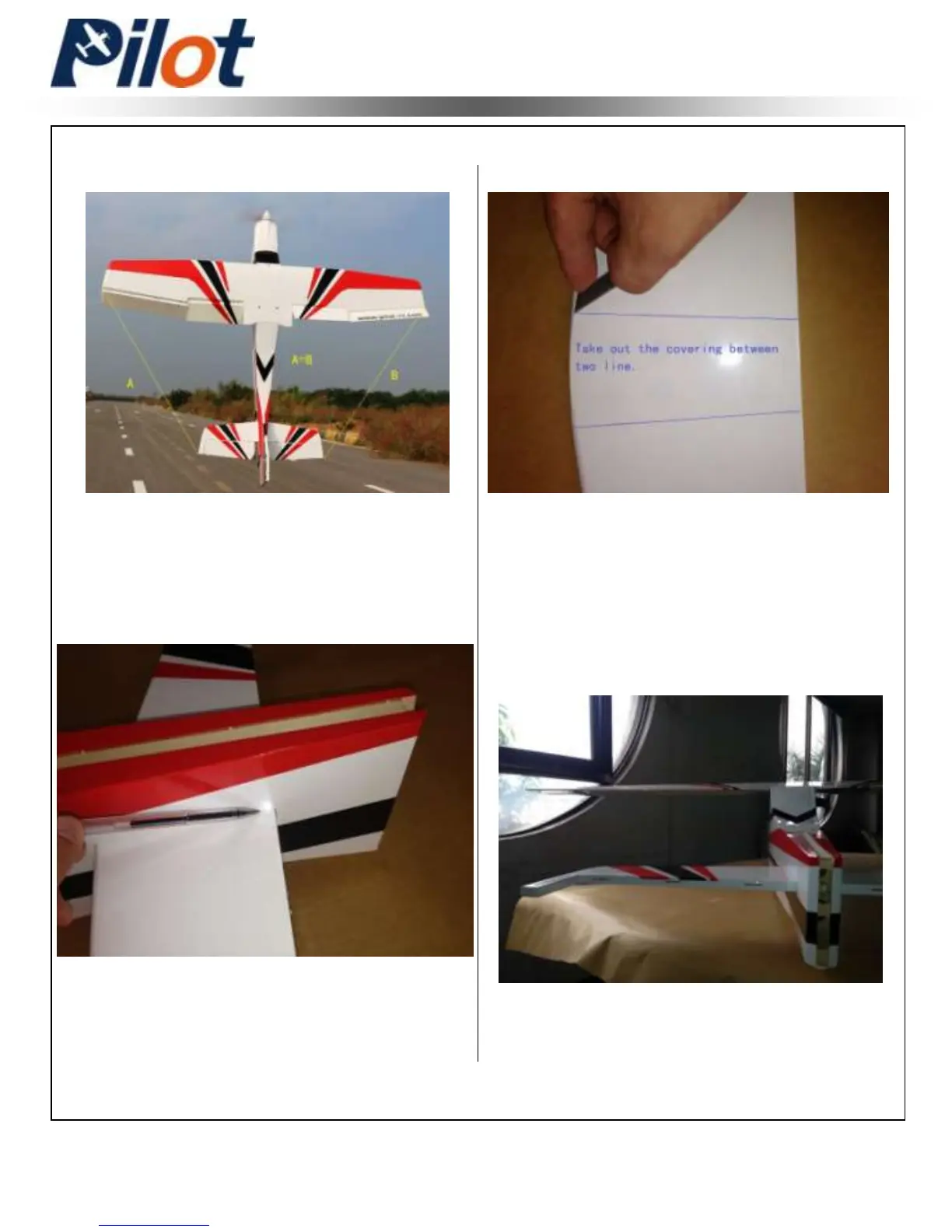

5. Measure both left and right side
as the photo shows. Be sure length
A=B.
6. Once the stab is centered, draw a
line on both side of the stab as shown,
both top and bottom of the stab.
7. Using a modeling knife, cut
along the marked lines and
remove the covering. Repeat
on the bottom of the stab.
8. Apply 30-minute epoxy to
both the stab and fuselage
sections and slide the stab into
position.
To Next Page
