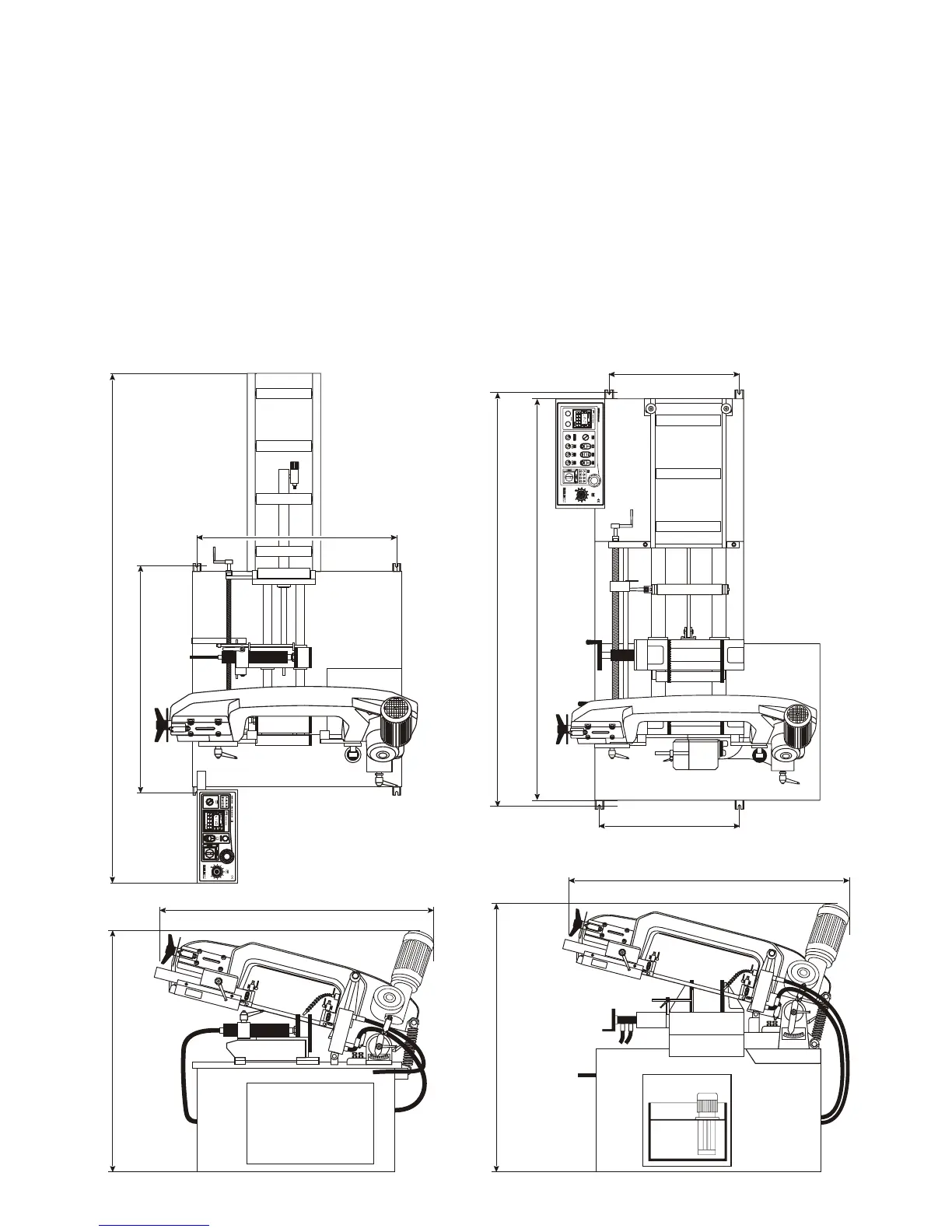

Pilous ARG 220 D - 2 Installation; Space Requirements

1370 mm
1400 mm
710 mm
650 mm
2100 mm
2070 mm
ARG 250 Aut. 1670 mm, ARG 300 Aut. 1850 mm
ARG 250 Aut. 1850 mm, ARG 300 Aut. 1800 mm
2. Installation
2.1. Space Requirements
The machine may be installed on any suitable even floor in the hall (on a concrete surface). Observe the permissible floor load. The
machine should be aligned by the 4 bolts provided in the corners of the base.
Recommendations / conditions:
• Allow for sufficient space for feeding and removing the workpieces and the machine maintenance - the operator's working area
should be at least 1 m around the machine and 0,5 m around the roller conveyor.
• Install roller conveyors and/or a case for cut pieces for a safe handling of workpieces and to prevent accidents due to falling cut
pieces.
• Install a lift mechanism for heavy workpieces.
• Provide good workplace lighting.
ARG 220 Automat ARG 250 Automat, ARG 300 Automat
2600 mm
1040 mm
915 mm915 mm
