Installation
Operating Manual PNOZ m B0
1002660-EN-02
15

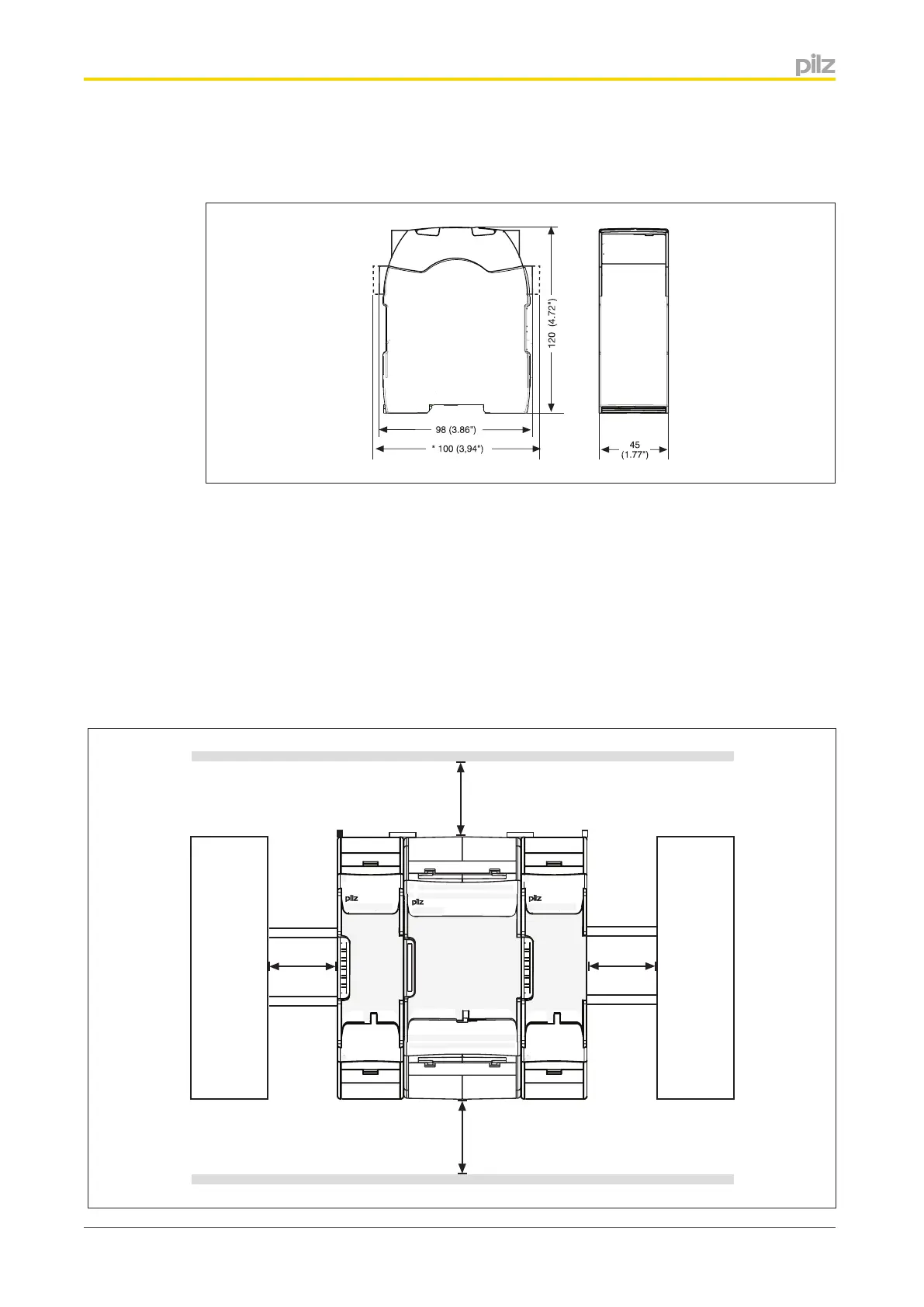

Dimensions
*with spring-loaded terminals
Mounting distances
With control cabinet installation it is essential to maintain a certain distance from the top
and bottom, as well as to other heat-producing devices (see diagram). The values stated
for the mounting distances are minimum specifications.
The ambient temperature of the product in the control cabinet must not exceed the figure
stated in the technical details, otherwise air conditioning will be required.
Mounting distances
:
5.2.1
5.2.2
