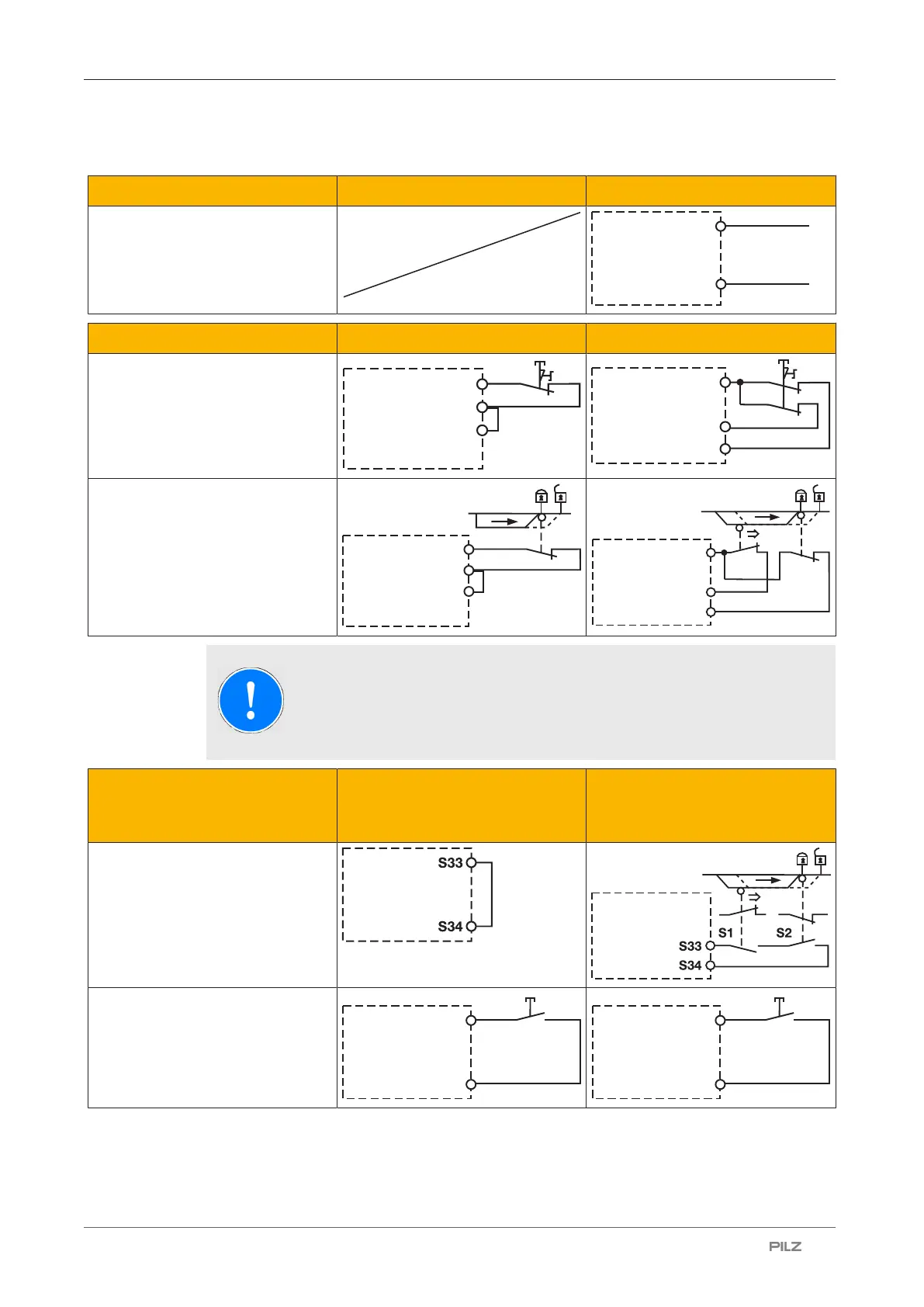

Preparing for operation
Supply voltage AC DC
A1
A2
L+
L-
Input circuit Single-channel Dual-channel
E-STOP
without detection of shorts across
contacts
S1
S11
S22
S12
S1
S11
S12
S22
Safety gate
without detection of shorts across
contacts
S1
S11
S22
S12
S1
S2
S11
S12
S22
NOTICE
With single-channel wiring the safety level of your machine/plant may be
lower than the safety level of the unit (see Safety characteristic data).
Start circuit E-STOP wiring
(single-channel, dual-channel)
Safety gate (single-channel)
Safety gate (dual-channel)
Automatic start
Manual start
S33
S34
S3
S33
S34
S3
