8 Programming the Hunter-Pro series with an LED keypad

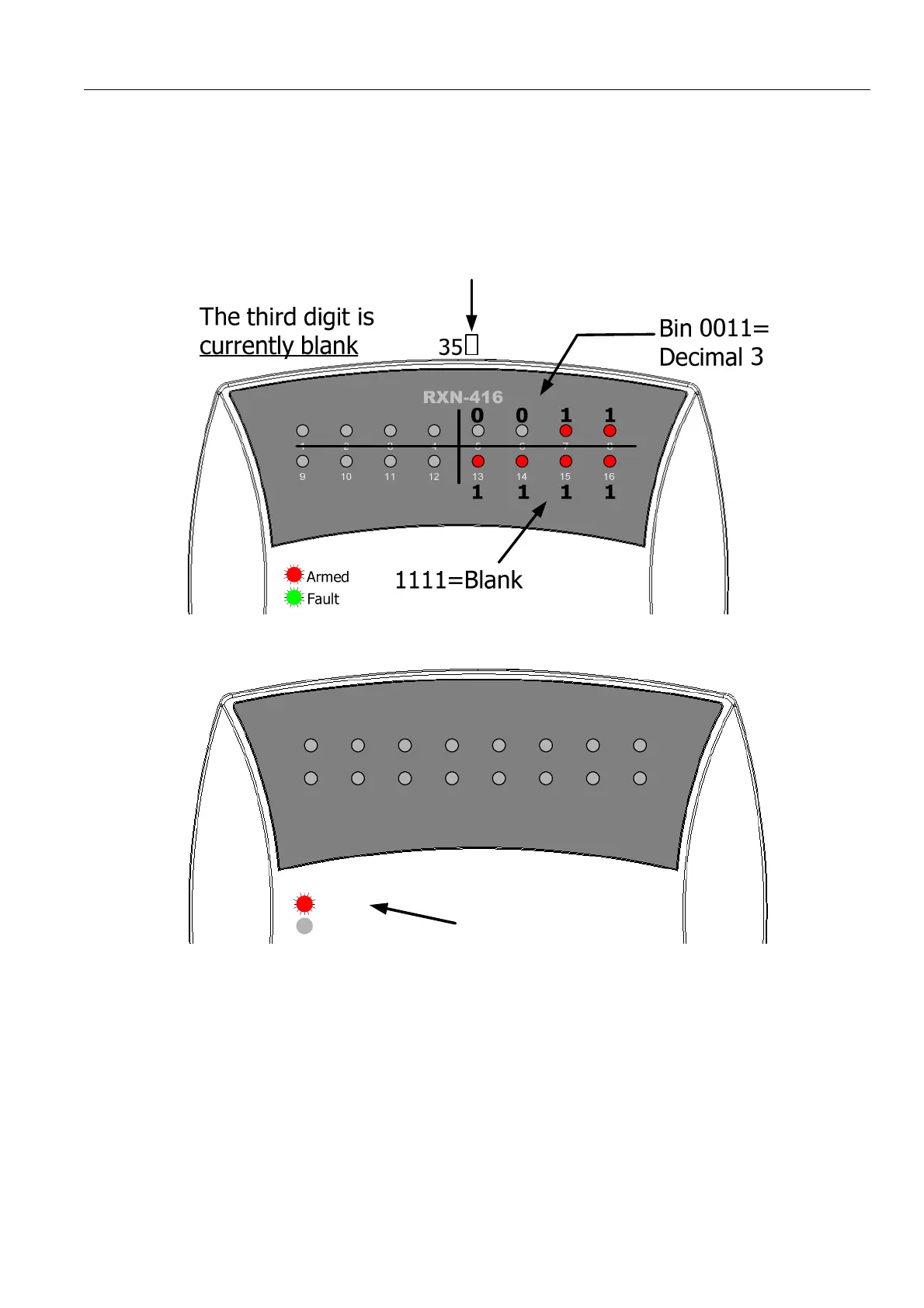

5. Press 5, the second digit of required value of 35. Again, the ‘cursor’ advances to the
next digit which is blank at the moment. Differently from the LCD keypad, the data
fields in the LED keypad are fully displayed, even if only part of the field is in use.
In this example the requested value is a two digit number (35) but the ‘Entry delay
time’ field contains 3 digits and so, the 3
rd
digit (which is blank) is displayed too.
6. Press ENTR to save the new value and return to address programming mode.
12345678
9 10111213141516
RXN-416
Armed
Fault
Programming mode:
- Red Armed LED flashes fast
- Green Fault LED is off
