Programming the Hunter-Pro series with a LED keypad 9
3.4 Set zone #3 to be a 24 Hrs zone

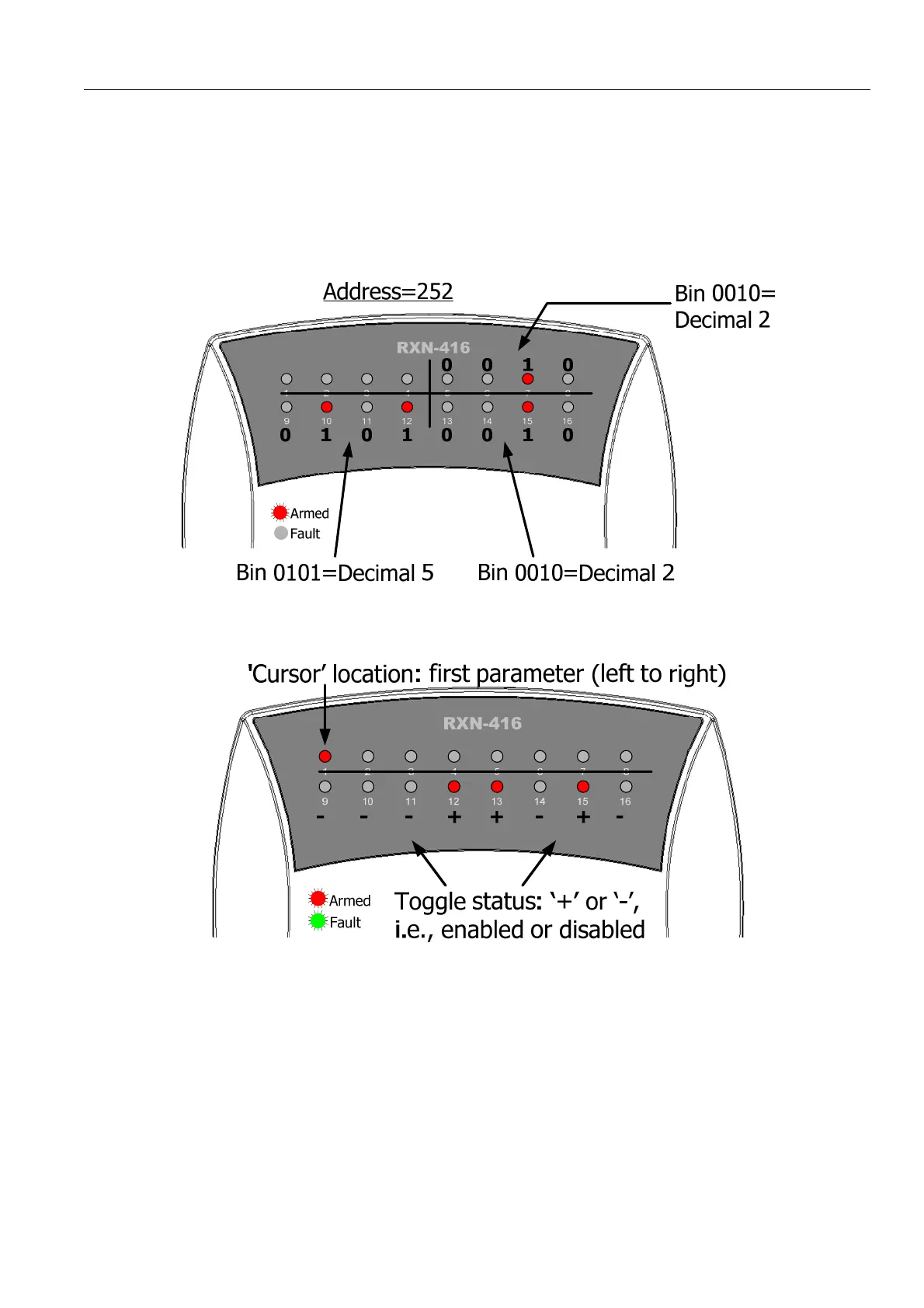

1. Again, start by looking in the parameters address table on chapter 4. Zone #3
characteristics menu (byte 1) has the address of 252. Enter the installer code and
press 252. The keypad will enter into programming mode and display the address:
2. Press ENTR. The keypad displays zone #3 current programmed characteristics. If
the menu contains more than 8 parameters, see Figure 3 on page 4.
