Pioneer AVH-P1400DVD User Manual

Section
•

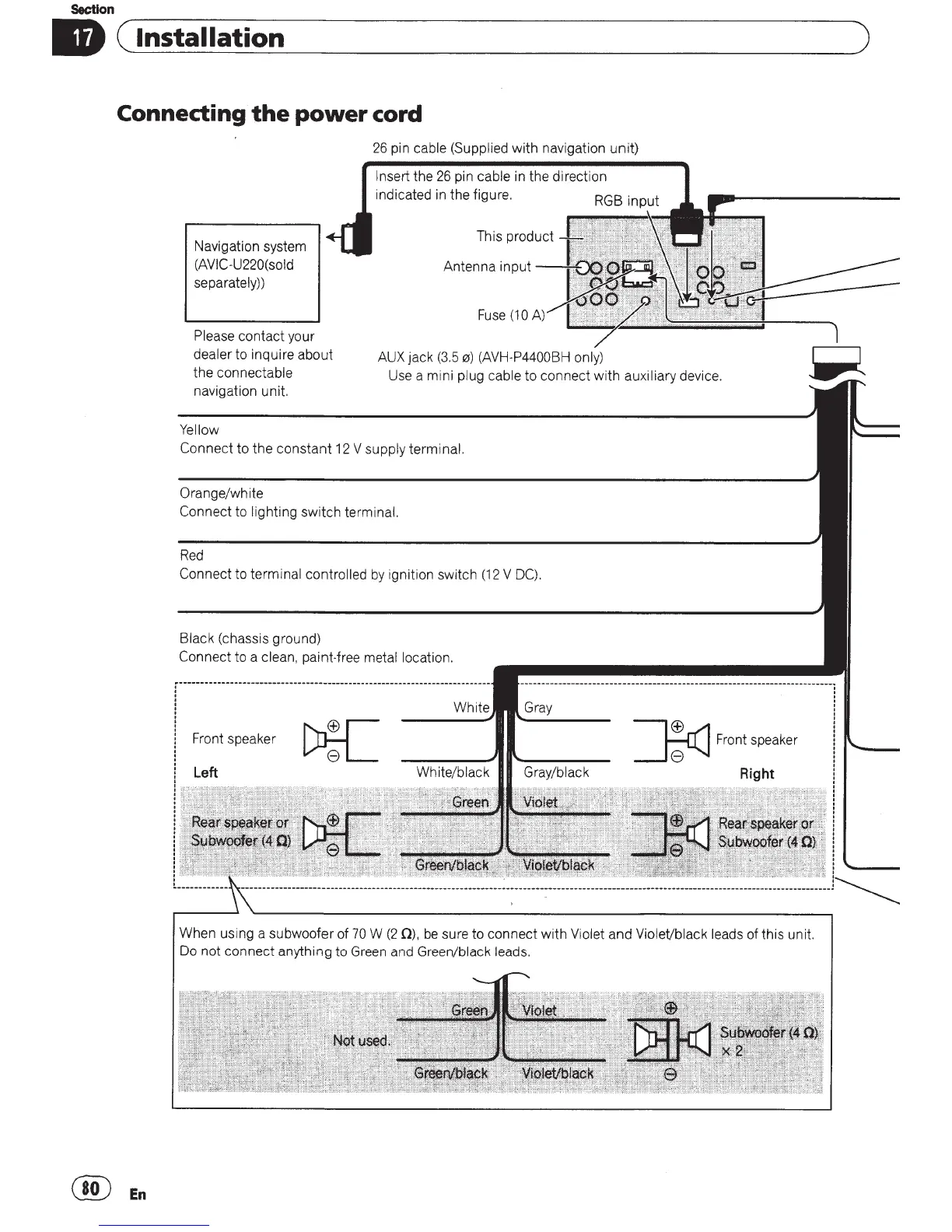

( Installation
Conneding
the
power
cord
En
Navigation system
(AVIC-U220(sold
separately))
26
pin
cable (Supplied
with navigation unit)
Insert the
26
pin
cable
in the direction
indicated
in
the figure.
RGB
input
This product
Antenna input
Fuse
(
10
AUX
jack
(3.5
0)
(AVH-P4400BH only)
Please
contact your
dealer to inquire about
the
connectable
navigation unit.
Use
a mini
plug cable
to connect with
au
xiliary
device.
Yellow
Connect
to the constant
12
V supply terminal.
Orange/white
Connect to lighting switch
terminal.
Red
Connect
to
terminal controlled
by
ignition switch
(12
V
DC).
Black
(chassis ground)
Connect
to a clean,
paint-free
metal location.
Front speaker
-
Front speaker
Me
Right
When using a subwoofer of
70
W
(2
0),
be
sure to connect with
Violet
and Violet/black leads
of this unit.
Do
not connect anything to
Green
and
Green/black leads.
)

Pioneer AVH-P1400DVD Specifications

General

Screen Size	5.8 inches
Preamp Outputs	3 Pairs
Peak Power Output	50 watts
CD/DVD Playback	Yes
Bluetooth	No
USB Input	Yes
Auxiliary Input	Yes
Built-in Amplifier	Yes
Touchscreen	Yes
Preamp Voltage	2 volts
Number of Channels	4
Subwoofer Output	Yes
Rear View Camera Input	Yes
USB Input Location	Rear
iPod Compatibility	Yes
Display	LCD
AM/FM Tuner	Yes
Video Input	Yes
Video Output	Yes
iPod Control	Yes
Remote Control	Yes
RMS Power Output	14 watts
Power Output	50 watts x 4 channels
