Pioneer GM-5400T Service Manual

GM-5400T/XJ/UC
16
1234
1234
C
D
F
A
B
E

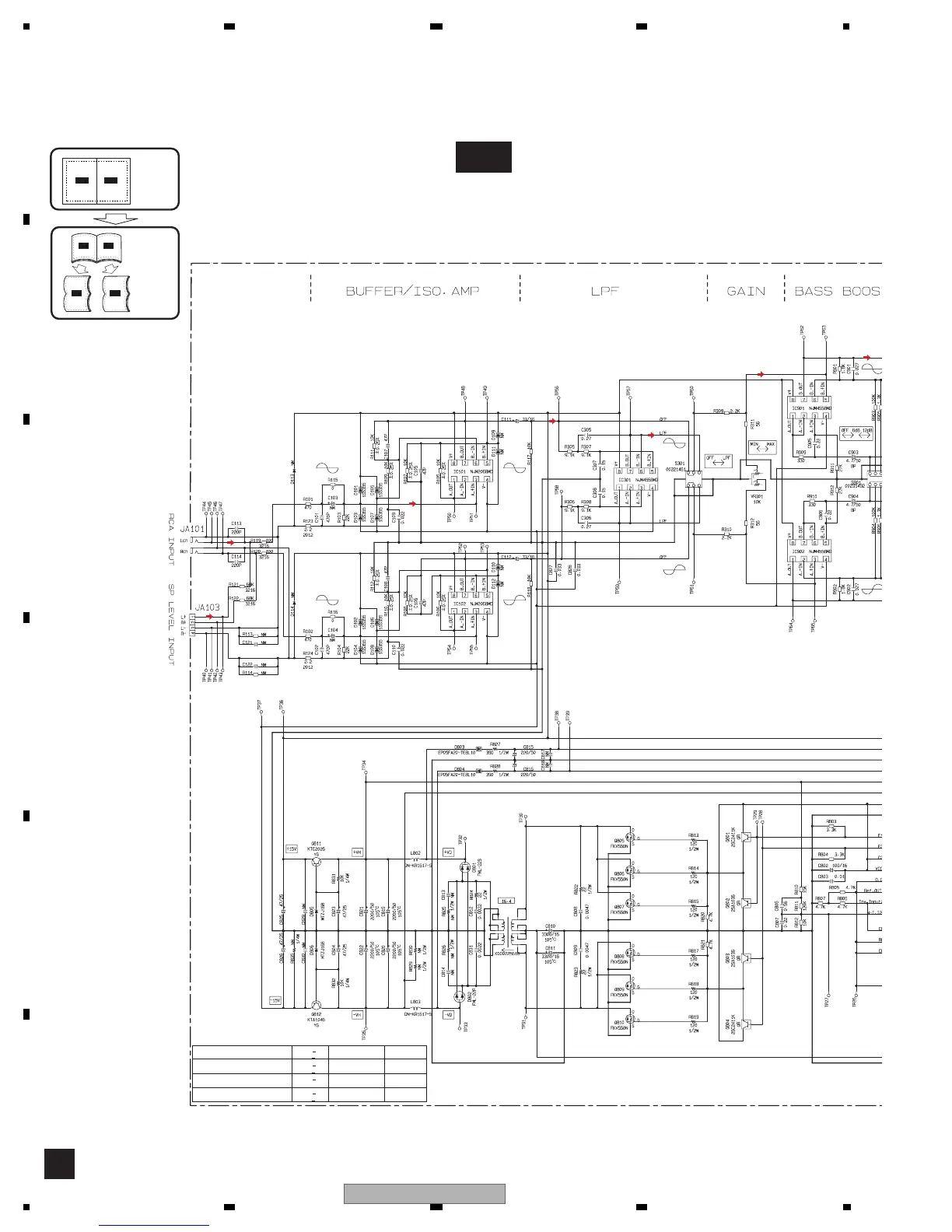

10. SCHEMATIC DIAGRAM
10.1 AMP UNIT(GUIDE PAGE)
A
A-a
A-a A-b
A-a
A-b
A-b
A-a
Large size
SCH diagram
Guide page
Detailed page
Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or
"ELECTRICAL PARTS LIST".
For resistors and capacitors in the circuit diagrams, their resistance values or
capacitance values are expressed in codes:
Ex. *Resistors
Code Practical value
123 12 k ohms
103 10 k ohms
*Capacitors
Code Practical value
103 0.01 uF
101/10 100 uF/10 V
D-D converter output voltage (VH)-1 + 36.5 + 3 V Sp out : 1 kHz, 1 W
- 36.5 + 3 V
D-D converter output voltage (VD)-1 + 44.5 + 3 V Sp out : 1 kHz, 1 W
- 44.5 + 3 V
D-D converter output voltage (VH)-2 + 36.5 + 5 V Rg=1 kohm Referred value
- 39.5 + 5 V
D-D converter output voltage (VD)-2 + 34.5 + 5 V Rg=1 kohm Referred value
- 36.5 + 5 V
NOTE :

Pioneer GM-5400T Specifications

General

Impedance	4 Ω
Frequency range	20 - 20000 Hz
Signal-to-Noise Ratio (SNR)	95 dB
Total Harmonic Distortion (THD)	0.03 %
Channels quantity	2 channels
Dimensions (WxDxH)	265 x 346 x 62 mm
Connectivity technology	Wired
Line-in	Yes
Product color	Black

Weight and Dimensions

Weight	3800 g
