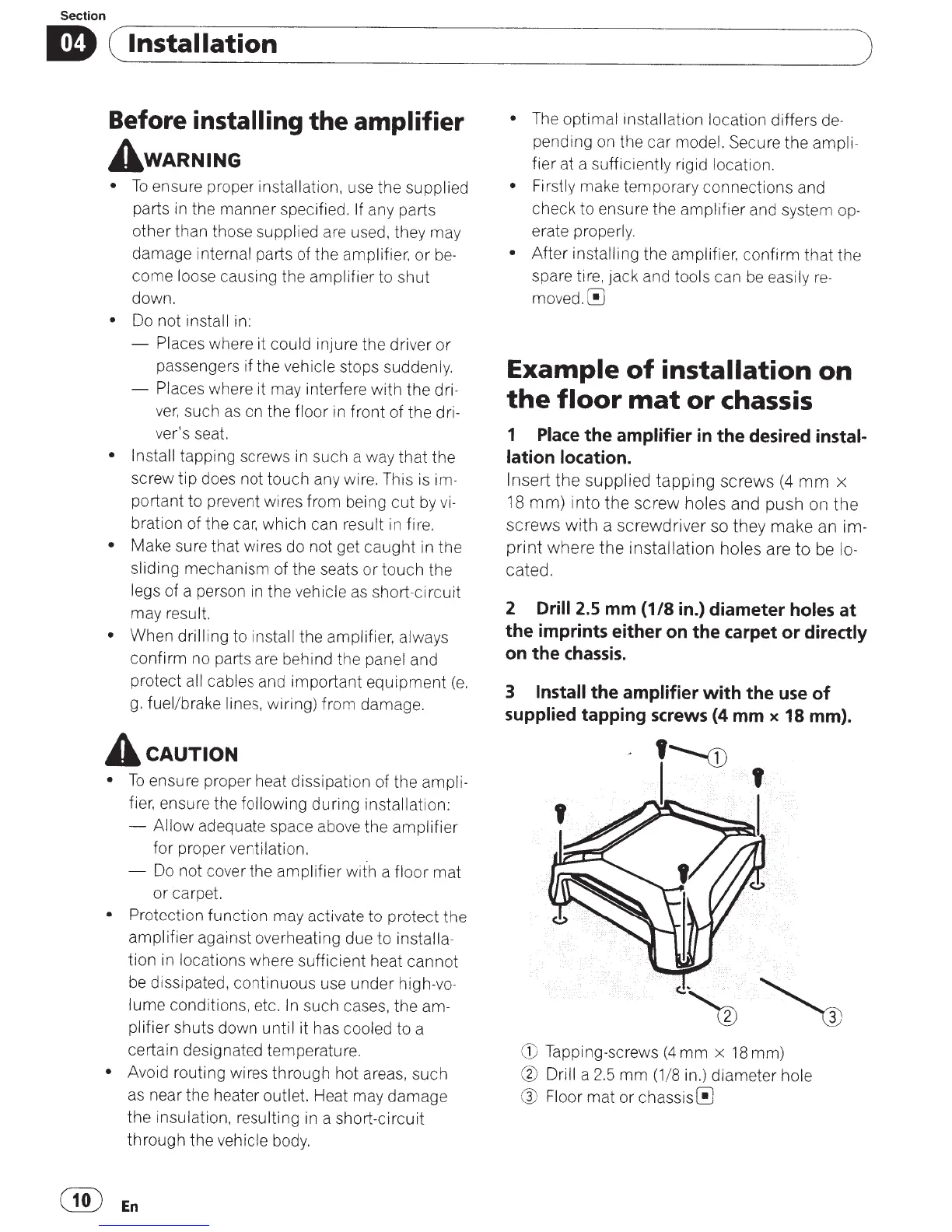

Pioneer GM-5500T User Manual

Section
m (
Installation
Before
installing the amplifier
A
wARNING
•
To
ensure proper installation, use the supplied
parts in the manner specified.
If
any parts
other than those supplied are used, they may
damage internal parts of the amplifier.
or
be-
come loose causing the amplifier to shut
down.
•
Do
not install
in:
- Places where it could injure the driver
or
passengers if the vehicle stops suddenly.
- Places where it may interfere with the dri-
ver,
such
as
on the floor
in
front of the dri-
ver's seat.
• Install
tapping screws in such a way that the
screw tip does not touch any wire. This
is
im-
portant to prevent wires from being
cut
by
vi-
bration of the car, which can result in fire.
• Make sure that wires do not get caught in the
sliding mechanism of the seats or touch the
legs of a person in the vehicle
as
short-circuit
may result.
• When drilling to install the amplifier, always
confirm no parts are behind the panel and
protect all cables and important equipment
(e.
g.
fuel/brake
lines,
wiring) from damage.
A
cAUTION
•
To
ensure proper heat dissipation of the ampli-
fier, ensure the following during installation:
- Allow adequate space above the amplifier
for proper ventilation.
-
Do
not cover the amplifier with a floor mat
or
carpet.
•
Protection function may activate to protect the
amplifier against overheating due to installa-
tion in locations where sufficient heat cannot
be
dissipated, continuous use under high-vo-
lume conditions, etc.
In
such cases, the am-
plifier shuts down until it h
as
cooled to a
certain designated temperature.
•
Avoid routing wires through hot areas, such
as
near the heater outlet. Heat may damage
the insulation, resulting
in
a short-circuit
through the vehicle body.
@En
•
The
optimal installation location differs
de-
pending on the car model. Secure the ampli-
fier at a sufficiently rigid location.
)
•
Firstly make temporary connections and
check to ensure the amplifier and system op-
erate properly.
•
After installing the amplifier, confirm
that
the
spare tire, jack and tools can
be
easily re-
moved.~
Example
of
installation
on
the
floor
mat
or
chassis
1
Place
the amplifier
in
the desired
instal-
lation location.
Insert
the supplied tapping screws
(4
mm
x
18
m
m)
into the screw holes and push on the
screws with a screwdriver
so
they make an im-
print where the installation holes are to
be
lo-
cated.
2
Drill
2.5
mm
(1/8 in.) diameter
holes
at
the imprints either
on
the carpet or
directly
on
the
chassis.
3 Install
the amplifier
with
the
use
of
supplied
tapping
screws
(4 mm
x
18 mm).
CD
Tapping-screws
(4
mm
x
18
mm)
®
Drill
a
2.5
mm
(1
/8 in.) diameter hole
®
Floor mat or
chassis~

Pioneer GM-5500T Specifications

General

Amplifier class	-
Frequency range	10 - 70000 Hz
Output impedance	4 Ω
Input sensitivity	200 mV
Audio output channels	2.0 channels
Peak power per channel	820 W
Signal-to-Noise Ratio (SNR)	90 dB
Total Harmonic Distortion (THD)	0.03 %
RMS power output per channel (2 Ohm)	85 W
RMS power output per channel (4 Ohm)	60 W
Speakers connectivity type	RCA
Purpose	Car
Product color	Black, Red, Silver
Connectivity technology	Wired

Weight and Dimensions

Depth	219 mm
Width	289 mm
Height	62 mm
Weight	2000 g
