2. EXPLODED VIEWS AND PARTS LIST
NOTES:
•
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
•
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
•
Screws adjacent to mark on the product are used for disassembly.

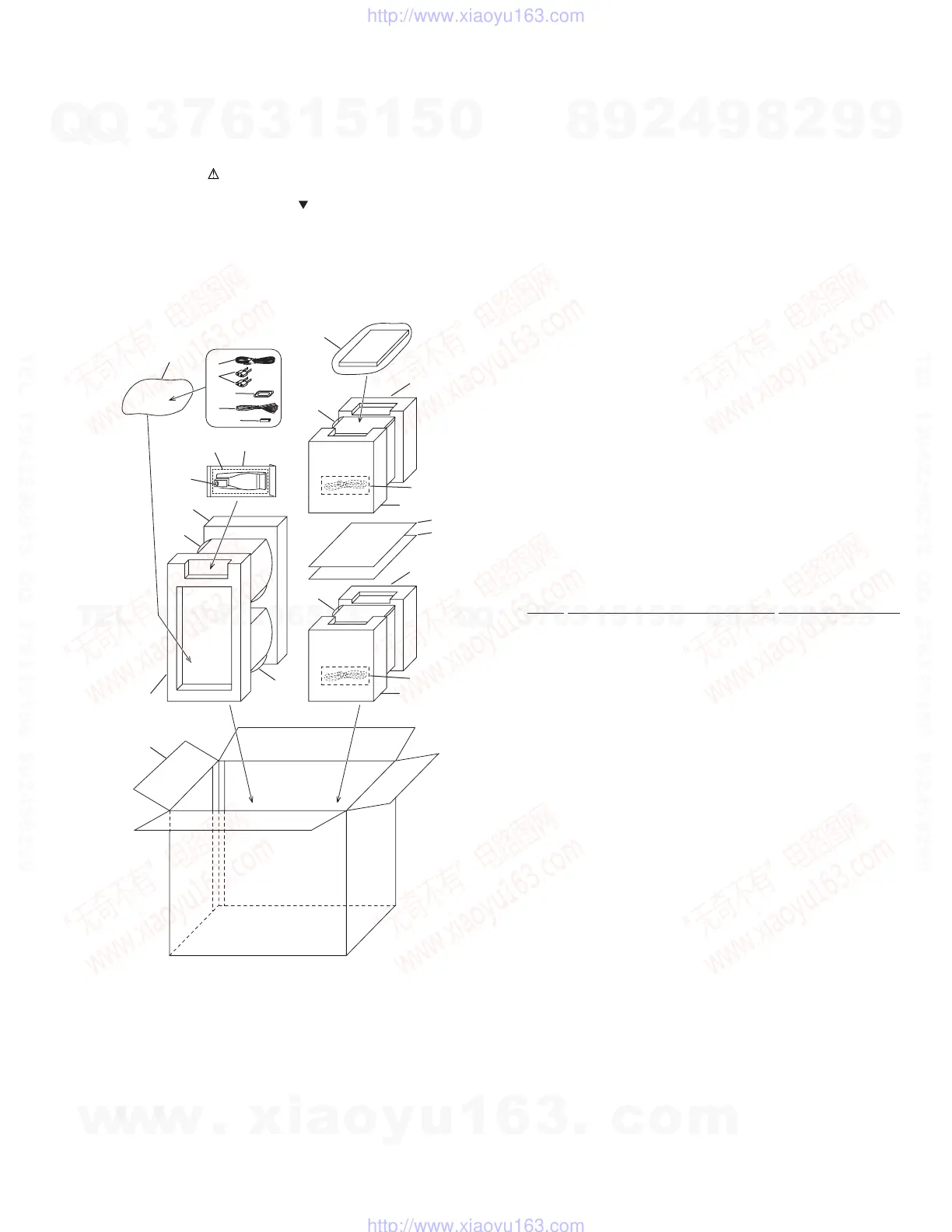

2.1 PACKING (X-LA21)
•
PACKING PARTS LIST
Mark No. Description Part No.
1 AM Loop Antenna ANT-PMT1E-AL
2 Remote Control Unit AXD7289
3 RCA Audio Cable 122003220100
NSP 4 ‘AAA’ Size R03 Batteries 130115004000
5 FM Wire Antenna 132030001001
6 Power-cord Plug Conversion Adaptor
138011722000
7 Battery Door 500RC4603070
8 Polyform Unit 800PMT190001
9 Polyfoam (Speaker) 800PMT390000
10 Poly Foam Sheet (C) SP 801999000002
11 Polythenefoam Sheet 801999000005
NSP 12 PE Polybag (AC Cord) 805032115000
NSP 13 PE Polybag (Remocon) 805035105000
NSP 14 PE Polybag (Antenna) 805070100000
NSP 15 PE Polybag (I Book) 805085140000
16 Operating Instructions 811PMT391011
(English/Spanish/Chinese)
17 Carton 813PMT393020
18 Corrugate Card 815001405213
