PDP SERVICE ASSY 428 PARTS LIST
Refer to the “• Exterior Section”
for the mounting position.

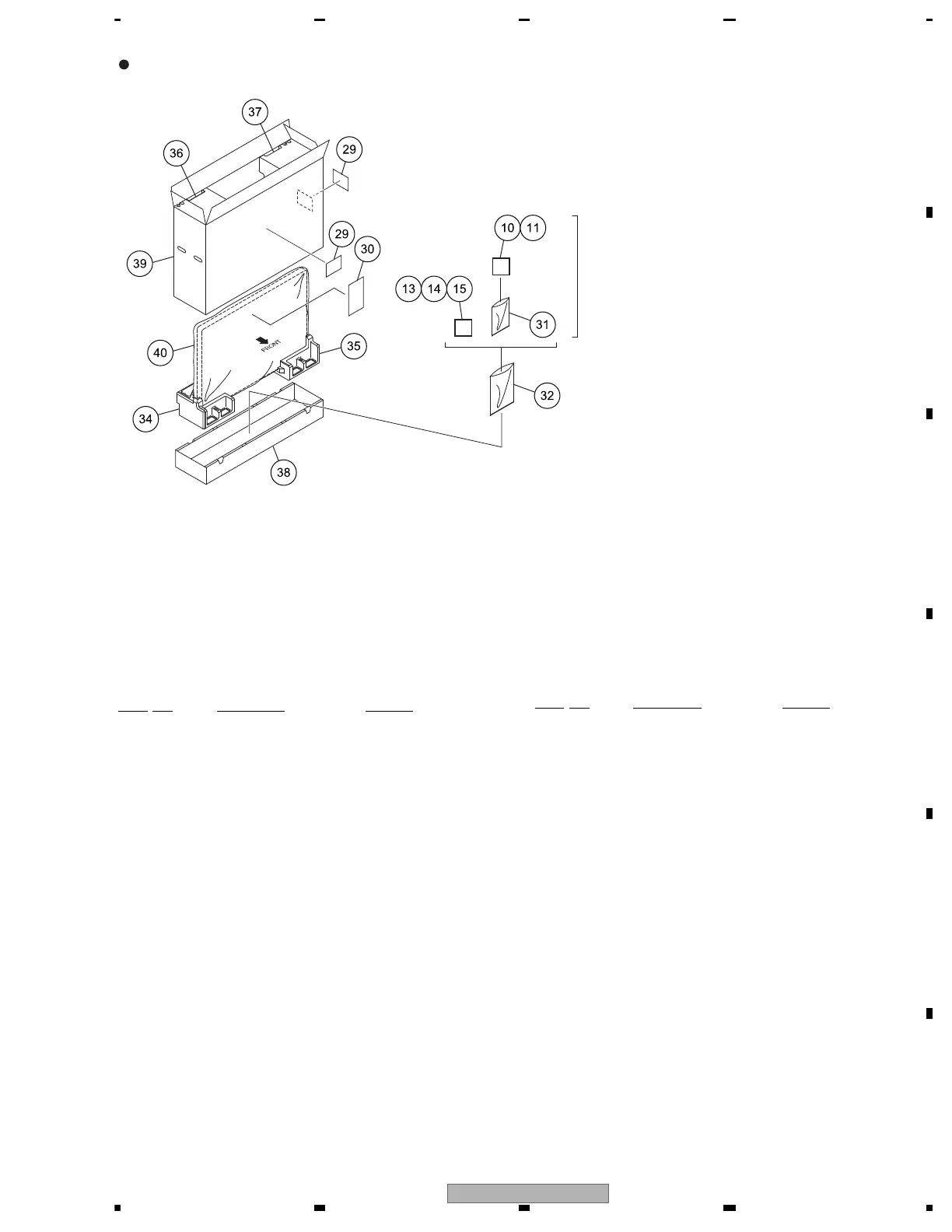

Packing Section
Mark No. Description Part No.
NSP 1 Panel Chassis (428) Assy AWU1246
2 Front Chassis VL (427) AMA1020
3 Front Chassis VR (427) AMA1021
4 Sub Frame Assy L (427) ANA1943
5 Sub Frame Assy R (427) ANA1944
6 Front Chassis H Assy (427) ANA2047
NSP 7 Speaker Stay L AND1197
NSP 8 Speaker Stay R AND1198
9 • • • • •
10 PCB Spacer AEC1941
11 Locking Wire Saddle AEC1948
12 Isolation Cushion AED1324
> 13 Power Sheet (8G) AMR3708
> 14 Y Drive Sheet (428) AMR3709
> 15 X Drive Sheet (428) AMR3710
> 16 Address Gasket (42) ANK1877
NSP 17 Front Case Assy (428 service) AMB3058
18 Rear Case (428) ANE1667
NSP 19 Drive Voltage Label ARW1097
20 Screw (3 x 40P) ABA1332
21 Screw ABA1351
22 Screw (4 x 18) ABA1353
23 Screw ABZ30P080FTC
24 Screw AMZ30P060FTB
25 Screw APZ30P080FTB
26 Screw TBZ40P080FTB
27 Inner Grip Assy AMR3434
28 Isolation Sheet AED1289
29 Caution Label AAX3031
30 Caution Sheet
(8G service) ARM1369
31 Polyethylene Bag S AHG1338
NSP 32 Catalogue Bag AHG1340
33 • • • • •
34 Pad (428 B-L) AHA2668
35 Pad (428 B-R) AHA2669
36 Pad (428 T-L) AHA2670
37 Pad (428 T-R) AHA2671
38 Under Carton (428) AHD3586
39 Upper Carton (428 service) AHD3641
40 Protect Sheet AHG1331
Mark
No. Description Part No.
