Pioneer PDP-503MXE Service Manual

PDP-503CMX, PDP-503MXE, PDA-5002
6

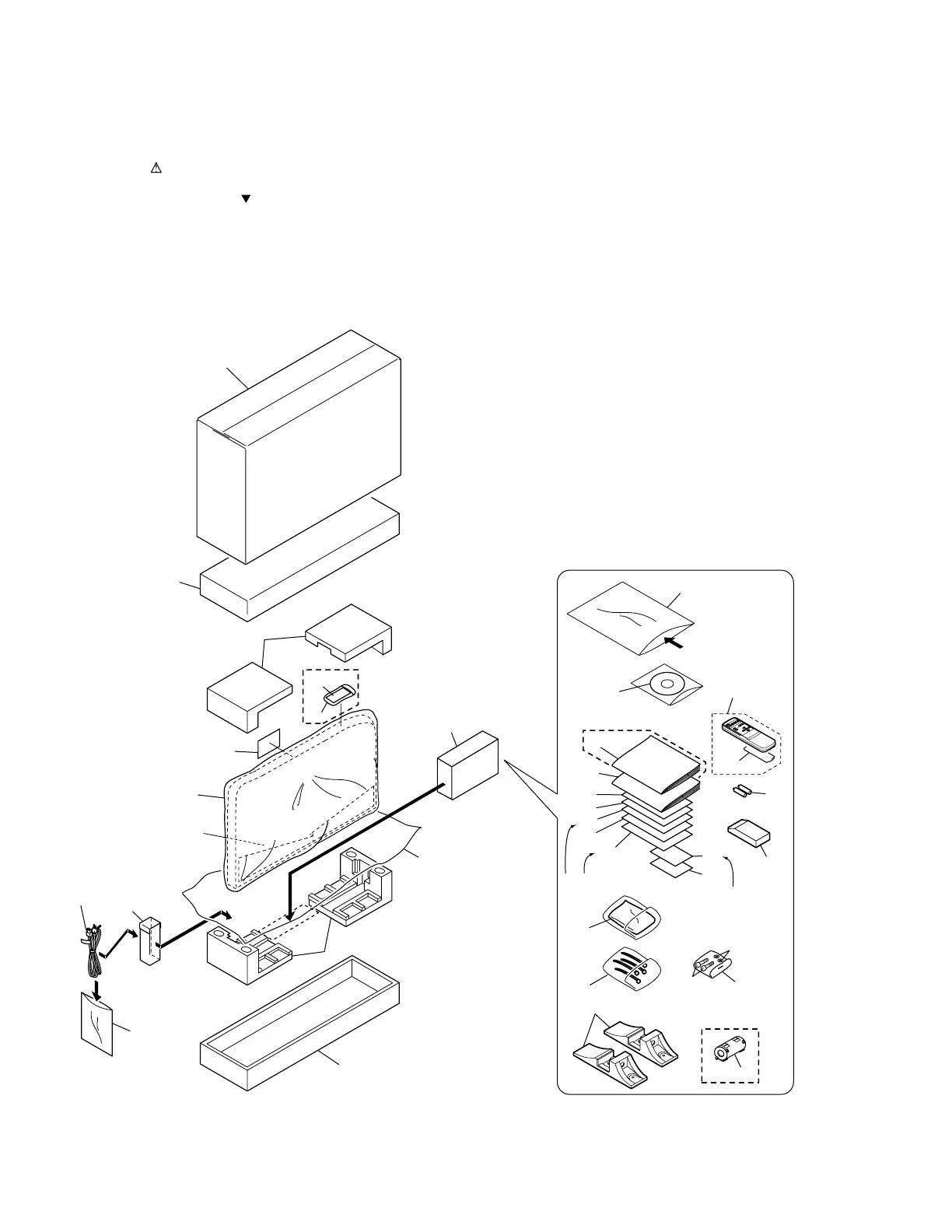

2.1 PLASMA DISPLAY (PDP-503CMX and PDP-503MXE)
2.1.1 PACKING
2. EXPLODED VIEWS AND PARTS LIST
NOTES:
•
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
•
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
•
Screws adjacent to mark on the product are used for disassembly.
1
2
3
3
9
10
11
2
26
5
4
8
7
12
11
31
32
33
16
17
18
19
20
21
22
30
25
24
23
27
28
35
6
29
36
PDP-503MXE
Only
PDP-503MXE
Only
15
PDP-503CMX
Only
PDP-503CMX
Only
PDP-503CMX
Only
PDP-503CMX
Only
34

Pioneer PDP-503MXE Specifications

General

Depth	98 mm
Width	1218 mm
Height	714 mm
Weight	38900 g
Pixel pitch	0.858 x 0.808 mm
Aspect ratio	16:9
Power supply	380 W
Display diagonal	50 \
Display resolution	1280 x 768 pixels
Display technology	Plasma
Contrast ratio (typical)	750:1
Viewing angle, horizontal	160 °
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
HD type	WXGA
