Pioneer PDP-503MXE Service Manual

PDP-503CMX, PDP-503MXE, PDA-5002
9

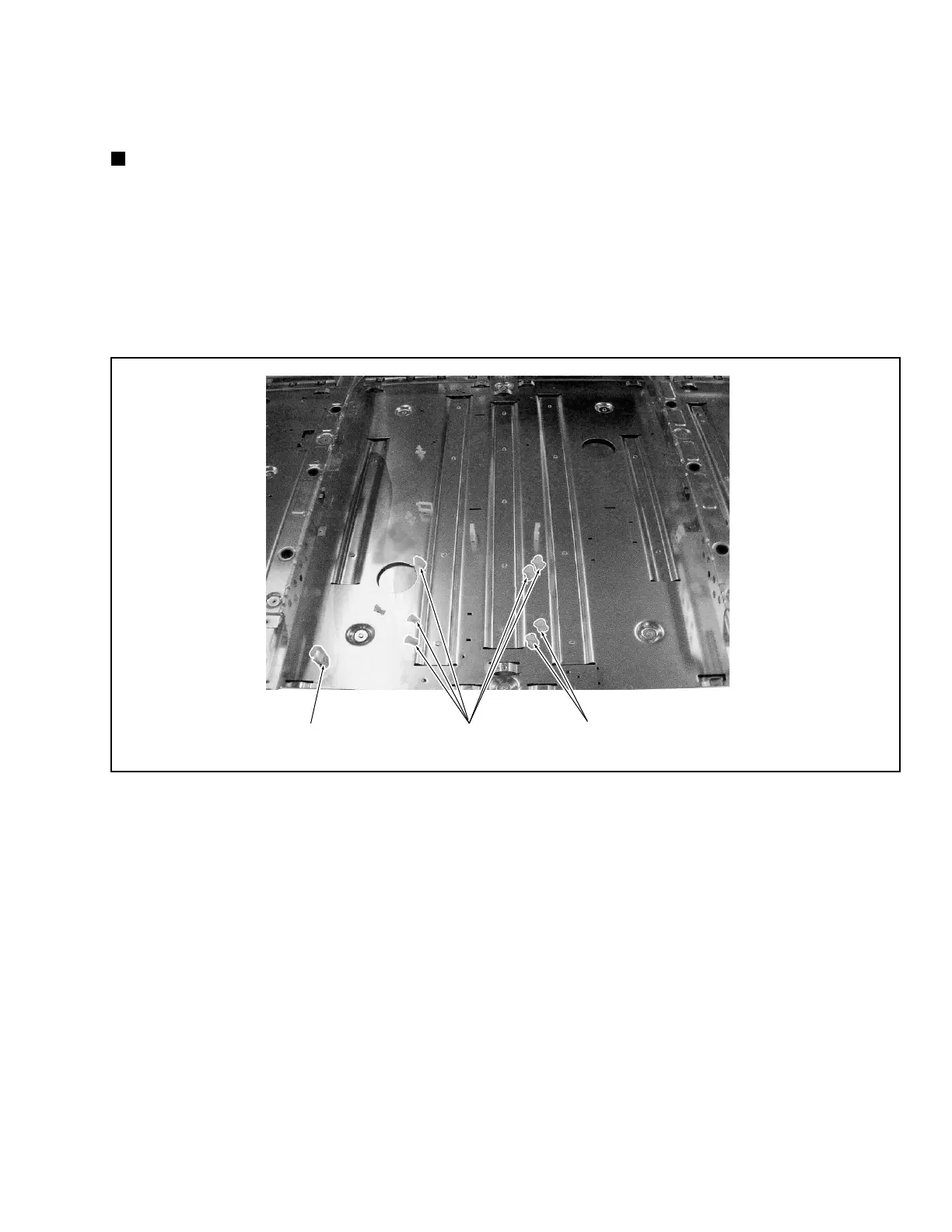

Caution in Replacement of Panel Chassis (50) Assy
Service Panel Assy (AWU1040) is all common use parts of for business, public use and module.
Supply it by the state that installed Circuit Board Spacer (AEC1872) and Wire Saddle (AEC1878)as follows.
Therefore need to remove it in accordance with model.
Confirm character carved a seal near the parts, and remove it.
P : Public exclusive use
W : Module exclusive use
PW : Common use of public use and module
∗ In case of this unit, all the parts carved a seal of character removes it.
Wire Saddle
(AEC1878)
Service Panel Assy (AWU1040)
Circuit Board Spacer
(AEC1872)
Circuit Board Spacer
(AEC1872)
(There is marking of "P" nearby.)

Pioneer PDP-503MXE Specifications

General

Depth	98 mm
Width	1218 mm
Height	714 mm
Weight	38900 g
Pixel pitch	0.858 x 0.808 mm
Aspect ratio	16:9
Power supply	380 W
Display diagonal	50 \
Display resolution	1280 x 768 pixels
Display technology	Plasma
Contrast ratio (typical)	750:1
Viewing angle, horizontal	160 °
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
HD type	WXGA
