Pioneer PDP-503MXE Service Manual

PDP-503CMX, PDP-503MXE, PDA-5002
8

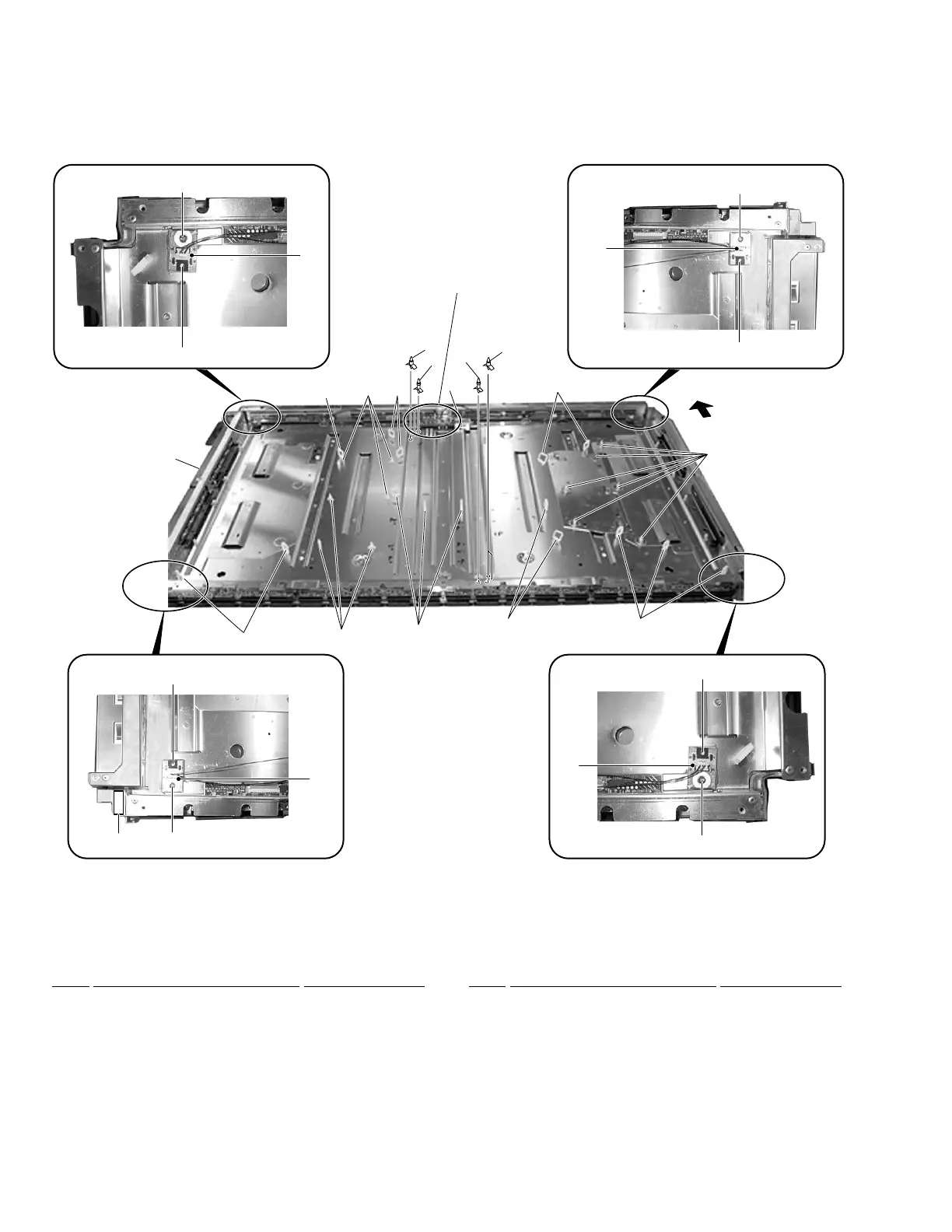

2.1.2 UNDER LAYER SECTION (1)
11
1
10
10
11
2
Refer to
next page.
4
10
11
3
6
7
6
6
6
Upper side
6
8
9
9
8
6
67
6
5
10
1112
7
1 CLAMP A Assy AWZ6650
2 CLAMP B Assy AWZ6651
3 CLAMP C Assy AWZ6652
4 CLAMP D Assy AWZ6653
5 Service Panel Assy AWU1040
•
UNDER LAYER SECTION (1) PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
6 Wire Saddle AEC1878
7 Circuit Board Spacer AEC1872
8 Circuit Board Spacer AEC1873
NSP 9 PCB Spacer AEC1253
10 Locking Card Spacer AEC1736
11 Screw ABA1301
12 V Cushion AED1205

Pioneer PDP-503MXE Specifications

General

Depth	98 mm
Width	1218 mm
Height	714 mm
Weight	38900 g
Pixel pitch	0.858 x 0.808 mm
Aspect ratio	16:9
Power supply	380 W
Display diagonal	50 \
Display resolution	1280 x 768 pixels
Display technology	Plasma
Contrast ratio (typical)	750:1
Viewing angle, horizontal	160 °
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
HD type	WXGA
