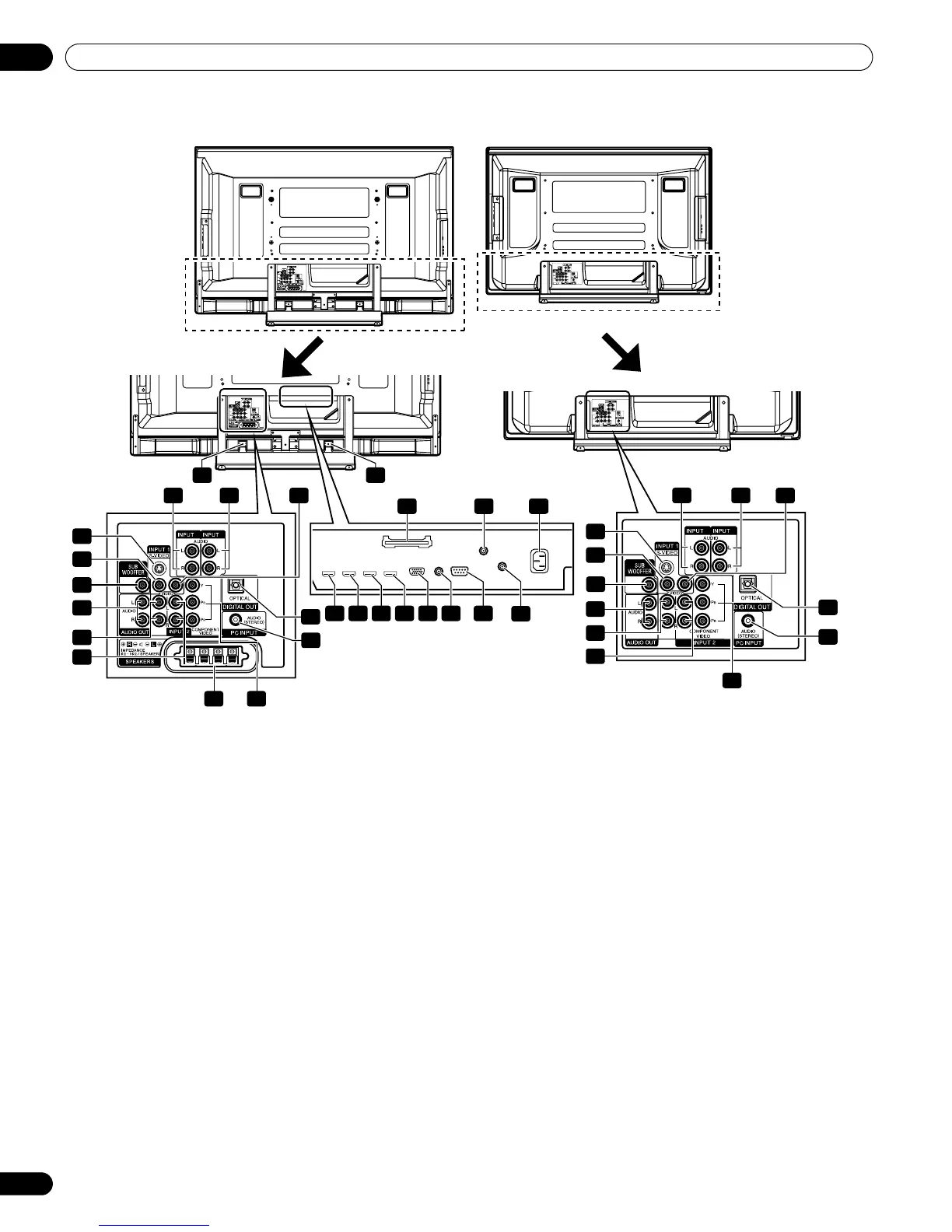

Part Names
04
1 CableCARD™ slot
2 ANT/CABLE A IN terminal
3 AC IN terminal
4 INPUT 4 terminal (HDMI)
5 INPUT 5 terminal (HDMI)
6 INPUT 6 terminal (HDMI)
7 INPUT 7 terminal (HDMI)
8 PC INPUT terminal (ANALOG RGB)
9 CONTROL OUT terminal
10 RS-232C terminal (used for factory setup)
11 ANT B IN terminal
12 INPUT 1 terminal (S-VIDEO)
13 INPUT 1 terminal (VIDEO)
14 SUB WOOFER terminal
15 AUDIO OUT terminals (AUDIO)
16 INPUT 1 terminals (AUDIO)
17 INPUT 2 terminals (AUDIO)
18 INPUT 4 terminals (AUDIO)
19 INPUT 5 terminals (AUDIO)
20 INPUT 2 terminal (VIDEO)
21 DIGITAL OUT terminal (OPTICAL)
22 PC INPUT terminal (AUDIO)
23 INPUT 2 terminals (COMPONENT VIDEO: Y, P B ,
P R )
24 SPEAKERS (R/L) terminals
25 SPEAKERS (R) terminal (Speaker side)
26 SPEAKERS (L) terminal (Speaker side)
45
45
45
45
45
45
PDP-5080HD PDP-4280HD
22
21
17
14
15
16
18 19
23
13
12
20
1 2
3
11
10984 5 6 7
20
22
21
17
13
12
14
15
16
18
19
24 23
25
26
(Rear)
*For exact terminal positions, refer to
the terminal position sheet located
near the terminal compartment.
The terminals from 1 to 8 are the same as the
PDP-5080HD.
