PDP-508XG
29
5678
56
7
8
C
D
F
A
B
E
Ye s
No
Ye s
Ye s
No

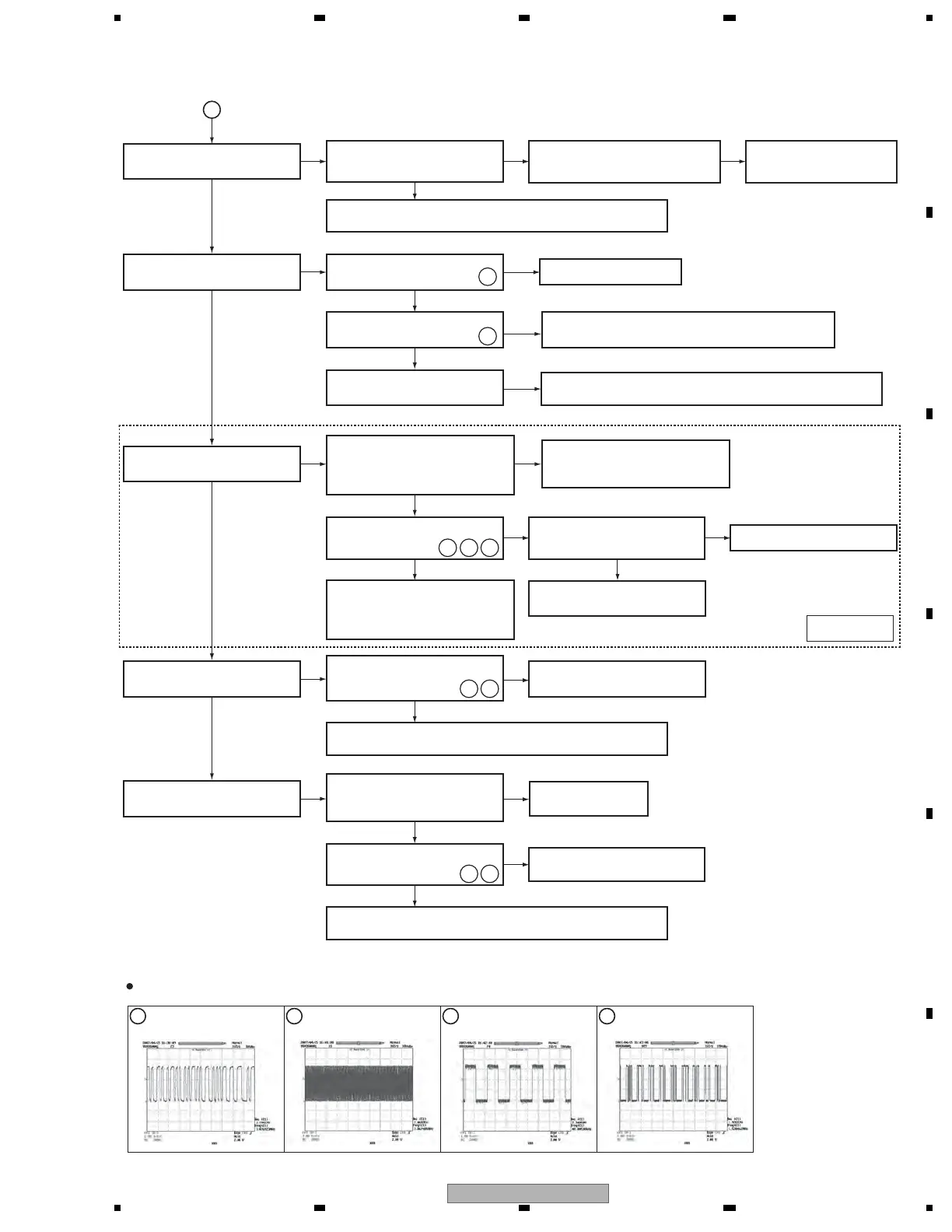

Has the sound of the Analog
broadcasting output?
Is a SIF signal input to IC9101?
(pin 68)
Check the communications around the IC9101 and between the IC9101
and the microcomputer. If there was no ploblem, replace MSP5651M.
Check the communications between
the U6001 and the microcomputer
and between the U6001 and IC9101.
NG
Replace the U6001
and
r
epair the failure points
.
Ye s
No
No
No
No
Has the sound of the HDMI
output?
Is a SPDIF signal output from
IC5201? (pin 78)
Check the communications around the IC9101 and between the IC9101
and the microcomputer. If there was no ploblem, replace MSP5651M.
Check the FFC and cables between
the MAIN Assy and TANSHI Assy.
Does not sound output even if replace
them?
Poor contact of the connector or
FFC, or cable is defective.
Replace FFC or cable.
Replace the IC5201.
Ye s
Ye s Ye s
No
Poor contact of the connector or FFC, or cable is defective.
Replace FFC or cable.
Ye s
No
Has the sound of the Digital
broadcasting output?
Ye s
No
Has the sound of the analog RCA
and PC inputs output?
Is a I2S signal input to IC9101?
(pins 106 to 108)
Ye s
Is a SPDIF signal input to
IC9101? (pin 4)
Check the communications around the
IC9101 and between the IC9101 and
the microcomputer. If there was no
ploblem replace the MAIN Assy.
Is a signal output from IC8401 of
the MAIN Assy?
No
Repare the DTB block.
Check around IC8401
and r
epair
the failure points
.
Check between input terminal and
IC9101
and r
epair the failure points
.
DTV model only
Ye s
Ye s
No
Is a signal input to IC9101?
(pins 24 to 27, 32 to 35)
Check the communications around the IC9101 and between the IC9101
and the microcomputer. If there was no ploblem replace the MAIN Assy.
Check the communications around the IC9101 and between the IC9101
and the microcomputer. If there was no ploblem replace the MAIN Assy.
Check between IC9101 and
CN8801
and r
epair the failure points
.
No
Is a signal input to IC9101?
(pins 30, 31)
A
No
Has the sound of the side input
output?
Replace the cables.
NG
Check the cables between CN8801
and CN9351, and check around
the pin jack.
OK
54
Waveforms
55 56 57
IC5201 - pin 78
V: 1 V/div H: 1 μS/div
IC9101 - pin 106
V: 1 V/div H: 10 μS/div
IC9101 - pin 107
V: 1 V/div H: 10 μS/div
IC9101 - pin 108
V: 1 V/div H: 10 μS/div
Input signal: L/R 1 kHz, 0.5 Vrms (VOL 30)
54
54
5756
5049
5049
55
NG
Check that the HDMI switch of the
MENU is properly set.
