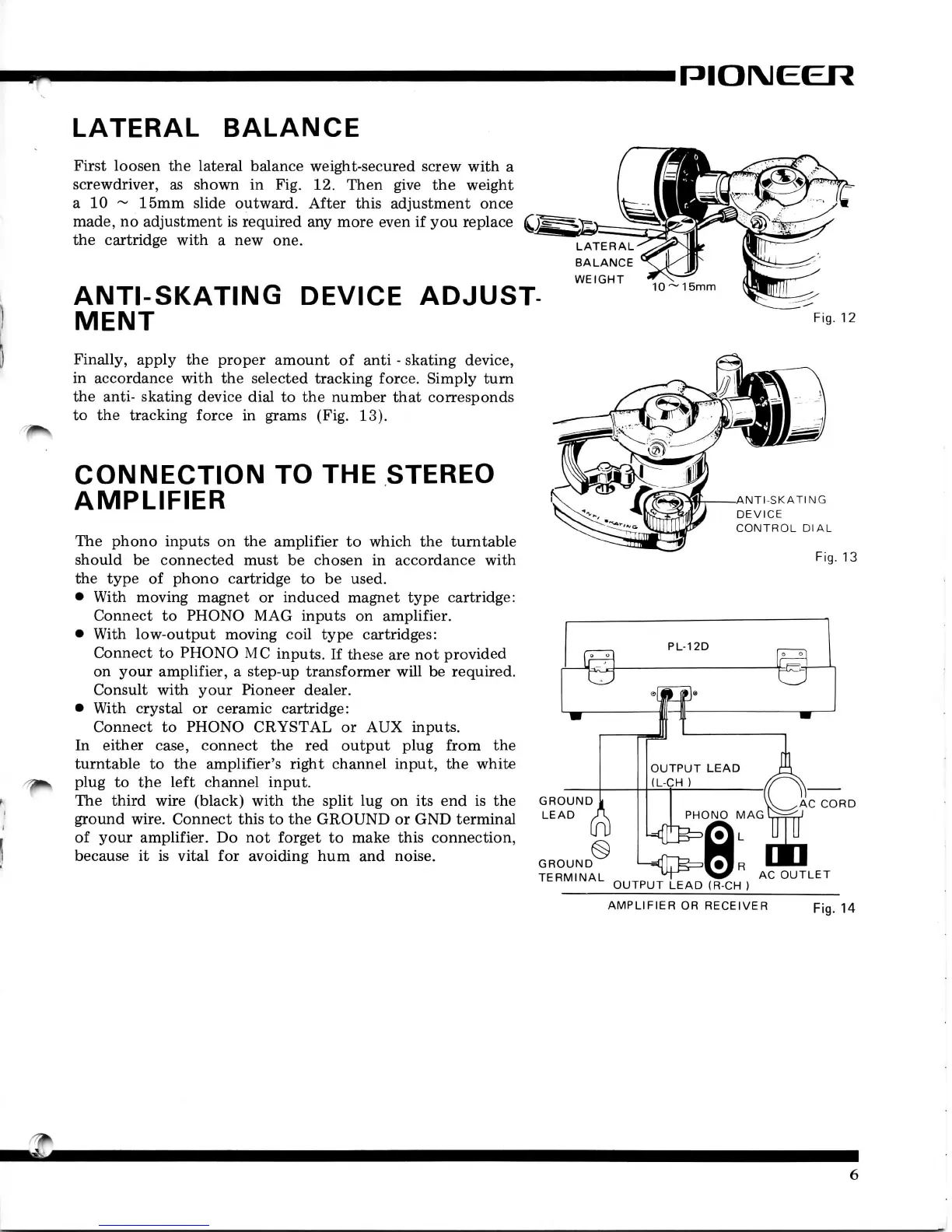

PIOIXICEER
LATERAL
BALANCE
First
loosen
the
lateral balance weight-secured screw with
a
screwdriver,
as
shown
in
Fig.
12.
Then give
the
weight
a
10
~
15mm slide outward.
After
this adjustment once
made,
no
adjustment
is
required
any
more even
if you
replace
the
cartridge with
a new
one.
ANTI-SKATING
DEVICE
ADJUST
MENT
Finally, apply
the
proper amount
of
anti
-
skating device,
in
accordance with
the
selected tracking force. Simply turn
the
anti- skating device dial
to the
number
that
corresponds
to the
tracking force
in
grams (Fig. 13).
CONNECTION
TO THE
STEREO
AMPLIFIER
The
phono inputs
on the
amplifier
to
which
the
turntable
should
be
connected
must
be
chosen
in
accordance with
the
type
of
phono cartridge
to be
used.
•
With
moving magnet
or
induced magnet type cartridge:
Connect
to
PHONO
MAG
inputs
on
amplifier.
•
With low-output moving coil type cartridges:
Connect
to
PHONO
MC
inputs.
If
these
are not
provided
on
your amplifier,
a
step-up transformer will
be
required.
Consult with your Pioneer dealer.
•
With crystal
or
ceramic cartridge:
Connect
to
PHONO CRYSTAL
or AUX
inputs.
In
either case, connect
the red
output
plug from
the
turntable
to the
amplifier's right channel input,
the
white
plug
to the
left channel input.
The
third wire (black) with
the
split
lug on its end is the
ground wire. Connect this
to the
GROUND
or GND
terminal
of
your amplifier.
Do not
forget
to
make this connection,
because
it is
vital
for
avoiding
hum and
noise.
LATERAL
BALANCE
WEIGHT
Fig.
12
NTI-SKATING
DEVICE
CONTROL
DIAL
Fig.
13
PL-12D
UNO
D
/
(
(TD
••»"
OUTPUT
LEAD
(L-CH
)
u*fT
PHONO
MAG
TfafSll
GROUND
TERMINAL
HpH
CORD
OUTPUT
LEAD
(R-CH
)
AC
OUTLET
AMPLIFIER
OR
RECEIVER
Fig.
14
To Next Page
