Pioneer PL-12D User Manual

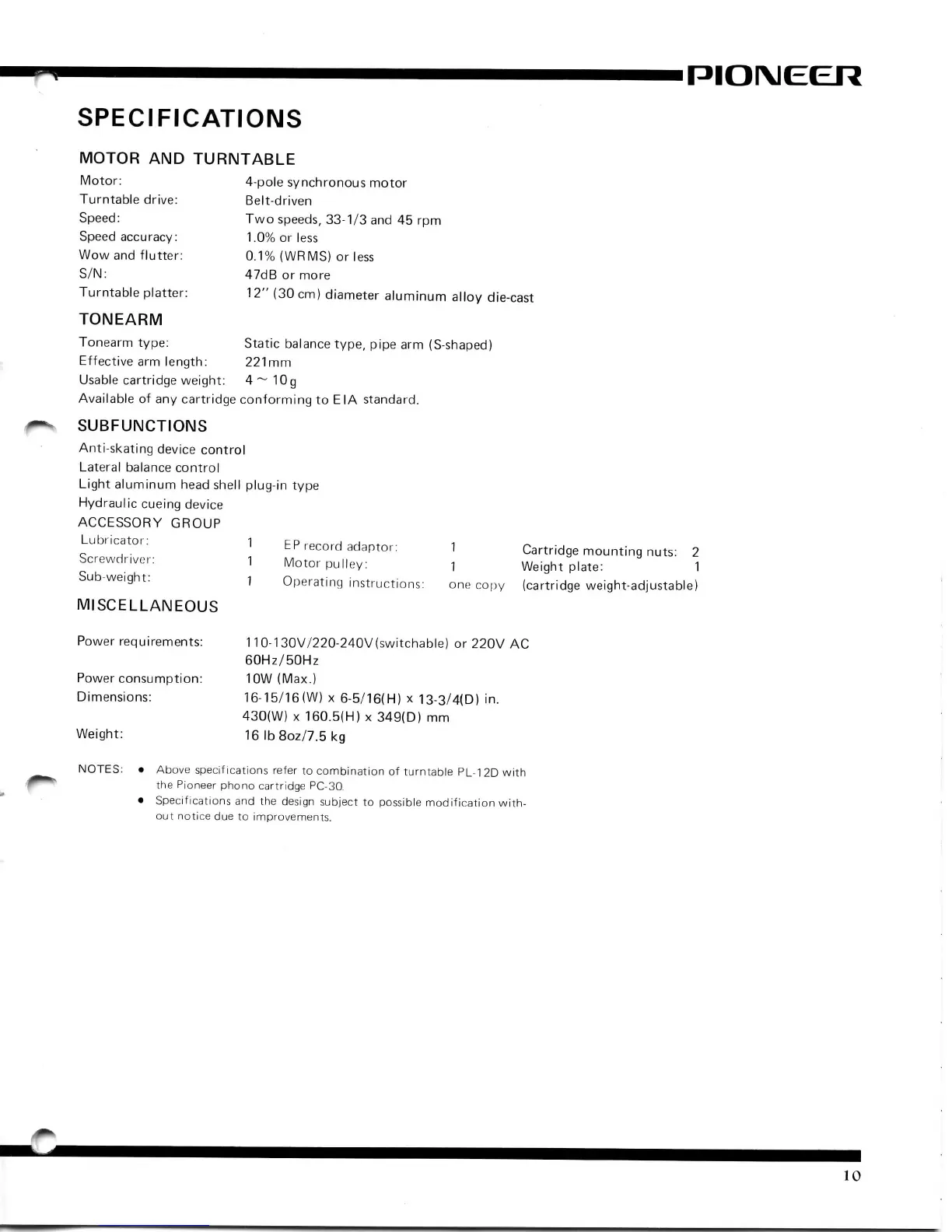

SPECIFICATIONS
MOTOR AND TURNTABLE
Motor: 4-pole synchronous motor
Turntable drive: Belt-driven
Speed: Two speeds, 33-1/3 and 45 rpm
Speed accuracy: 1.0% or less
Wow and flutter: 0.1% (WRMS) or less
S/N: 47dB or more
Turntable platter: 12" (30 cm) diameter aluminum alloy die-cast
TONEARM
Tonearm type: Static balance type, pipe arm (S-shaped)
Effective arm length: 221mm
Usable cartridge weight: 4~10g
Available of any cartridge conforming to E IA standard.
SUBFUNCTIONS
Anti-skating device control
Lateral balance control
Light aluminum head shell plug-in type
Hydraulic cueing device
ACCESSORY GROUP
Lub"Cat0r: 1 EP record adaptor: 1 Cartridge mounting nuts: 2
Screwdriver: 1 Motor pulley: 1 Weight plate: 1
Sub-weight: 1 Operating instructions: one copy (cartridge weight-adjustable)
MISCELLANEOUS
Power requirements: 110-130V/220-240V(switchable) or 220V AC
60Hz/50Hz
Power consumption: 10W(Max.)
Dimensions: 16-15/16(W) x 6-5/16(1-1) x 13-3/4(D) in.
430(W) x 160.5(H) x 349(D) mm
Weight: 16lb8oz/7.5kg
NOTES: • Above specifications refer to combination of turntable P|_-1 2D with
the Pioneer phono cartridge PC-30.
• Specifications and the design subject to possible modification with-
out notice due to improvements.
PIOIMIEIER
10

Pioneer PL-12D Specifications

General

Drive System	Belt Drive
Motor	4-pole synchronous motor
Speeds	33 1/3 and 45 rpm
Cartridge Weight Range	4 to 10g
Weight	6.5kg
Type	Manual turntable
Effective Arm Length	221mm
Overhang	15.5mm
Cartridge	Not included
Platter	300mm aluminum die-cast
Tonearm	Static-balanced type, S-shaped pipe arm
