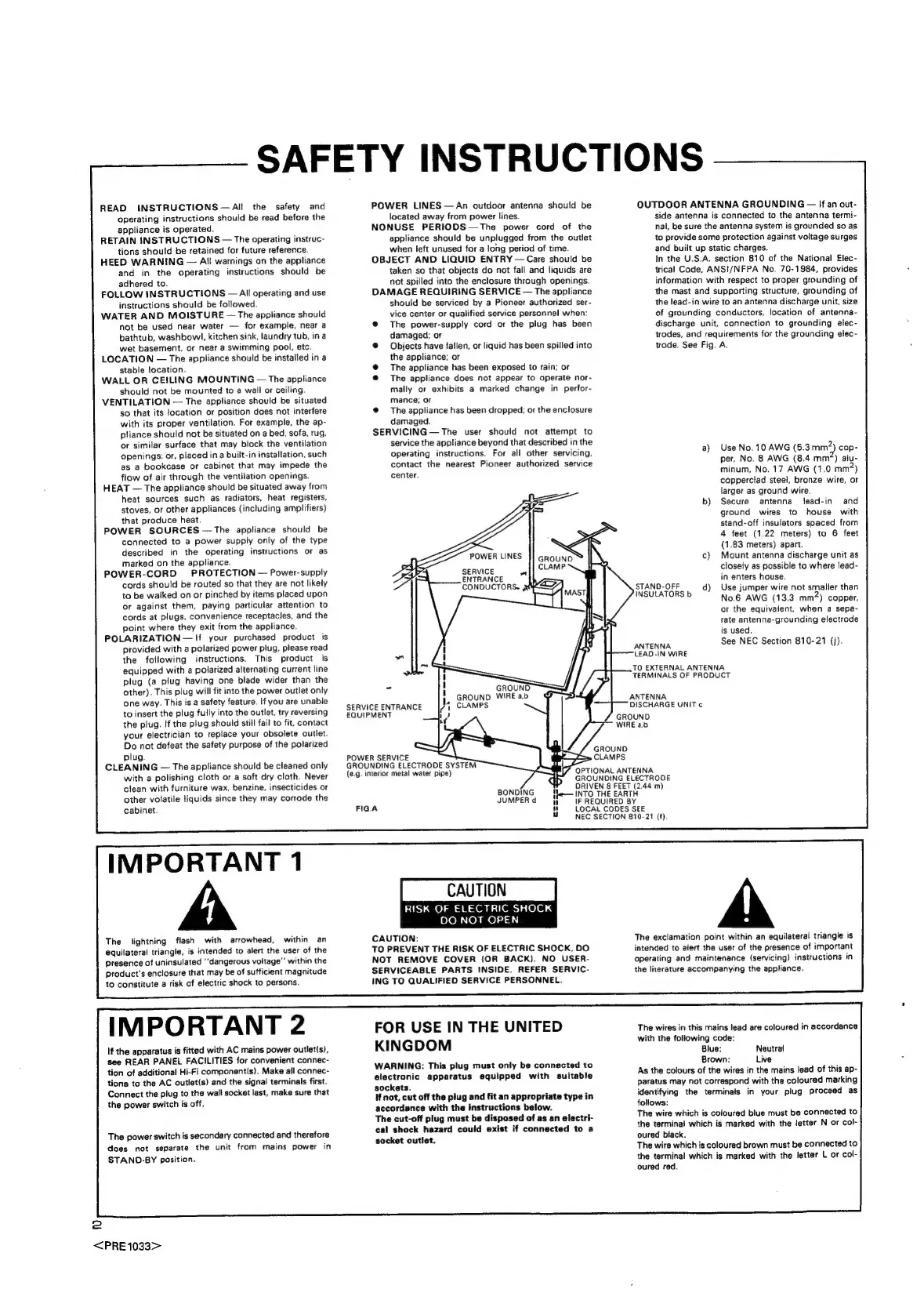

Pioneer PL-X430 - Safety Instructions

2
READ INSTRUCTIONS —All the safety and
operating instructions should be read before the
appliance is operated.
RETAIN INSTRUCTIONS — The operating instruc-
tions should be retained for future reference.
HEED WARNING — Ail warnings on the appliance
and in the operating instructions should be
adhered to.
FOLLOW INSTRUCTIONS — All operating and use
instructions should be followed.
WATER AND MOISTURE — The appliance should
not be used near water — for example, near a
bathtub, washbowl, kitchen sink, laundry tub, ina
wet basement, or near a swimming pool, etc.
LOCATION — The appliance should be installed in a
stable location.
WALL OR CEILING MOUNTING — The appliance
should not be mounted to a wall or ceiling.
VENTILATION — The appliance should be situated
50 that its location or position does not interfere
with its proper ventilation. For example, the ap-
pliance should not be situated on a bed, sofa, rug,
or similar surface that may block the ventilation
openings: or, placed in a built-in installation, such
as a bookcase or cabinet that may impede the
flow of air through the ventilation openings.
HEAT — The appliance should be situated away from
heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers)
that produce heat.
POWER SOURCES —The appliance should be
connected to a power supply only of the type
described in the operating instructions or as
marked on the appliance.
POWER-CORD PROTECTION — Power-supply
cords should be routed so that they are not likely
to be walked on or pinched by items placed upon
or against them, paying particular attention to
cords at plugs, convenience receptacles, and the
point where they exit from the appliance.
POLARIZATION — If your purchased product is
provided with a polarized power plug, please read
the following instructions. This product is
equipped with a polarized alternating current line
plug (a plug having one blade wider than the
other). This plug will fit into the power outlet only
one way. This is a safety feature. If you are unable
to insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, contact
your electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the polarized
plug.
CLEANING — The appliance should be cleaned only
with a polishing cloth or a soft dry cloth. Never
clean with furniture wax, benzine, insecticides or
other volatile liquids since they may corrode the
cabinet.
IMPORTANT 1
The lightning flash with arrowhead, within an
equilateral triangle, is intended to alert the user of the
presence of uninsulated ‘‘dangerous voltage”’ within the
product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
IMPORTANT 2
If the apparatus is fitted with AC mains power outlet(s),
see REAR PANEL FACILITIES for convenient connec-
tion of additional Hi-Fi component(s). Make all connec-
tions to the AC outlet(s) and the signal terminals first.
Connect the plug to the wall socket last, make sure that
the power switch is off.
The power switch is secondary connected and therefore
does
not
separate
the
unit
from
mains
power
in
STAND-BY position.
<PRE1033>
SERVICE ENTRANCE
EQUIPMENT
POWER SERVICE
GROUNDING ELECTRODE SYSTEM
(e.g. interior metal water pipe)
FIG.A a"
SAFETY INSTRUCTIONS
POWER LINES —An outdoor antenna should be
located away from power lines.
NONUSE PERIODS —The power cord of the
appliance should be unplugged from the outlet
when left unused for a long period of time.
OBJECT AND LIQUID ENTRY — Care should be
taken so that objects do not fall and liquids are
not spilled into the enclosure through openings.
DAMAGE REQUIRING SERVICE — The appliance
should be serviced by a Pioneer authorized ser-
vice center or qualified service personnel when:
@ The power-supply cord or the plug has been
damaged; or
@ Objects have fallen, or liquid has been spilled into
the appliance; or
@ The appliance has been exposed to rain; or
@ The appliance does not appear to operate nor-
mally or exhibits a marked change in perfor-
mance; or
@ The appliance has been dropped; or the enclosure
damaged.
SERVICING — The user should not attempt to
service the appliance beyond that described in the
operating instructions. For all other servicing,
contact the nearest Pioneer authorized service
center.
POWER LINES
SERVICE
ENTRANCE
CONDUCTORS,
GROUND
GROUND WIRE a,b
M4 CLAMPS
)
f
q
G
BONDING
JUMPERd =f
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER {OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVIC-
ING TO QUALIFIED SERVICE PERSONNEL.
FOR USE IN THE UNITED
KINGDOM
WARNING: This plug must only be connected to
electronic apparatus equipped with suitable
sockets.
if not, cut off the plug and fit an appropriate type in
accordance with the instructions below.
The cut-off plug must be disposed of as an electri-
cal shock hazard could exist if connected to a
socket outlet.
GROUND
pe OS CLAMPS
(7 OPTIONAL ANTENNA
GROUNDING ELECTRODE
DRIVEN 8 FEET (2.44 m)
\e-— INTO THE EARTH
IF REQUIRED BY
LOCAL CODES SEE
NEC SECTION 810-21 (f).
OUTDOOR ANTENNA GROUNDING — If an out-
side antenna is connected to the antenna termi-
nal, be sure the antenna system is grounded so as
to provide some protection against voltage surges
and built up static charges.
In the U.S.A. section 810 of the National Elec-
trical Code, ANSI/NFPA No. 70-1984, provides
information with respect to proper grounding of
the mast and supporting structure, grounding of
the lead-in wire to an antenna discharge unit, size
of grounding conductors, location of antenna-
discharge unit, connection to grounding elec-
trodes, and requirements for the grounding elec-
trode. See Fig. A.
a) Use No. 10 AWG (5.3 mm?) cop-
per, No. 8 AWG (8.4 mm*) alu-
minum, No. 17 AWG (1.0 mm?)
copperciad steel, bronze wire, or
larger as ground wire.
b) Secure antenna lead-in and
ground wires to house with
stand-off insulators spaced from
4 feet (1.22 meters) to 6 feet
(1.83 meters) apart.
c) Mount antenna discharge unit as
closely as possible to where lead-
in enters house.
STAND-OFF d) Use jumper wire not smaller than
INSULATORS 2 No.6 AWG (13.3 mm?) copper,
or the equivalent, when a sepa-
rate antenna-grounding electrode
is used.
ANTENNA See NEC Section 810-21 (j).
LEAD-IN WIRE
TO EXTERNAL ANTENNA
TERMINALS OF PRODUCT
ANTENNA
DISCHARGE UNIT c
GROUND
WIRE a,b
The exclamation point within an equilateral triangle is
intended to alert the user of the presence of important
operating and maintenance (servicing) instructions in
the lierature accompanying the appliance.
The wires in this mains lead are coloured in accordance
with the following code:
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this ap-
paratus may not correspond with the coloured marking
identifying the terminals in your plug proceed as
follows:
The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or col-
oured black.
The wire which is coloured brown must be connected to
the terminal which is marked with the letter L or col-
oured red.
