En
16
03 Connecting your equipment

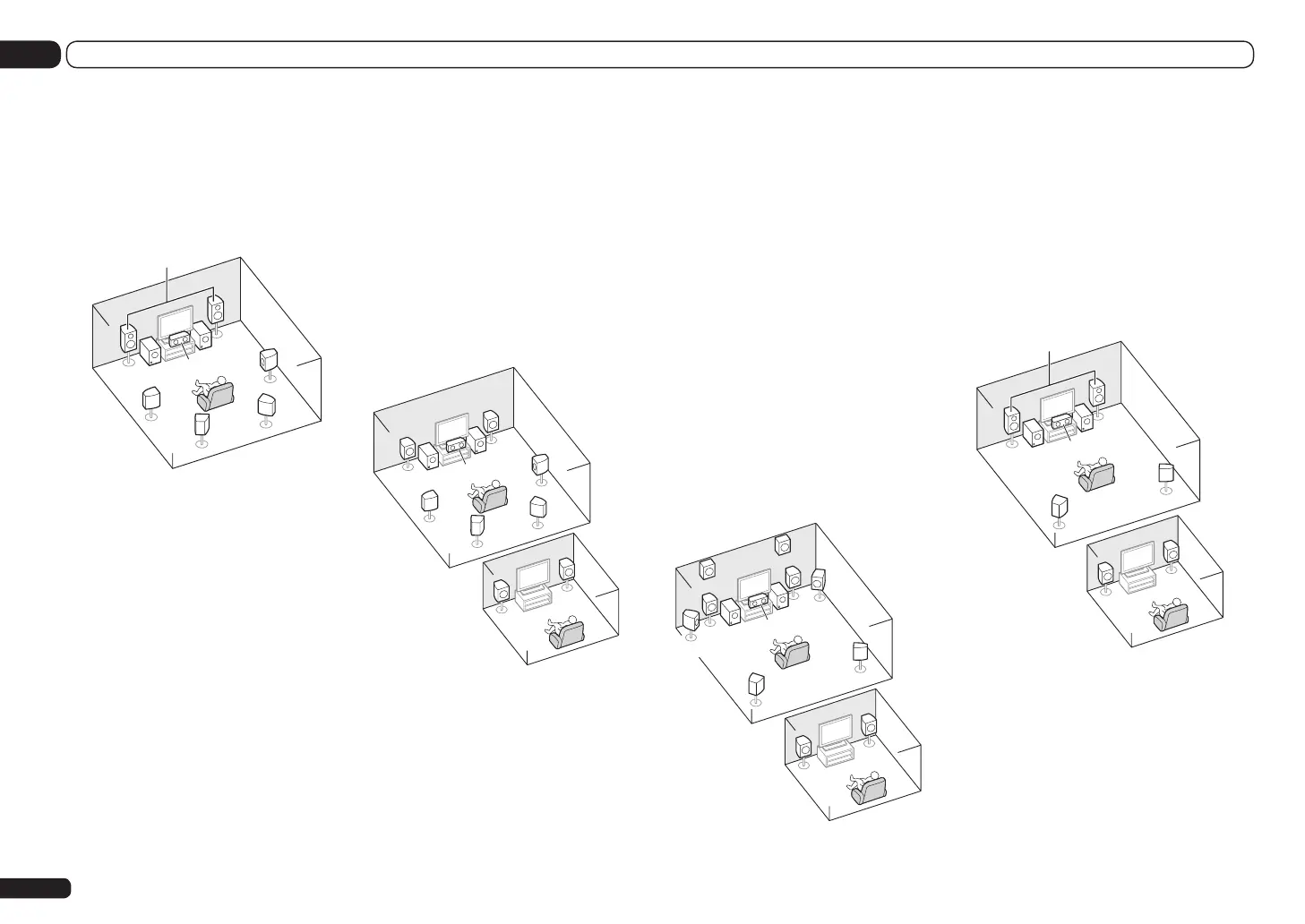

[E] 7.2 channel surround system (Front
height/Front wide) & ZONE 2 connection
(Multi Zone)
! Speaker System setting:
7.1ch FH/FW + ZONE 2
With these connections you can simultaneously
enjoy 7.2-channel surround sound in the main
zone with stereo playback on another compo-
nent in ZONE 2. (The selection of input devices
is limited.)
This speaker layout/usage pattern provides
7.2-channel playback using the front height
and front wide channels in the main zone. To
achieve 7.2-channel playback using the sur-
round back channels with ZONE 2 connections,
see [D].
It is not possible to produce sound simultane-
ously from the front height speakers and the
front wide speakers.
The speakers from which sound is output can
be switched using the SPEAKERS button. For
details, see Switching the speaker terminals on
page 61.
L
L
R
R
Main zone
Sub zone
ZONE 2
C
SW
1
SW
2
FWR
FWL
FHL
FHR
SL
SR
[F] 5.2 channel surround system & Front
Bi-amping connection (High quality
surround) & ZONE 2 connection (Multi
Zone)
! Speaker System setting:
5.1ch Bi-Amp + ZONE 2
With these connections you can simultaneously
enjoy Bi-amping connection of the front speak-
ers for high sound quality with 5.2-channel
surround sound in the main zone with stereo
playback on another component in ZONE 2.
(The selection of input devices is limited.)
L
R
Main zone
Sub zone
ZONE 2
L
R
SL
SR
Front Bi-Amp
SW
1
SW
2
C
[C] 7.2 channel surround system & Front
Bi-amping connection (High quality
surround)
! Speaker System setting: 7.1ch Front Bi-Amp
Bi-amping connection of the front speakers for
high sound quality with 7.2-channel surround
sound.
L
R
Front Bi-Amp
SW
1
SW
2
SL
SR
SBL
SBR
C
[D] 7.2 channel surround system (Surround
back) & ZONE 2 connection (Multi Zone)
! Speaker System setting: 7.1ch + ZONE 2
With these connections you can simultaneously
enjoy 7.2-channel surround sound in the main
zone with stereo playback on another compo-
nent in ZONE 2. (The selection of input devices
is limited.)
This speaker layout/usage pattern provides
7.2-channel playback using the surround back
channels in the main zone. To achieve 7.2-chan-
nel playback using the front height and front
wide channels with ZONE 2 connections, see
[E].
L
L
R
R
Main zone
Sub zone
ZONE 2
C
SW
1
SW
2
SL
SR
SBL
SBR
