Pioneer sc-lx86 User Manual

21
03

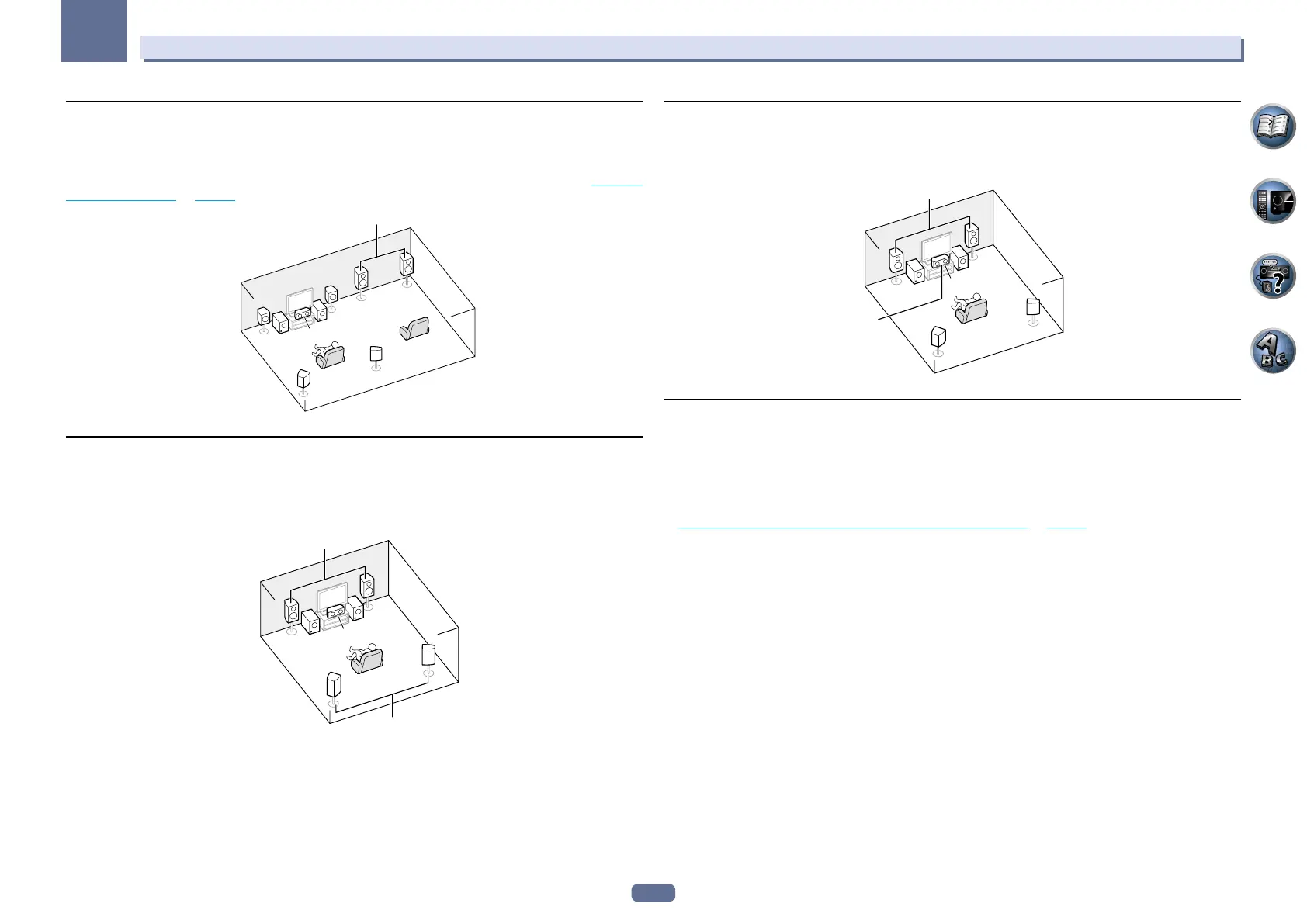

Connecting your equipment
[H] 5.2 channel surround system & Speaker B Bi-amping connection
! Speaker System setting: 5.1ch + SP-B Bi-Amp
With these connections you can simultaneously enjoy 5.2-channel surround sound in the main zone with stereo
playback of the same sound on the B speakers. The B speakers can be bi-amped to achieve high quality sound.
The speakers from which sound is output can be switched using the SPEAKERS button. For details, see Switching
the speaker terminals on page 77.
SL
L
R
SR
C
SW 1
SW
2
L
R
Speaker B Bi-Amp
[I] 5.2 channel surround system & Front and Surround Bi-amping connection
(High quality surround)
! Speaker System setting: 5.1ch F+Surr Bi-Amp
Bi-amping connection of the front and surround speakers for high sound quality with 5.2-channel surround
sound.
L
R
SL
SR
Front Bi-Amp
Surround Bi-Amp
SW 1
SW
2
C
[J] 5.2 channel surround system & Front and Center Bi-amping connection
(High quality surround)
! Speaker System setting: 5.1ch F+C Bi-Amp
Bi-amping connection of the front and center speakers for high sound quality with 5.2-channel surround sound.
L
R
SL
SR
Front Bi-Amp
Center
Bi-Amp
SW 1
SW
2
C
Other speaker connections
! Your favorite speaker connections can be selected even if you have fewer than 5.2 speakers (except front left/
right speakers).
! When not connecting a subwoofer, connect speakers with low frequency reproduction capabilities to the front
channel. (The subwoofer’s low frequency component is played from the front speakers, so the speakers could
be damaged.)
! After connecting, be sure to conduct the Full Auto MCACC (speaker environment setting) procedure. See
Automatically conducting optimum sound tuning (Full Auto MCACC) on page 45.

Pioneer sc-lx86 Specifications

General

Receiver type	Surround
Output impedance	6 Ω
Speaker selector	A+B
Audio output channels	9.1 channels
Total Harmonic Distortion (THD)	1 %
Power output per channel (1KHz@6 Ohm)	190 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	8
AC (power) in	Yes
Remote (IR) input	1
Composite video in	4
Digital audio optical in	2
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	3
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Supported radio bands	AM, FM
Optical drive included	No
Display	-
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital Plus, Dolby Pro Logic, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS 96/24, DTS-ES, DTS-HD, DTS-HD Master Audio
Apple docking compatibility	iPad, iPhone, iPod
On Screen Display (OSD) languages	DEU, DUT, ENG, ESP, FRE, ITA, RUS
Graphical user interface (GUI) language	English, French, German, Italian, Russian, Spanish
AC input voltage	230-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	370 W
THX-certified	THX Select2 Plus
Cables included	AC
