Pioneer TX-608 - Specifications Overview; Semiconductor Components; FM Section Specifications; AM Section Specifications

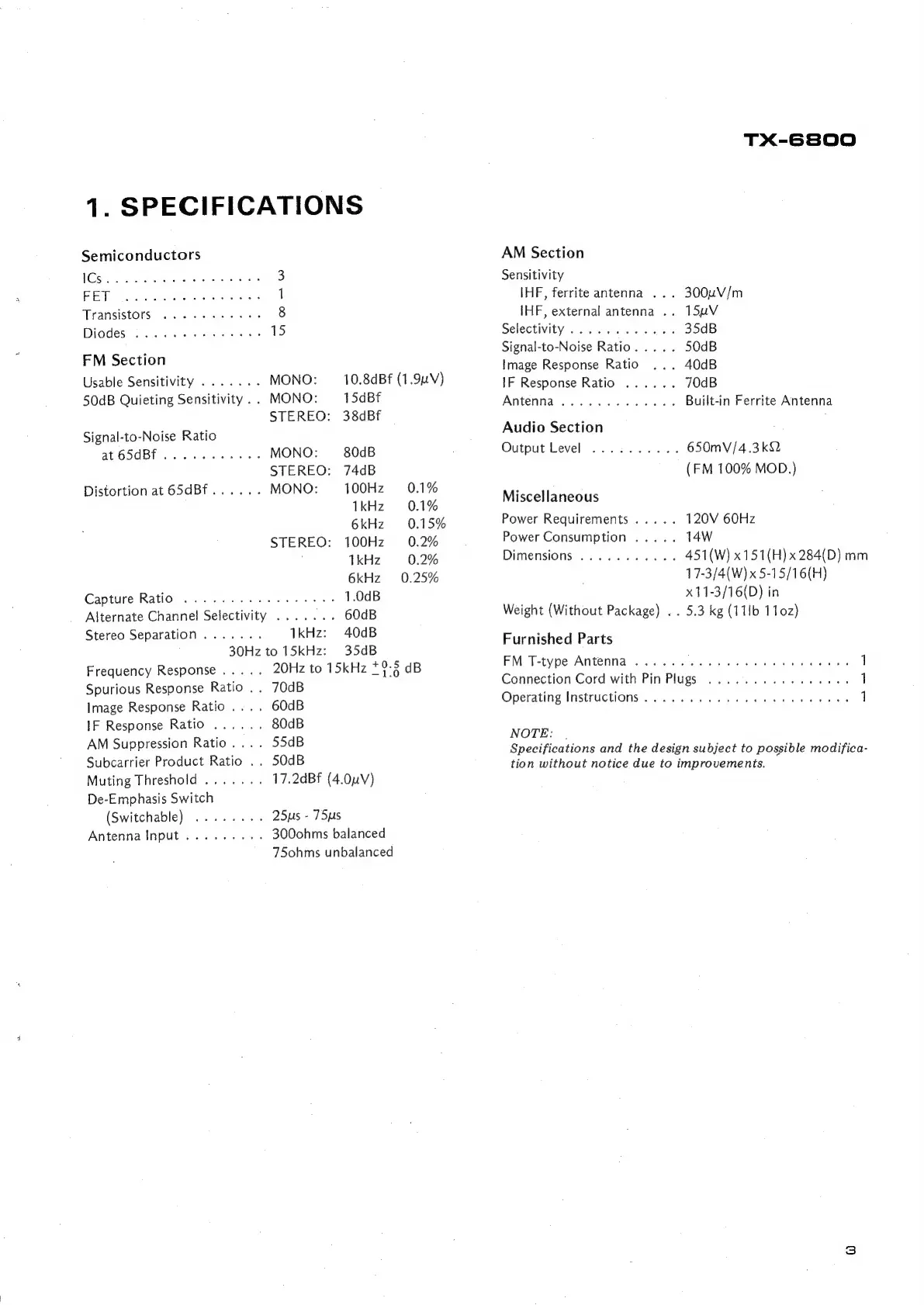

1. SPECIFICATIONS
Semiconductors
FM Section
Usable Sensitivity .......
50dB Quieting Sensitivity ..
Signal-to-Noise Ratio
at 65dBf ...........
Distortion at 6S5dBf......
Capture Ratio
Alternate Channel Selectivity
Stereo Separation .......
30Hz to 15kHz:
Frequency Response .....
Spurious Response Ratio . .
Image Response Ratio ....
IF Response Ratio ......
AM Suppression Ratio... .
Subcarrier Product Ratio ..
Muting Threshold .......
De-Emphasis Switch
(Switchable)
Antenna Input .........
3
1
8
15
MONO: 10.8dBf (1.9uV)
MONO: 15dBf
STEREO: 38dBf
MONO: 80dB
STEREO: 74dB
MONO: 100Hz 0.1%
1kHz 0.1%
6kHz 0.15%
STEREO: 100Hz 0.2%
1kHz 0.2%
6kHz 0.25%
exces Tice 1.0dB
eon 60dB
1kHz: 40dB
35dB
20Hz to 15kHz *9:8 dB
70dB
60dB
80dB
55dB
50dB
17.2dBF (4.0uV)
25us - 75us
300ohms balanced
75o0hms unbalanced
AM Section
Sensitivity
IHF, ferrite antenna ..
{HF, external antenna ..
Selectivity 2.0... 42 en55
Signal-to-Noise Ratio. ....
Image Response Ratio
IF Response Ratio ......
Antenna .......0.0005
Audio Section
Output Level
Miscellaneous
Power Requirements .....
Power Consumption .....
Dimensions ...........
Weight (Without Package) .
Furnished Parts
FM T-type Antenna ......
Connection Cord with Pin Plugs
Operating Instructions .....
NOTE:
TX-6800
. 300unV/m
15yuV
35dB
50dB
. 40dB
70dB
Built-in Ferrite Antenna
650mV/4.3kQ
(FM 100% MOD.)
120V 60Hz
14W
451(W) x151(H) x 284(D) mm
17-3/4(W)x 5-15/16(H)
x11-3/16(D) in
. 5.3 kg (111b 110z)
Specifications and the design subject to possible modifica-
tion without notice due to improvements.
