Pioneer TX-608 - Disassembly Procedures; Side Panels and Top Panel Removal; Bottom Plate Removal; Front Panel Removal

TX-6800

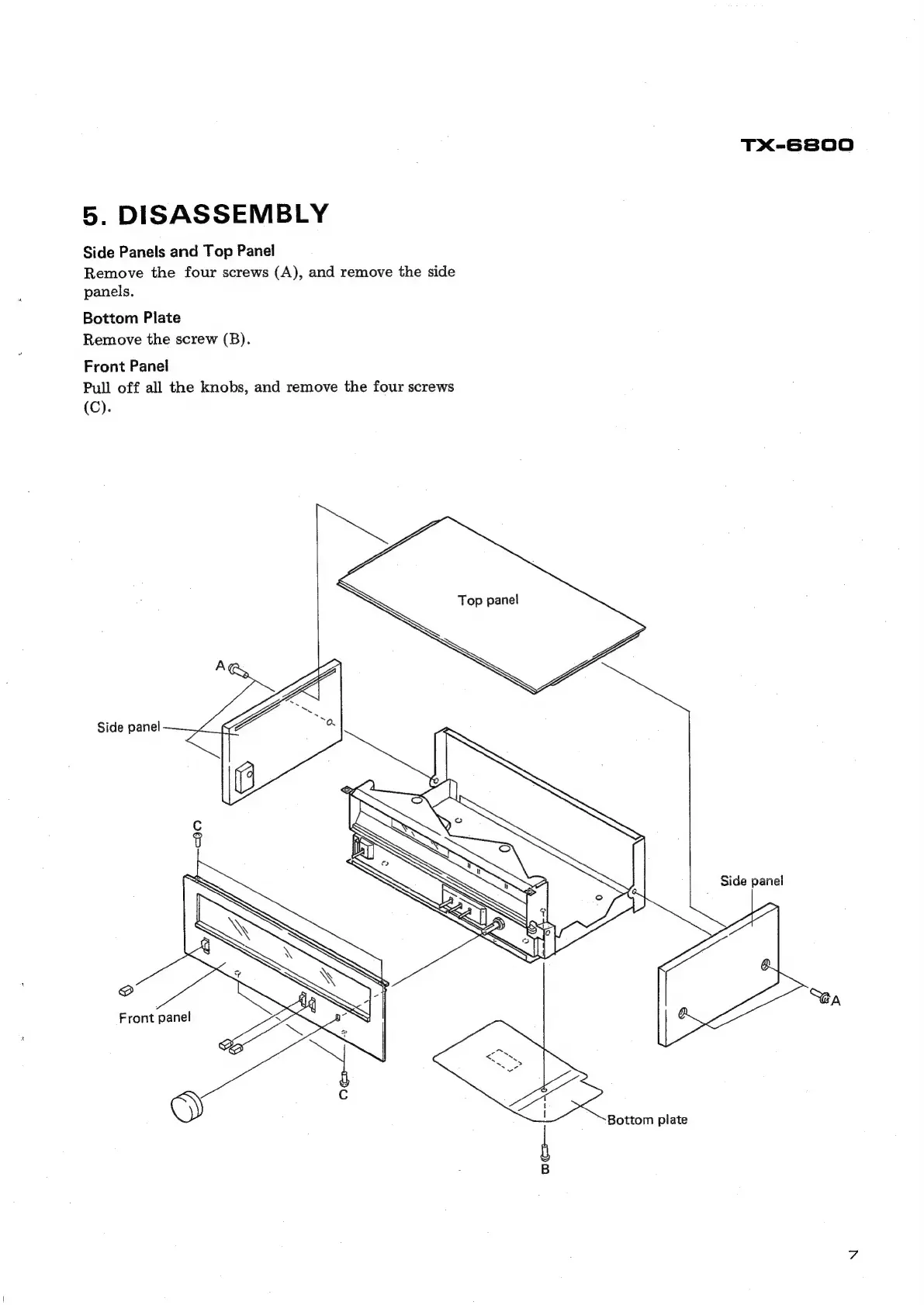

5. DISASSEMBLY
Side Panels and Top Panel
Remove the four screws (A), and remove the side
panels.
Bottom Plate
Remove the screw (B).
Front Panel
Pull off all the knobs, and remove the four screws
(C).
Top panel
Side panel
CG. 1n wAanmal
eo panel
Front panel
Bottom plate
n¢a—
