Pioneer TX-608 - Dial Cord Stringing Instructions

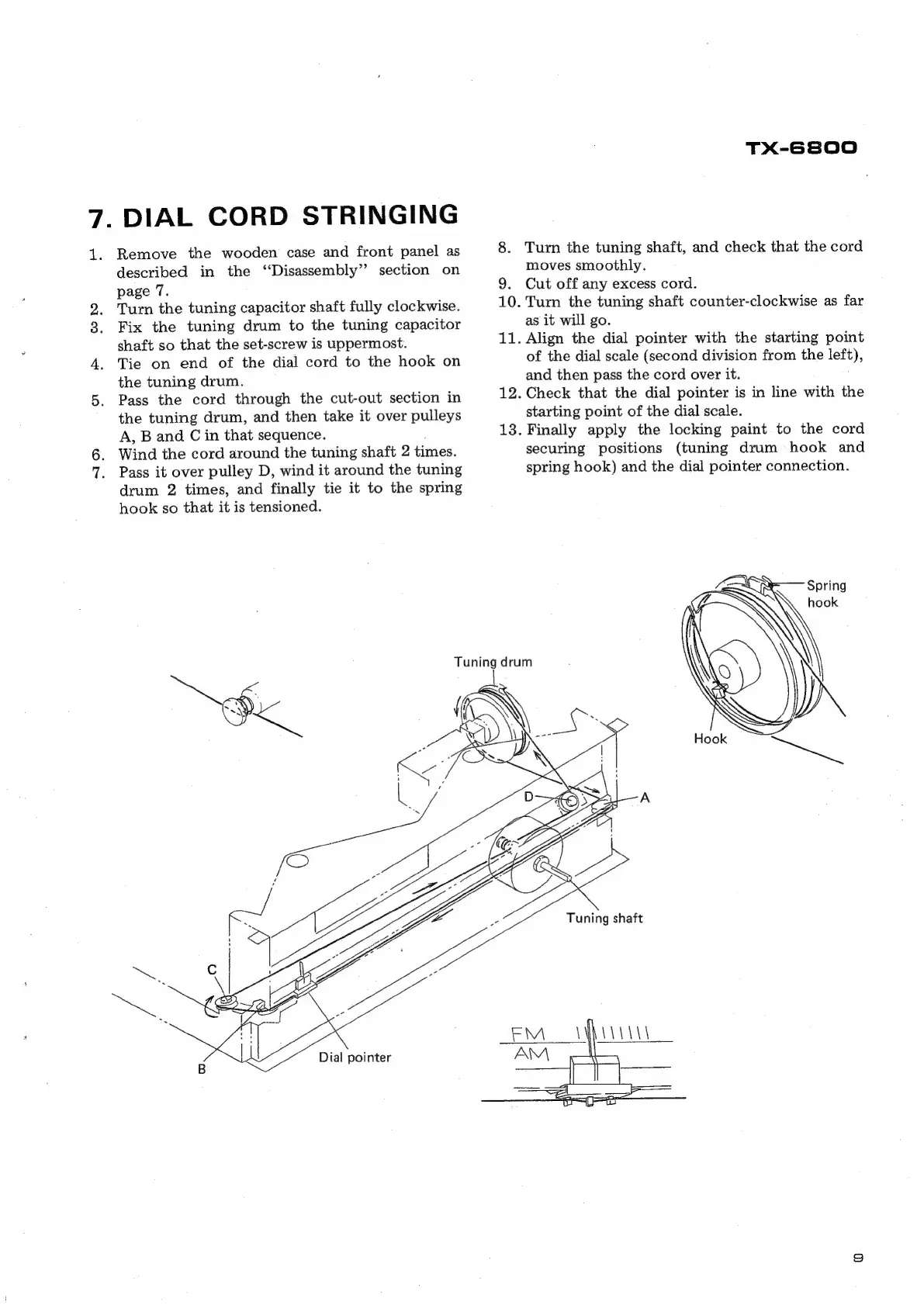

7.
DIAL
CORD
STRINGING
1.
Remove
the
wooden
case
and
front
panel
as
described
in
the
‘Disassembly’?
section
on
page
7.
Turn
the
tuning
capacitor
shaft
fully
clockwise.
Fix
the
tuning
drum
to
the
tuning
capacitor
shaft
so
that
the
set-screw
is
uppermost.
Tie
on
end
of
the
dial
cord
to
the
hook
on
the
tuning
drum.
Pass
the
cord
through
the
cut-out
section
in
the
tuning
drum,
and
then
take
it
over
pulleys
A,
B
and
C
in
that
sequence.
Wind
the
cord
around
the
tuning
shaft
2
times.
Pass
it
over
pulley
D,
wind
it
around
the
tuning
drum
2
times,
and
finally
tie
it
to
the
spring
hook
so
that
it
is tensioned.
Tuning drum
11.
12.
138.
TX-6GS00
Turn the tuning shaft, and check that the cord
moves smoothly.
Cut off any excess cord.
. Turn the tuning shaft counter-clockwise as far
as it will go.
Align the dial pointer with the starting point
of the dial scale (second division from the left),
and then pass the cord over it.
Check that the dial pointer is in line with the
starting point of the dial scale.
Finally apply the locking paint to the cord
securing positions (tuning drum hook and
spring hook) and the dial pointer connection.
Tuning shaft
