Pioneer VSA-E08 Service Manual

VSA-E08
5
A
A
Panel Base
No.20
No.1
BPZ30P080FMC
Heat Sink
ABA1082
IBZ30P080FCC
IBZ30P080FCC
IBZ30P080FCC
Heat Sink Holder A
No.19
Bus Bar
Card Spacer

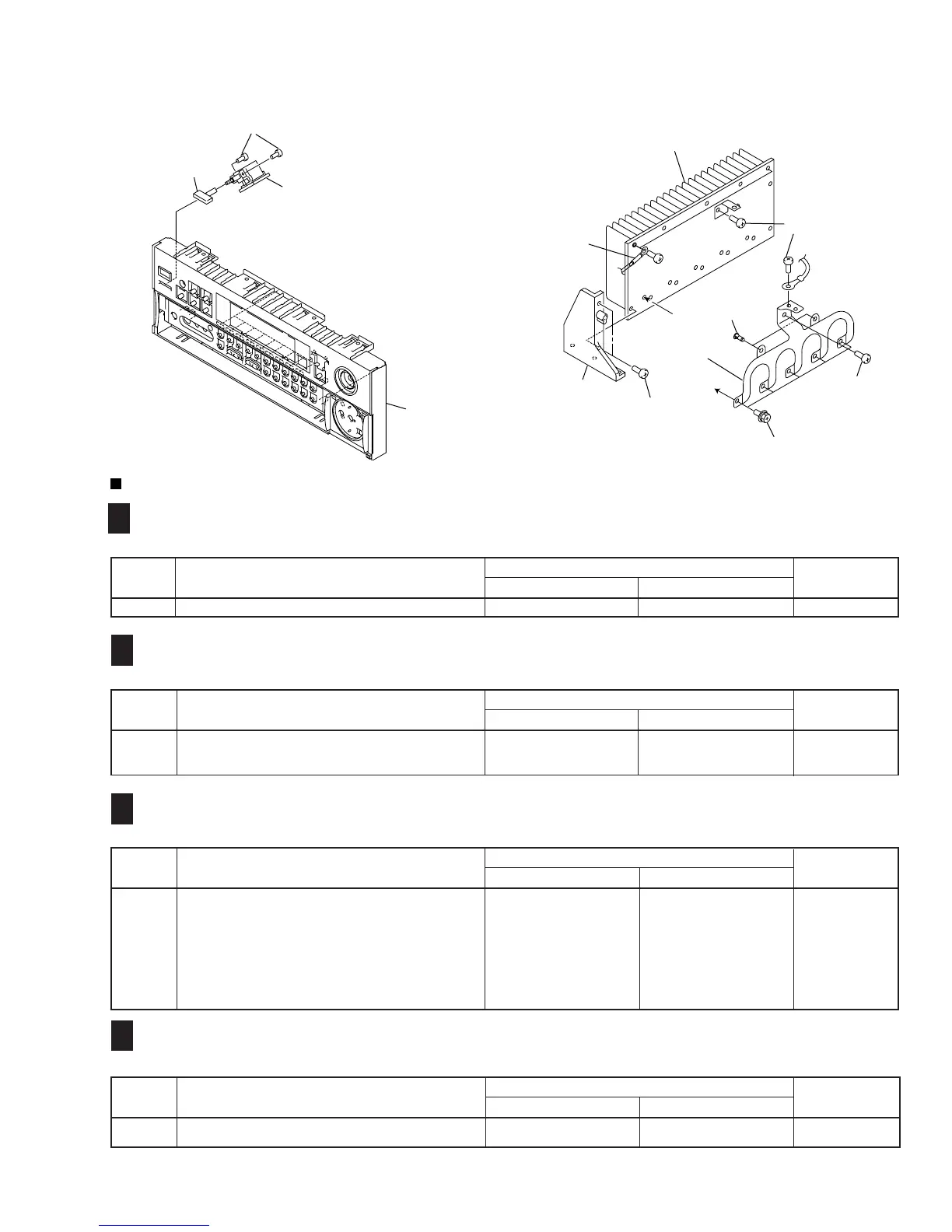

CONTRAST OF PCB ASSEMBLIES
AWX7348 and AWX7314 are constructed the same except for the following :
EXTERNAL IN (EXTRA-5.1) ASSY
F
A
Mark Symbol and Description
Part No.
Remarks
AWX7314 AWX7348
C1101- C1106 Not used CCCSL271J50
AWX7346 and AWX7312 are constructed the same except for the following :
A-PINJACK ASSY
F
B
Mark Symbol and Description
Part No.
Remarks
AWX7312 AWX7346
C1001–C1006, C1009, C1010, C1003, C1014 Not used CCCSL271J50
C1007, C1008, C1013, C1014 Not used CCCSL101J50
R1017, R1018 Not used RD1/4PU101J
÷
FRONT PANEL and HEAT SINK SECTIONS
AWX7558 and AWX7313 are constructed the same except for the following :
CONNECTION ASSY
F
C
Mark Symbol and Description
Part No.
Remarks
AWX7313 AWX7558
IC1301–IC1303 NJM4558D-D UPC4570C
C1301- C1305 Not used CCCSL680J50
C1353, C1354 Not used CCCSL181J50
C1355, C1356 Not used CKCYB331K50
C1365, C1366 CEAT101M16 CEAT101M25
L1351- L1354 Not used LAU181J
R1353, R1354 RD1/4PU331J RD1/4PU122J
AWX7730 and AWX7729 are constructed the same except for the following :
V-AMP ASSY
F
E
Mark Symbol and Description
Part No.
Remarks
AWX7729 AWX7730
C513, C533, C553, C613, C633 CEAT470M50 CECA470M50
C7507, C7508, C7527, C7528 Not used CEAT1R0M50
