Pioneer VSX-409RDS Operating Instructions

10
Audio/Video cords
Use good quality audio/video cords with RCA/phono plugs at each end
(not supplied) to connect the video components and a video cord to
connect the monitor/TV.
Connect red plugs to R (right), white plugs to
L (left), and the yellow plugs to VIDEO.
Be sure to push home the plugs into their
sockets.
VIDEO
IN
TV
monitor
VCR, DVR, etc.
DVD , LD player

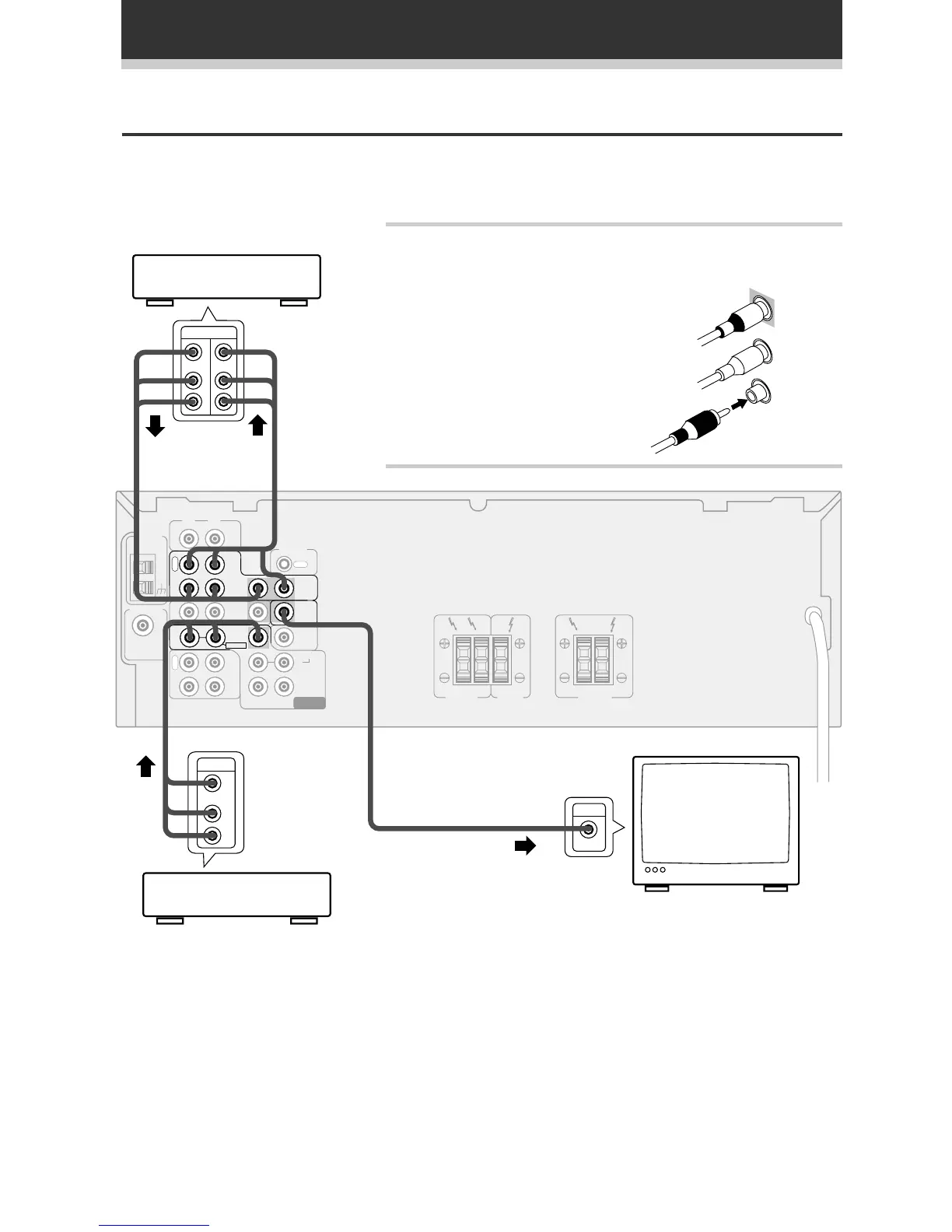

Connecting Video Components
Connect your video components as shown below. When connecting equipment, make sure the power is
switched off and the power cord disconnected from the wall outlet.
Connecting Your System
FM
UNBAL
75Ω
LRLR
AM LOOP
ANTENNA
FM ANTENNA
CD
OUT
CD-R
/TAPE
/MD
IN
IN
IN
IN
IN
IN
IN
IN
OUT
SURROUND
CENTER
CONTROL
TO
MONITOR
TV
VCR/
DVR
TV/
SAT
DVD
/LD
FRONT
P
L
A
Y
CENTER
SPEAKER
SURROUND
SPEAKERS
FRONT
SPEAKERS
LR
SUB
WOOFER
L
R
O
U
T
R
E
C
DVD 5.1 CH
INPUT
OUT
OUT
L
V
R
VIDEO
IN
OUT IN
L
V
R

Pioneer VSX-409RDS Specifications

Power

continuous power output	80 W + 80 W (DIN, 1kHz, 0.9 %, 8 Ω)
power supply voltage	230 V
power requirements	AC 220-230 V, 50/60 Hz
power consumption	220 W
standby power consumption	1 W

Audio Specifications

input sensitivity/impedance	200 mV/47 kΩ
frequency response	5 Hz to 100, 000 Hz
output level/impedance	200 mV/2.2 kΩ
tone control bass	± 6 dB (100 Hz)
tone control treble	± 6 dB (10 kHz)
s.bass	+ 8 dB (100 Hz)
signal-to-noise ratio	88 dB/64 dB

Video Section

video input sensitivity/impedance	1 Vp-p/75 Ω
video output level/impedance	1 Vp-p/75 Ω
video frequency response	5 Hz to 7 MHz –3 dB
video signal-to-noise ratio	55 dB
video cross talk	55 dB

FM Tuner Section

fm frequency range	87.5 MHz to 108 MHz
fm usable sensitivity	Mono:15.2 dBf, IHF (1.6 µV/75 Ω)
fm 50 dB quieting sensitivity	Mono: 20.2 dBf
fm signal-to-noise ratio	Mono: 76 dB (at 85 dBf)
fm distortion	Stereo: 0.6 % (1 kHz)
fm alternate channel selectivity	70 dB (400 kHz)
fm stereo separation	40 dB (1 kHz)
fm frequency response	30 Hz to 15 kHz (±1) dB
fm antenna input	75 Ω unbalanced
fm sensitivity (DIN)	Mono: 1.1 uV(S/N 26dB)
fm signal-to-noise ratio (DIN)	Mono: 62dB

AM Tuner Section

am frequency range	531 kHz to 1, 602 kHz
am sensitivity (IHF, Loop antenna)	350 µV/m
am selectivity	30 dB
am signal-to-noise ratio	50 dB
am antenna	Loop antenna

Weight and Dimensions

dimensions	420 (W) x 158 (H) x 391 (D) mm
weight	8.4 kg
