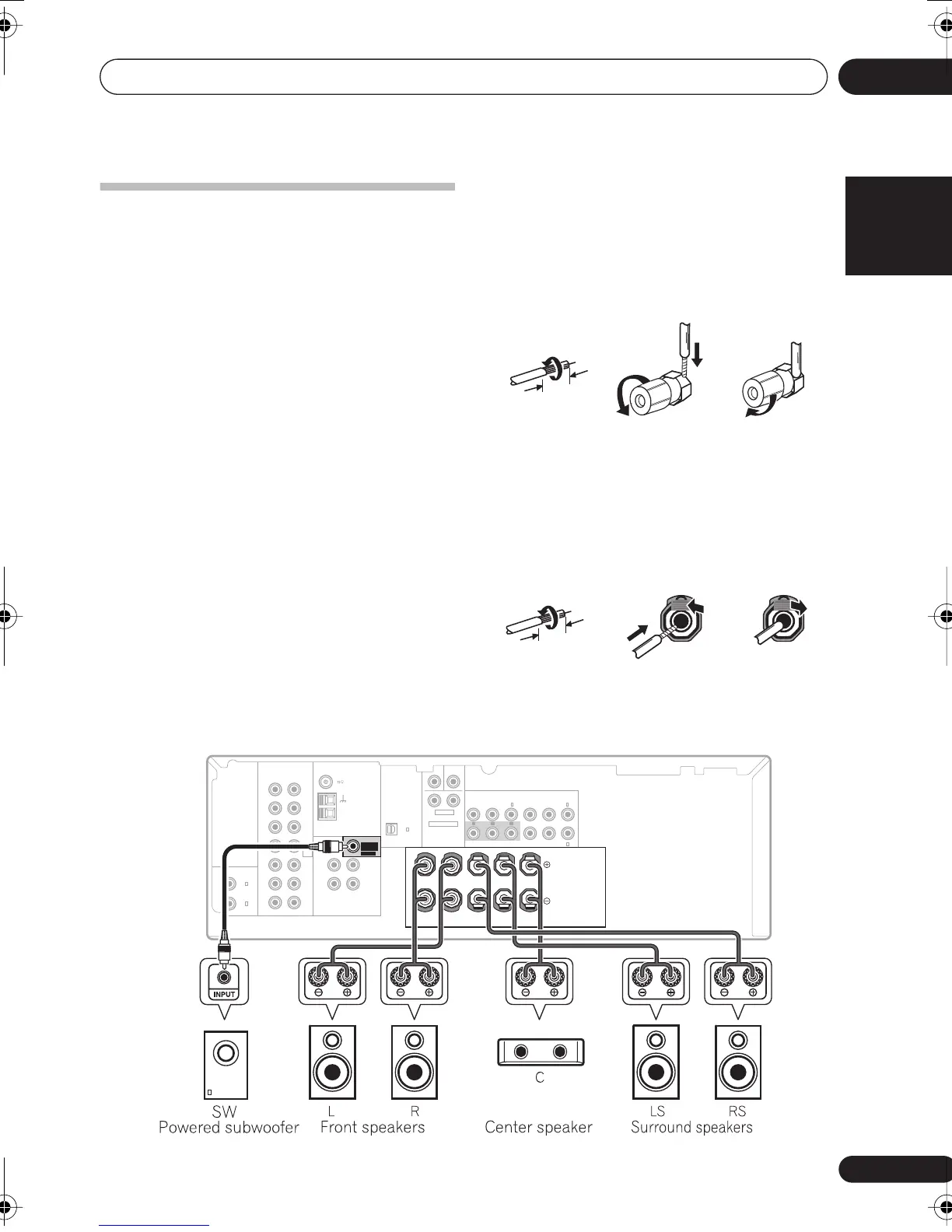

Connecting the speakers
A complete setup of six speakers (including the
subwoofer) is shown below, but everyone’s
home setup will vary.
Simply connect the
speakers you have in the manner shown below.
The receiver will work with just two stereo
speakers (the front speakers in the diagram)
but using at least three speakers is
recommended, and a complete setup is best for
surround sound.
If you’re not using a
subwoofer, change the front speaker setting
(see
Speaker setting
on page 31) to
LARGE
.
Make sure you connect the speaker on the
right to the right terminal and the speaker on
the left to the left terminal. Also make sure the
positive and negative (
+
/
–
) terminals on the
receiver match those on the speakers. You can
use speakers with a nominal impedance
between 6
Ω
to 16
Ω
(please see
Switching the
speaker impedance
on page 39 if you plan to
use speakers with an impedance of less than
8
Ω
).
Be sure to complete all connections before
connecting this unit to the AC power source.
Bare wire connections
Front speaker terminals:
1 Twist exposed wire strands together.
2 Loosen terminal and insert exposed wire.
3 Tighten terminal.
Center and surround speaker terminals:
1 Twist exposed wire strands together.
2 Push open the tabs and insert exposed
wire.
3 Release the tabs.
