Pioneer XC-P410T Operating Instructions

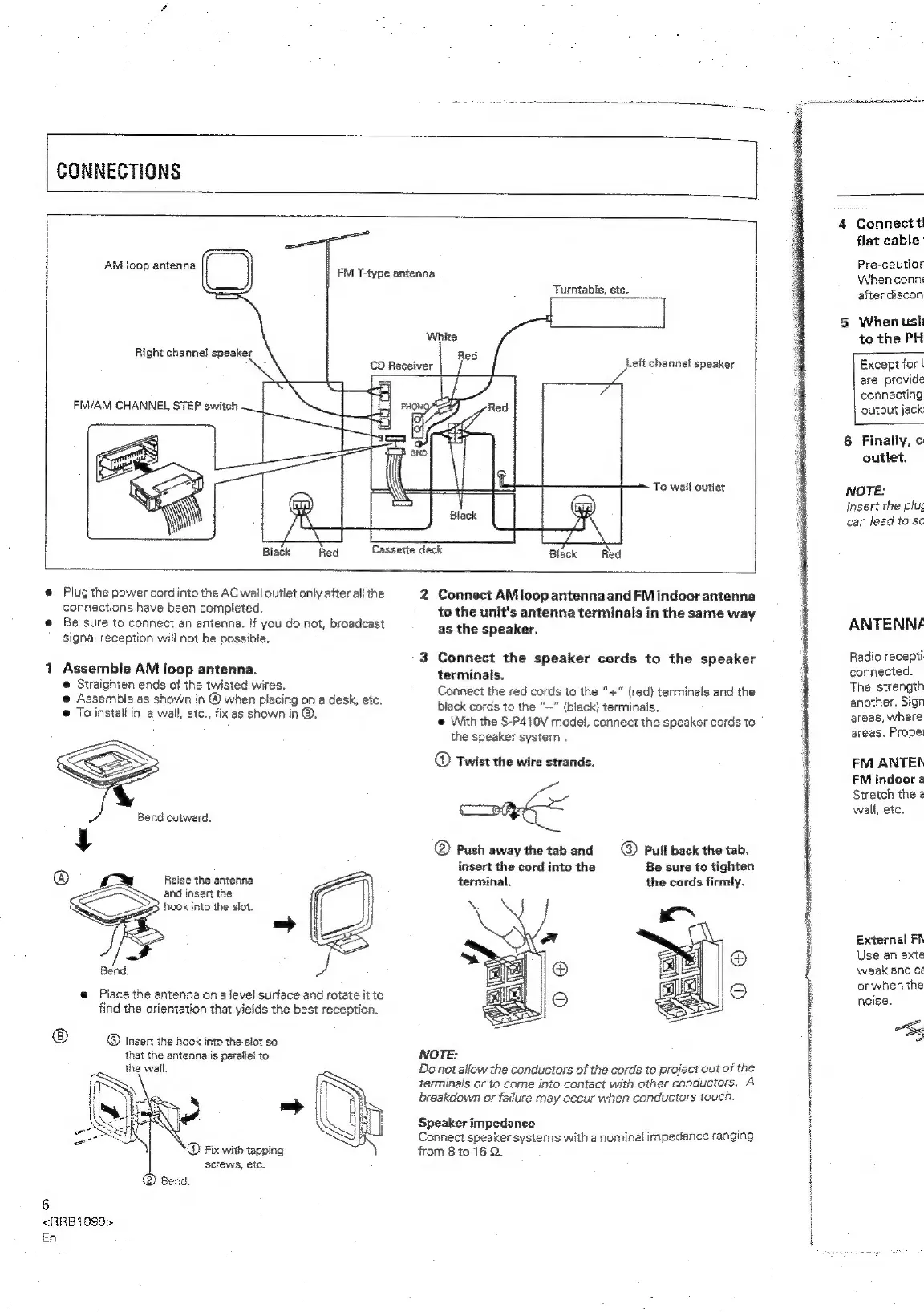

CONNECTIONS
AM loop antenna
Black Red
® Plug the power cord into the AC wall outlet only after ali the
connections have been completed.
@ Be sure to connect an antenna. if you do not, broadcast
signal reception will not be possible.
1 Assemble AM loop antenna.
@ Straighten ends of the twisted wires.
@ Assemble as shown in @ when placing on a desk, etc.
@ To install in a wall, etc., fix as shown in ©.
Bend outward.
Raise the antenna
and insert the
hook into the slot.
Bend.
@ Place the entenna on a level surface and rotate it to
find the orientation that yields the best reception.
@ Insert the hook into the slot so
that the antenna is paralle! to
the wall.
@ Fix with tapping
screws, etc.
Bend.
<RRB1090>
En
Turntable, etc.
Left channel speaker
To wail outlet
2 Connect AMioop antenna and FMindoor antenna
to the unit's antenna terminals in the same way
as the speaker,
3 Connect the speaker cords to the speaker
terminals.
Connect the red cords to the “+” (red) terminals and the
black cords to the "~” (black) terminals.
@ With the S-P410V model, connect the speaker cords to
the speaker system .
(0) Twist the wire strands.
® Push away the tab and
insert the cord into the
terminal.
@® Pull back the tab.
Be sure to tighten
the cords firmly.
NOTE:
Do not allow the conductors of the cords to project out of the
terminals or to come into contact with other conductors. A
breakdown or failure may occur when conductors touch.
Speaker impedance ;
Connect speaker systems with a nominal impedance ranging
trom 8 to 16 Q.
I
E
:
i
t
t
|
|
a
4 Connectt!
flat cable:
Pre-caution
When conne
after discon
5 Whenusi
to the PH
Except for |
are provide
connecting
output jack
6 Finally, ¢
outlet.
NOTE:
Insert the plug
can lead to so
ANTENNA
Radio recepti
connected.
The strength
another. Sign
areas, where
areas. Propet
FM ANTEN
FM indoor a
Stretch the z
wall, etc.
External FN
Use an exte
weak and cé
or when the
noise.
“Ss
