Pioneer XR-A330 Service Manual

17
XR-A660, XR-A330
5
11
8
6
Mark No. Description Part No.
•

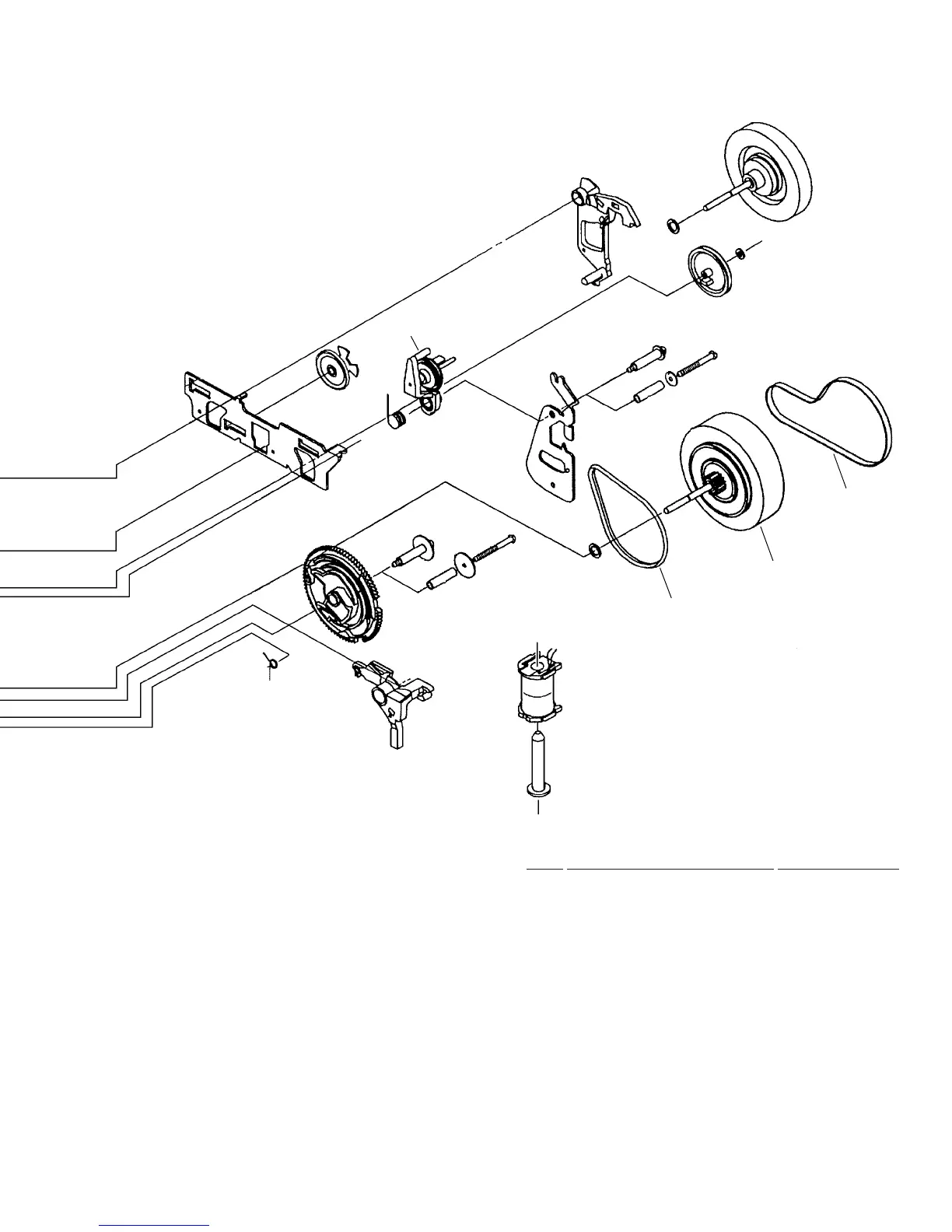

MECHANISM UNIT PARTS LIST
1 Plate HD BLK (Mech. ΙΙ) F513-811
2 Plate HD BLK (Mech. Ι) F513-825
3 Motor Main BLK (Mech. ΙΙ only) F525-324
4 PCB Control BLK F567-622
5 Clutch Assy BLK F522-037
6 Main Belt FF17G-31
7 • • • • •
8 Clutch Assy BLK (Mech. ΙΙ) F522-045
8 Clutch Assy BLK (Mech. Ι) F522-038
9 Roller Pinch BLK R (Mech. ΙΙ) F514-129
9 Roller Pinch BLK R (Mech. Ι) F514-131
10 Roller Pinch BLK L (Mech. ΙΙ only) F514-130
11 F/R Belt FF18W-12
12 Plate Base BLK (Mech. ΙΙ only) F512-127
13 Plate Base BLK (Mech. ΙΙ only) F512-128

Pioneer XR-A330 Specifications

General

Brand	Pioneer
Model	XR-A330
Category	Cassette Player
Language	English
