Pioneer XR-A330 Service Manual

73
XR-A660, XR-A330
Fitting
Main Cam
Lock Lever
Note: The loading tray can be pulled out
when the main cam is in this position.
(The Lock Lever should be in the
notch of the Main Cam.)

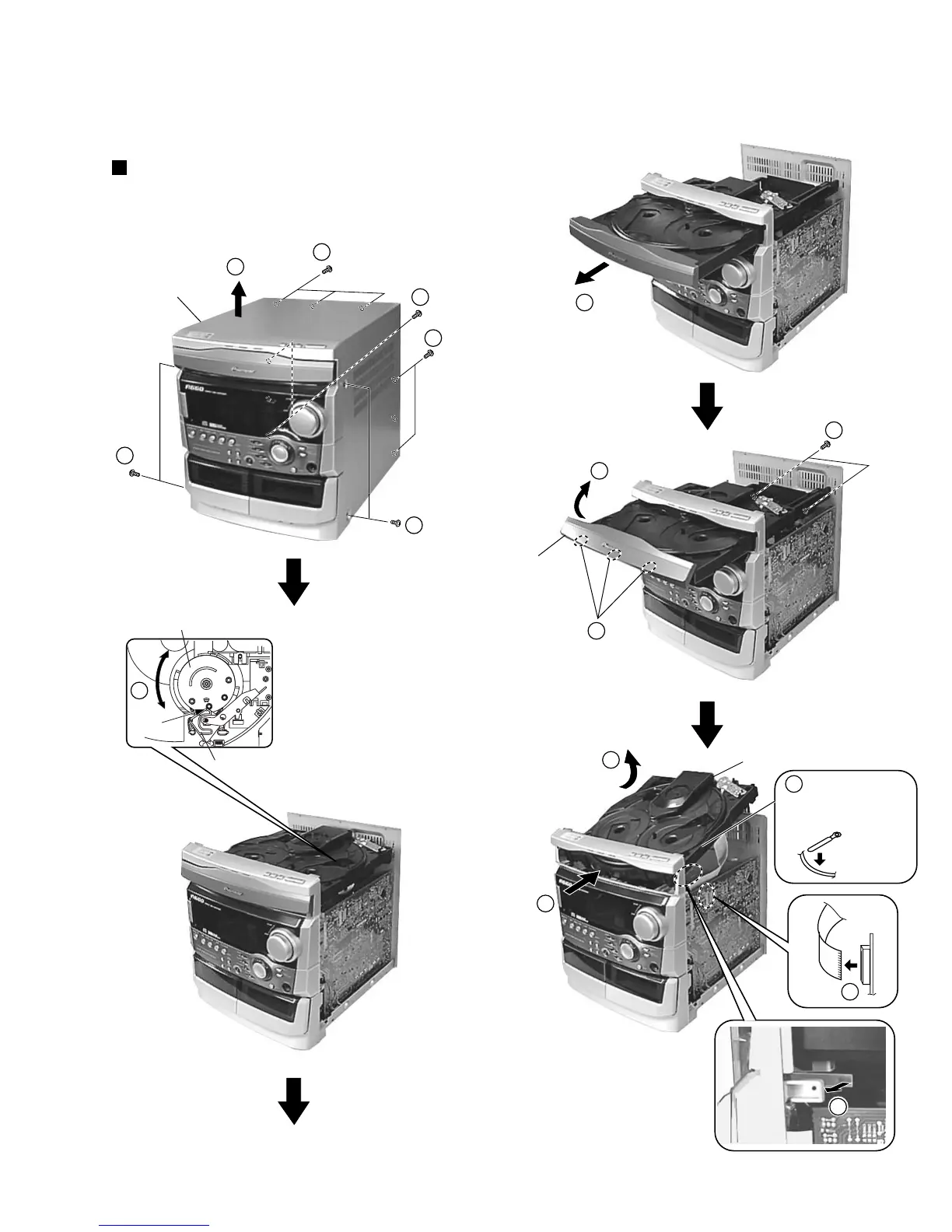

7.2 DISASSEMBLY
$M MECHANISM CD
2
1
× 3
7
× 2
5
× 3
1
× 2
1
× 2
1
4
6
8
12
3
× 2
1
× 2
Bonnet Case
Unhook
Tray Cap
$M Mechanism CD
11
9
10
Release the jumper wire
from Cord Stopper.
(XR-A330 Only)
