80
XR-A660, XR-A330

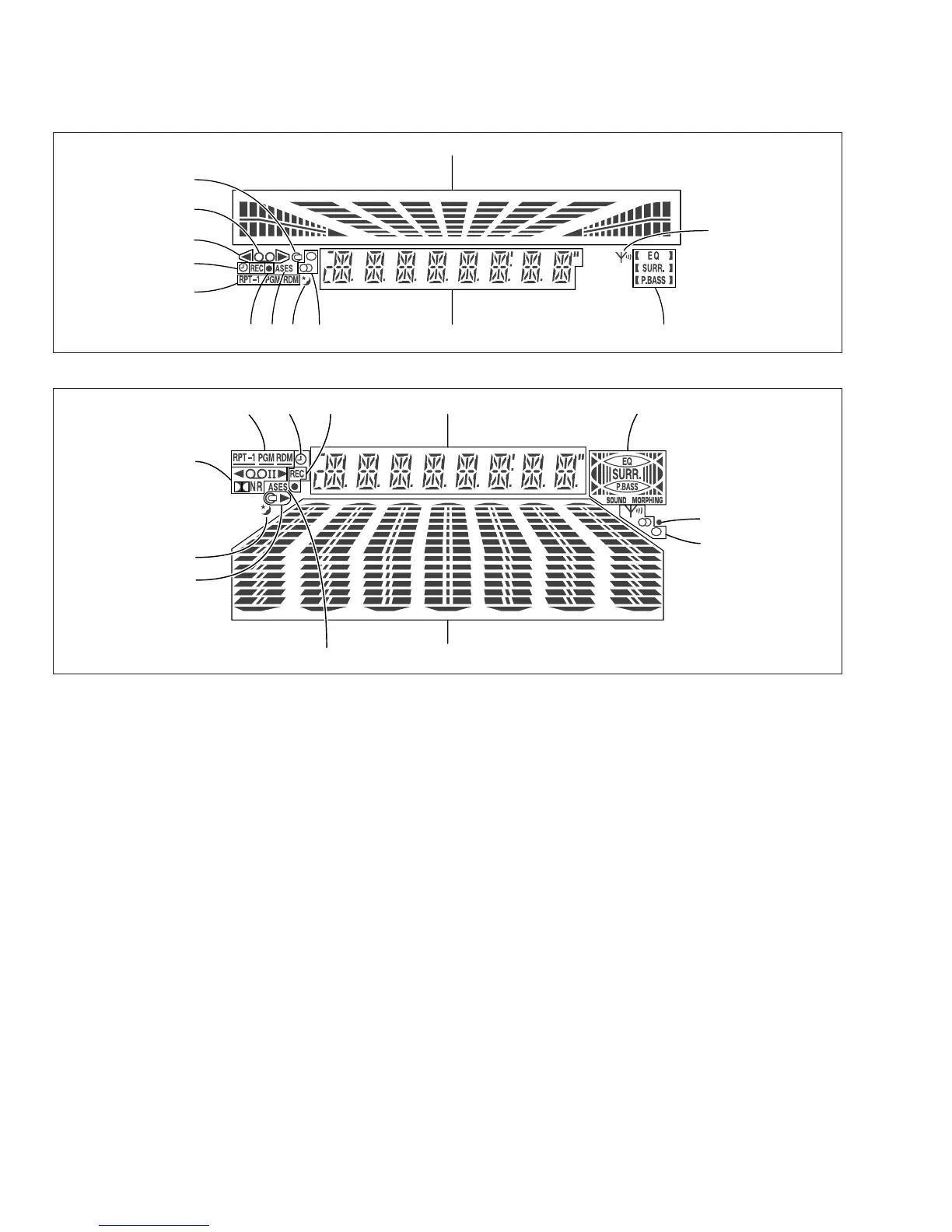

Display section
7 XR-A330
7 XR-A660
1
2
3
4
5
6
7
89 0 -
~
!
-!
7
5
6
@
9
$
8
#
0
=
1 Indicates audio level.
2 Lights when the selected function is CD.
3 Lights when the selected function is TAPE.
4 Indicates CD and TAPE play status.
5 Displays timer function indications.
6 Indicates CD function status.
7 Lights during recording.
8 Lights during ASES operation.
9 Lights during Sleep Timer operation.
0 Indicates tuner operation status.
- Displays a wide range of operation status indications.
= Lights when BEAT CUT 2 is selected.
~ Indicates tuner reception status.
! Indicates SOUND MORPHING status.
@ Indicates TAPE status.
# Displays Audio level, spectrum analyzer and other
indications.
$ Indicates CD player operation status.
