74
XR-A660, XR-A330

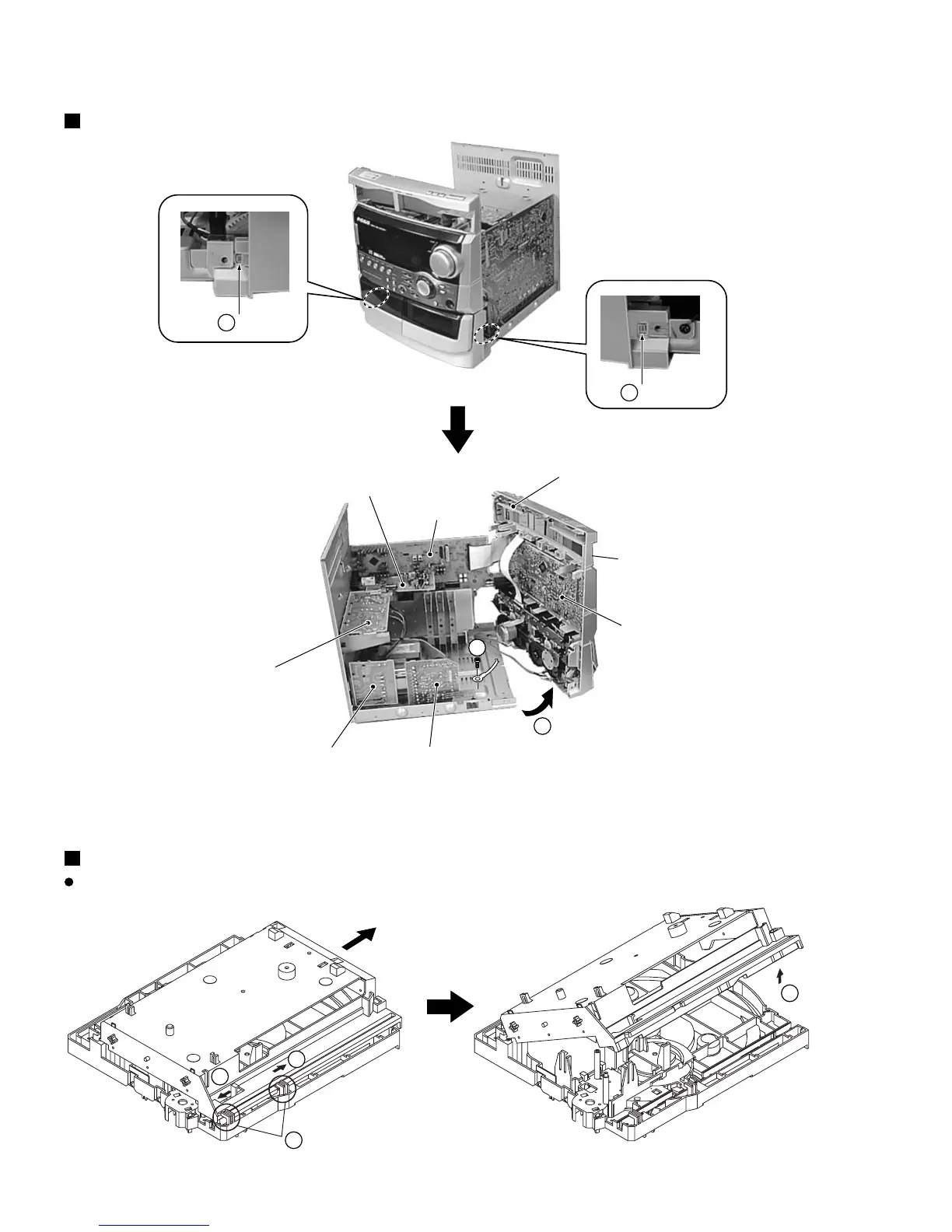

FRONT PANEL
DISPLAY Assy
Front Panel
CD SW LED Assy
(XR-A660 only)
AF Assy
FM/AM TUNER MODULE
SUB TRANS Assy
PRIMARY Assy SECONDARY Assy
4
Unhook
1
Unhook
2
3
Front Side
$M MECHANISM CD ADDITIONAL TO JOB
Mechanism Base (Bottom View)
3
2
1
2
