Pioneer XR-A330 Service Manual

81
XR-A660, XR-A330

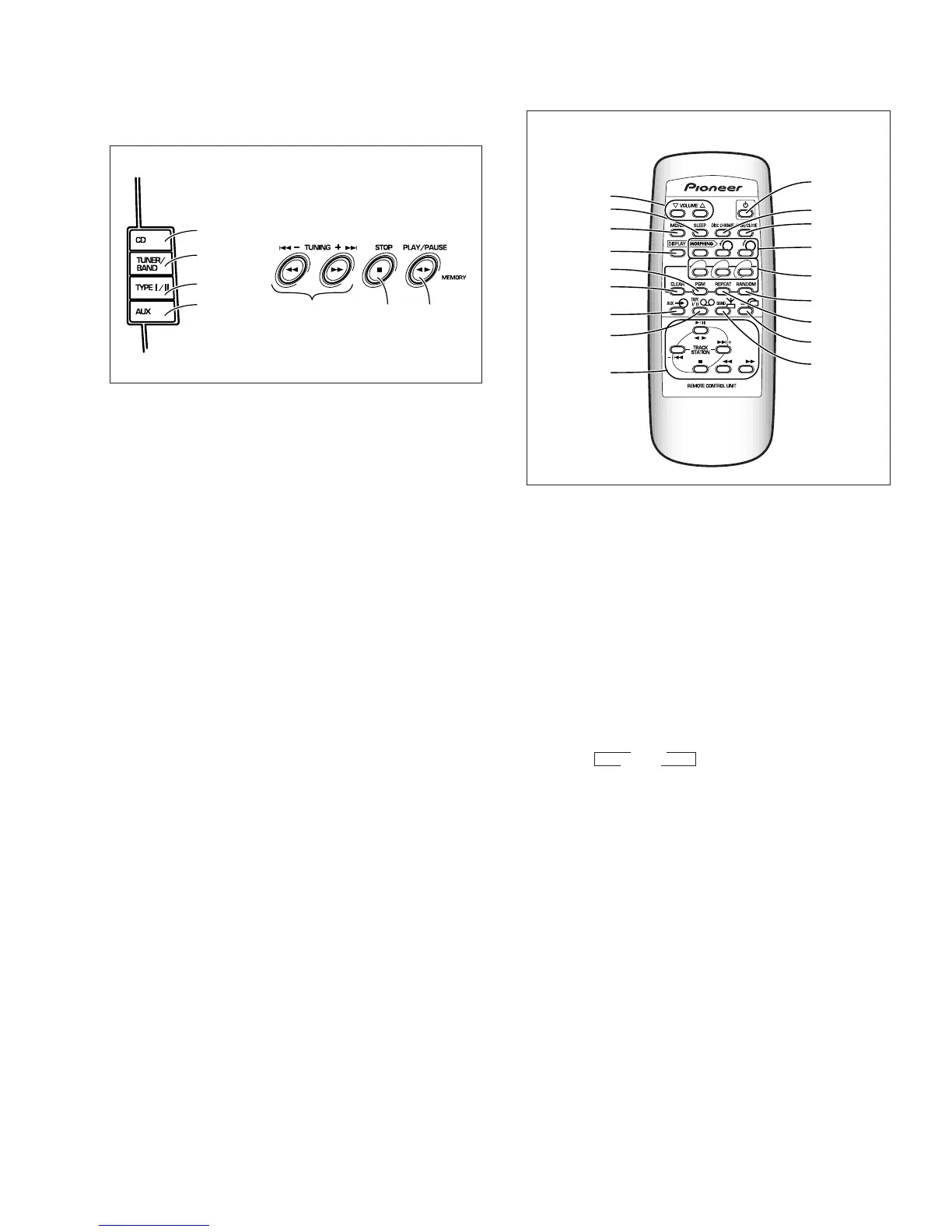

Function button section
1 CD function button
2 TUNER/BAND function button
3 TAPE I/II function button
4 AUX function button
5 TUNING [1,4 (–), (+) ¢,¡] buttons
6 STOP button (7)
7 PLAY/PAUSE button (2 3)
÷ Roles of the common operation buttons (The rules of
the buttons vary depending on the input functions as
shown below.)
During CD input
PLAY/PAUSE: Play/pause button
STOP: Stop button
(+) ¢,¡: Fast forward/track search button
1,4 (–): Fast reverse/track search button
During cassette deck input
PLAY/PAUSE: Play button/Tape transport direction
STOP: Stop button
(+) ¢,¡: Fast forward button/Music search button
1,4 (–): Rewind button/Music search button
(The XR-A330 does not feature the Music Search 4 ¢ function.)
During tuner operation
PLAY/PAUSE MEMORY: STATION MEMORY button
(+) ¢,¡: Frequency & Station + (up) button
1,4 (–): Frequency & Station – (down) button
7 Auto Play Function
If you press the CD function button when a CD is loaded, the CD
automatically starts playing. If you press the TAPEI/II function button
when a tape is loaded in the cassette deck, the tape automatically
starts playing.
NOTE:
The function cannot be switched during recording and tape copying.
1
2
3
4
567
1 DISPLAY button
2 STANDBY / ON button
3 SLEEP timer button
4 SOUND MORPHING mode button & SOUND
MORPHING jog control buttons
5 DISC select buttons (1-3)
6 RANDOM button
7 REPEAT button
8 CD function button
9 BAND button
Use to switch between FM and AM bands.
0 CD/TAPE/STATION (up,down) operation buttons
¶ CD operation buttons
(Play/Pause 6 , Track search 4 ¢ , Stop 7, Fast 1 ¡ )
¶ TAPE operation buttons
(Play 2 3 , Music Search 4 ¢ , Stop 7, Fast 1 ¡ )
(The XR-A330 does not feature the Music Search 4 ¢
function.)
¶ TUNER buttons
+ Stations change in order in the upward direction.
– Stations change in order in the downward direction.
1 Frequency down.
¡ Frequency up.
- VOLUME 5 (up), ∞ (down) buttons
= MONO button
~ CLEAR button
! PGM button
@ AUX function button
# TAPE I / II function button
$ DISC CHANGE button
% OPEN/CLOSE button
REMOTE CONTROL UNIT
3 FM
AM 2
DISC 3
123
2
$
4
5
6
%
7
8
9
0
#
@
~
!
1
=
3
-
