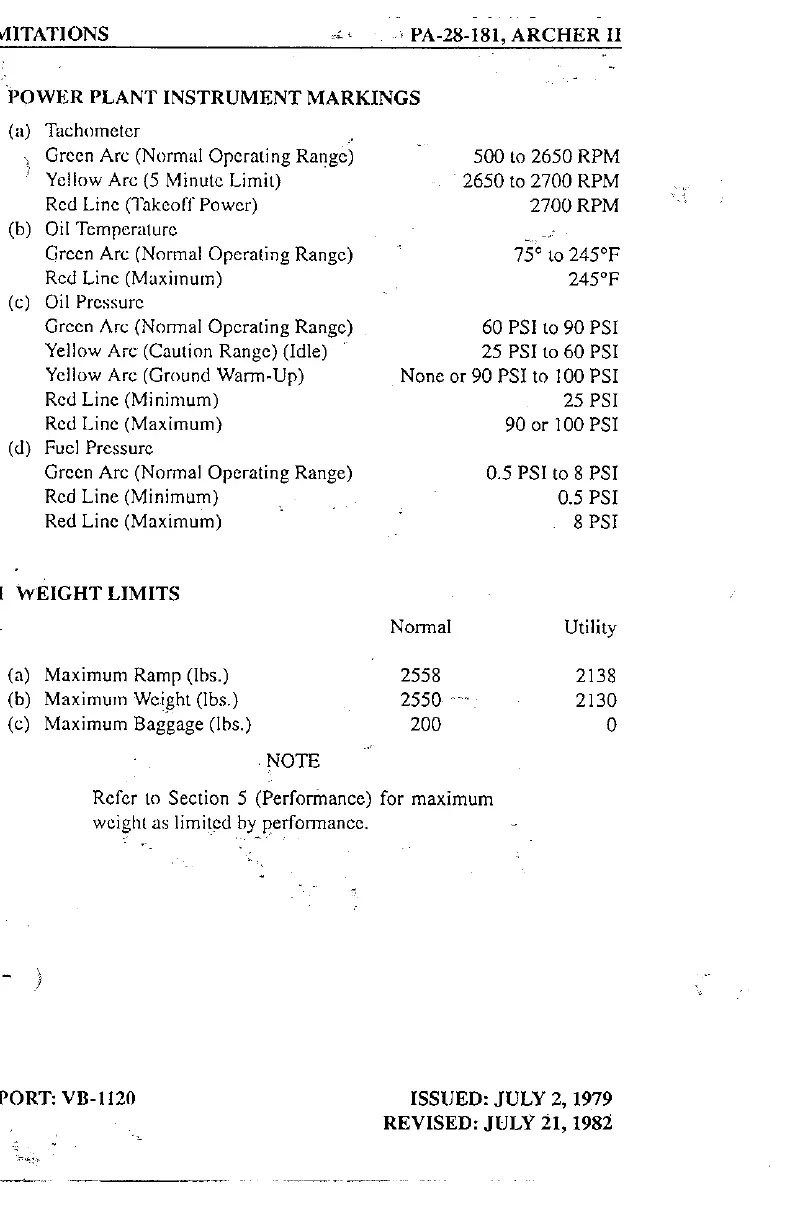

ALTATIONS <* - .+ PA-28-181, ARCHER I
‘POWER PLANT INSTRUMENT MARKINGS
(a) Tachometer
,, Green Arc (Normal Operating Range) - 500 to 2650 RPM
* Yellow Arc (5 Minute Limit) -. 2650 to 2700 RPM
Red Line (Takeolf Power) 2700 RPM
(b) Oil Temperature LO owt
Green Arc (Normal Operating Rangc) , 75° 10 245°F
Red Line (Maximum) 245°F
(c) Oil Pressure .
Green Arc (Normal Operating Range) | 60 PSI to 90 PSI
Yellow Are (Caution Range) (Idle) © 25 PSI to 60 PSI
Yellow Are (Ground Warm-Up) _None or 90 PSI to 100 PSI
Red Line (Minimum) 25 PSI
Red Line (Maximum) 90 or 100 PSI
(d) Fuel Pressure
Green Arc (Normal! Operating Range) 0.5 PSI to 8 PSI
Red Line (Minimum) oe a 0.5 PSI
Red Line (Maximum) : - . 8 PSI
| WEIGHT LIMITS
Normal Utility
(a) Maximum Ramp (Ibs.) 2558 2138
(b) Maximum Weight (Ibs.) . 2550: >>". 2130
(c) Maximum Baggage (Ibs.) 200 0
NOTE
Refer to Section 5 (Performance) for maximum
weight as limited by performance. -
PORT: VB-1120 ISSUED: JULY 2, 1979
REVISED: JULY 21, 1982
~
