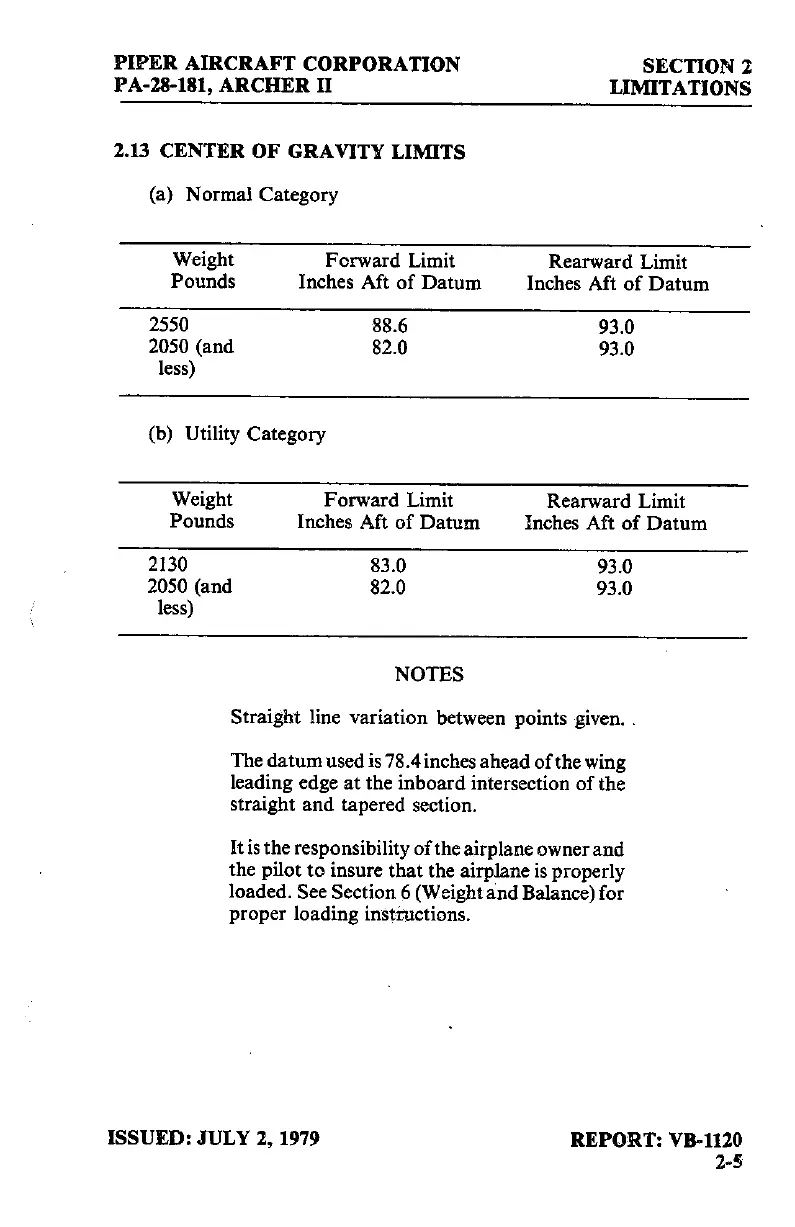

PIPER
AIRCRAFT
CORPORATION
SECTION
2
PA-28-181,
ARCHER
II
LIMITATIONS
2.13
CENTER
OF
GRAVITY
LIMITS
(a)
Normal
Category
Weight
Forward
Limit
Rearward
Limit
Pounds
Inches
Aft
of
Datum
Inches
Aft
of
Datum
2550
88.6
93.0
2050
(and
82.0
93.0
less)
(b)
Utility
Category
Weight
Forward
Limit
Rearward
Limit
Pounds
Inches
Aft
of
Datum
Inches
Aft
of
Datum
2130
83.0
93.0
2050
(and
82.0
93.0
less)
NOTES
Straight
line
variation
between
points
given.
.
The
datum
used
is
78.4
inches
ahead
of
the
wing
leading
edge
at
the
inboard
intersection
of
the
straight
and
tapered
section.
It
is
the
responsibility
of
the
airplane
owner
and
the
pilot
tc
insure
that
the
airplane
is
properly
loaded.
See
Section
6
(Weight
and
Balance)
for
proper
loading
instructions.
ISSUED:
JULY
2,
1979
REPORT:
VB-1120
2-5
