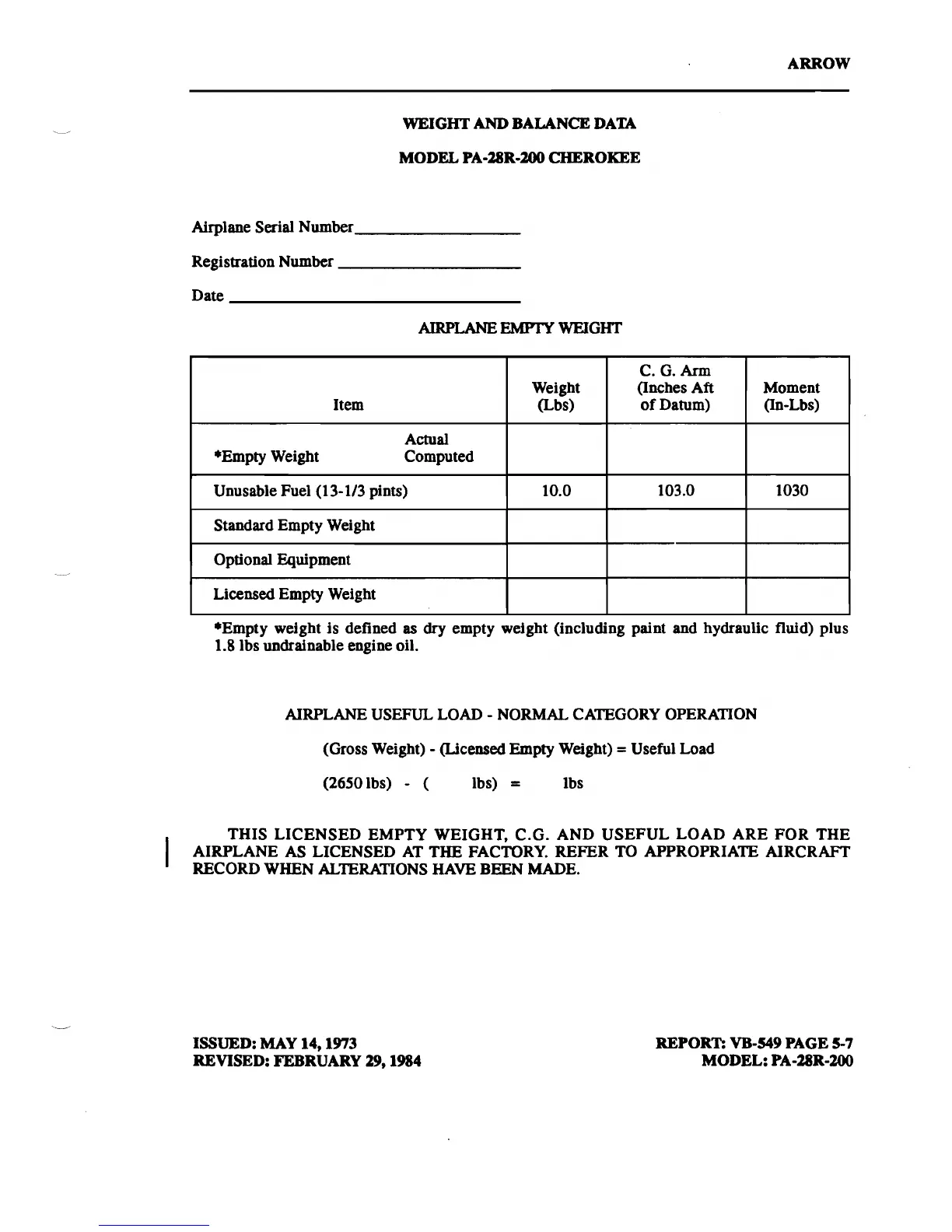

ARROW
WEIGHT
AND
BALANCE DATA
MODEL
PA-28R-U)O CHEROKEE
Airplane Serial Number
Registration Number
Date
AIRPLANE
EMPrY
WEIGHT
*Empty weight is defined
as
dry
empty weight (including paint and hydraulic fluid) plus
1.8
lbs undrainable engine oil.
AIRPLANE USEFUL LOAD
-
NORMAL CATEGORY OPERATION
(Gross Weight)
-
(Licensed Empty Weight)
=
Useful Load
(26501bs)
-
(
lbs)
=
lbs
Item
Actual
*Empty Weight Computed
Unusable Fuel (1 3-
113 pints)
Standard Empty Weight
Optional Equipment
Licensed Empty Weight
THIS LICENSED EMPTY WEIGHT, C.G. AND USEFUL LOAD ARE FOR THE
I
AIRPLANE AS LICENSED AT THE FACTORY. REFER TO APPROPRIATE AIRCRAFT
RECORD WHEN ALTERATIONS HAVE BEEN MADE.
C. G.
Ann
(Inches Aft
of Datum)
103.0
Weight
(Lbs)
10.0
ISSUED:
MAY 14,1973
REVISED:
FEBRUARY
29,1984
Moment
(In-Lbs)
1030
REPORT: VB-549 PAGE
5-7
MODEL: PA-28R-200
