ARROW I1

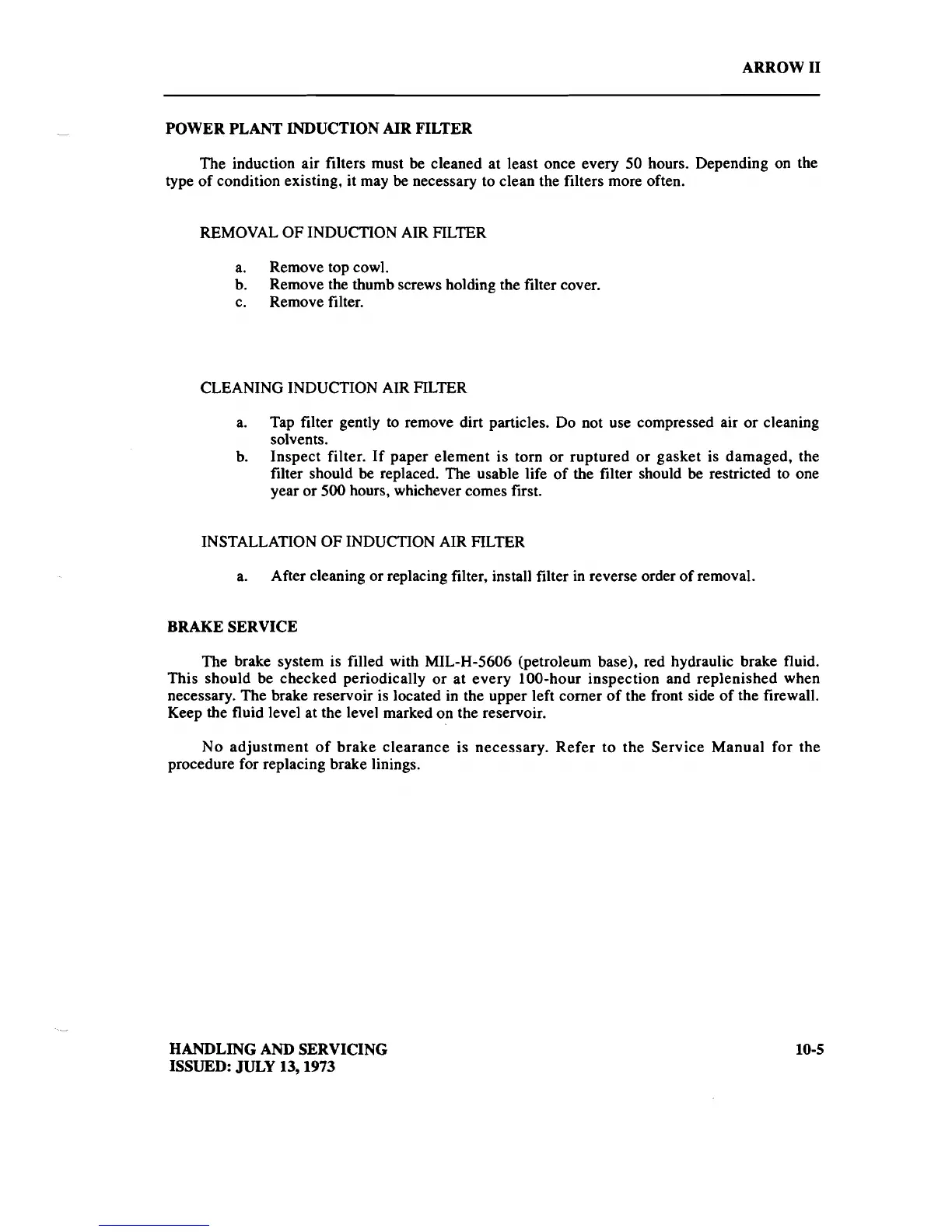

POWER PLANT INDUCTION AIR FILTER
The induction air filters must be cleaned at least once every 50 hours. Depending on the
type of condition existing, it may
be
necessary to clean the filters more often.
REMOVAL OF INDUCTION AIR FILTER
a. Remove top cowl.
b.
Remove the thumb screws holding the filter cover.
c. Remove filter.
CLEANING INDUCTION AIR FILTER
a. Tap filter gently to remove dirt particles. Do not use compressed air or cleaning
solvents.
b. Inspect filter. If paper element is torn or ruptured or gasket is damaged, the
filter should be replaced. The usable life of the filter should
be
restricted to one
year or
500 hours, whichever comes first.
INSTALLATION OF INDUCTION AIR FILTER
a.
After cleaning or replacing filter, install filter in reverse order of removal.
BRAKE SERVICE
The brake system is filled with MIL-H-5606 (petroleum base), red hydraulic brake fluid.
This should be checked periodically or at every 100-hour inspection and replenished when
necessary. The brake reservoir is located in the upper left comer of the front side of the firewall.
Keep the fluid level at the level marked on the reservoir.
No adjustment of brake clearance is necessary. Refer to the Service Manual for the
procedure for replacing brake linings.
HANDLING AND SERVICING
ISSUED:
JULY
13,1973
