Piper PA-28 Cherokee 140 User Manual

VerticalStab&Rudder
Collecttheseparts:
ÿ Fuselage
ÿ RudderTa ilBlock
Locatetheplastictubesalreadyinstalledinthetailblockfortherudderpullpullcables(coveredoverwithcovering).
Tofindthetubescoveredover...
Fromrearoftheblockmeasures53/4”
Fromthefin(atthemark)measure¾”
Theendofthetubeshouldbeattheintersectingmarks/measurements.

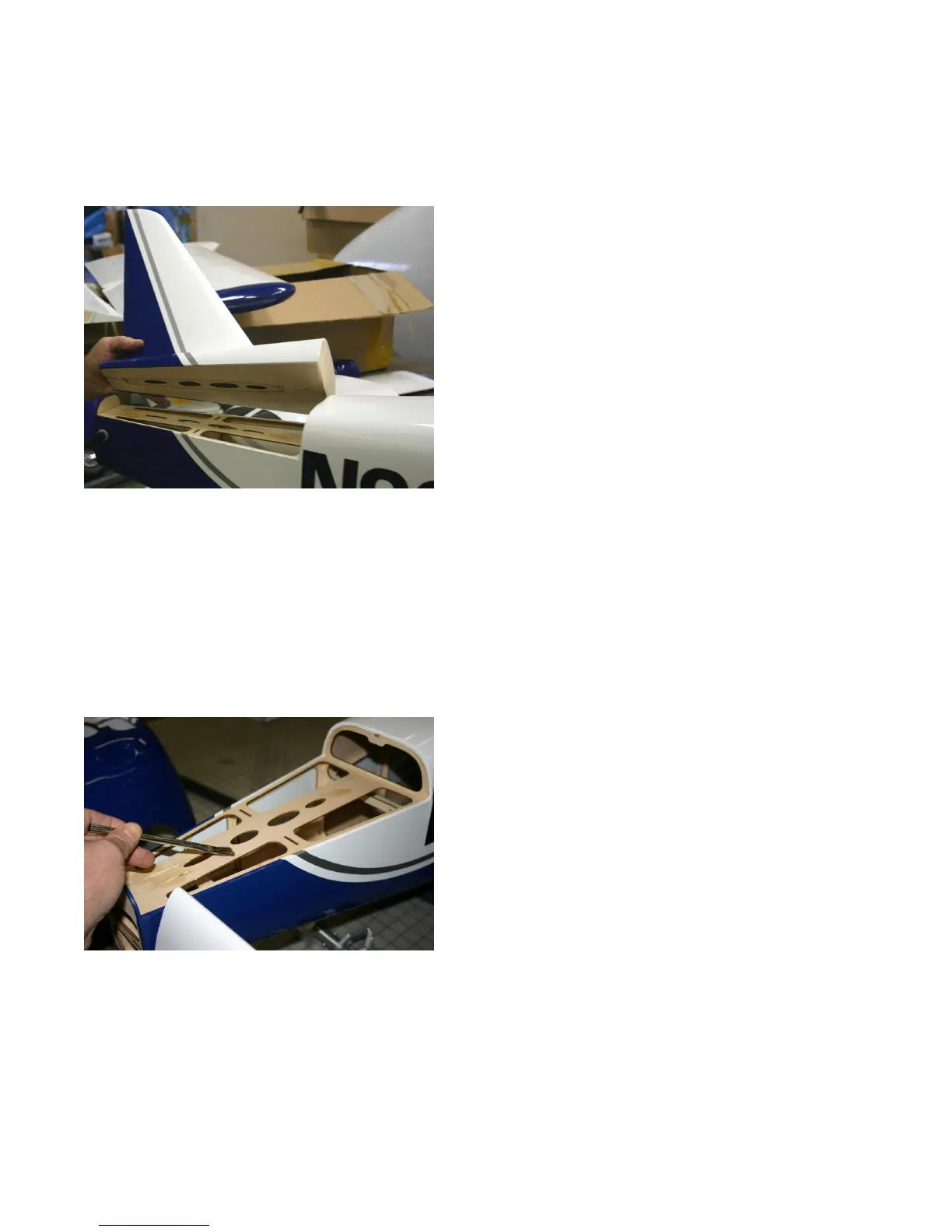

ChecktheTailblockwithfinforfit. AttachusingEpoxyGlue.Usemaskingtapetoholdinplaceuntilgluesets.
Note:If youuse5minuteEpoxyGlue heresetinplaceandalignquickly.
UsingsamemethodaswithAilerons,useEpoxy togluetheRudderHingesinplace.
Tip:remembertouseadropoflightoilonthehingepinbeforeglueing.
Page8
