HorizontalStabilizer
Collecttheseparts:
ÿ Fuselage
ÿ 2NylonBushings
ÿ CarbonFiberS tabilizerTube
ÿ 2halvesStabilizer
ÿ ControlHornBolt
ÿ 256ElevatorPushRod
ÿ ElevatorPushRodClevis

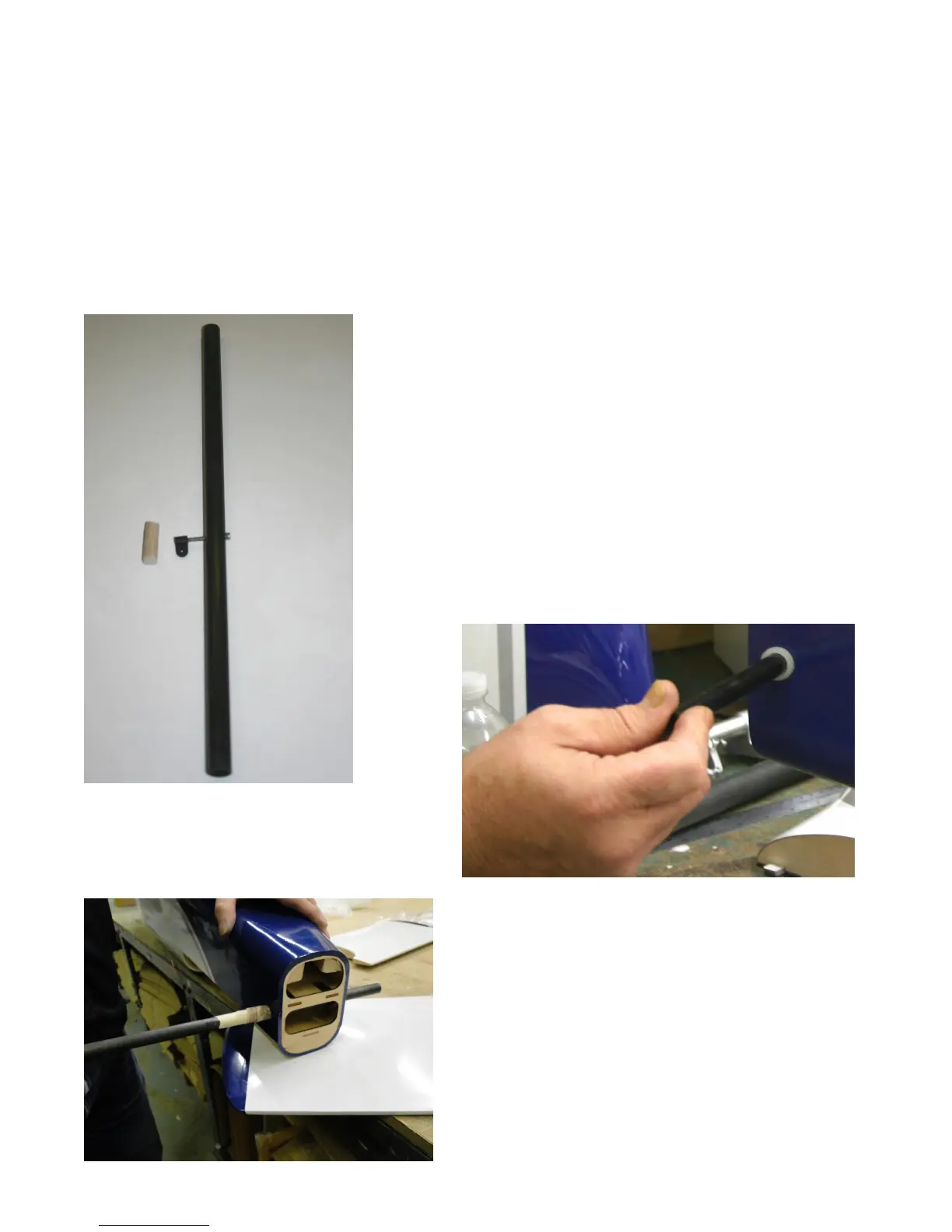

YouwillfindtheCarbonFiberStabilizerTubepa ckagedinsidethe
CarbonFiberMainWingTube.
DrillthroughtheSta bilizerTubefortheControlHornBoltsothatit
linesupwithyourElevatorS ervoPushRod.Werecommendyoufirst
EpoxyapieceofWoodenDowelinsidetheStabilizerTubefor
reinforcement,liningupwiththeholeyouwillbedrilling.Itwillstop
theControlHornfromcrushingtheCarbonFiberTube.Thedowelmay
alreadybegluedinplace.
Locatethe2NylonBushingsandinsta llone oneach
sideoftheFuselageintheprecutholesattherear of
thefuselage.SlidetheCarbonFiberthroughthe
bushings.Measuretherodoneachside soyouhave
itinthemiddle.
Note:YoumayhavetosandtheholesintheFuselageso
theNylonBushingssitlooseranddon’tbindtheStabilizer
Tube.
