Piper PA-28 Cherokee 140 User Manual

EngineBox

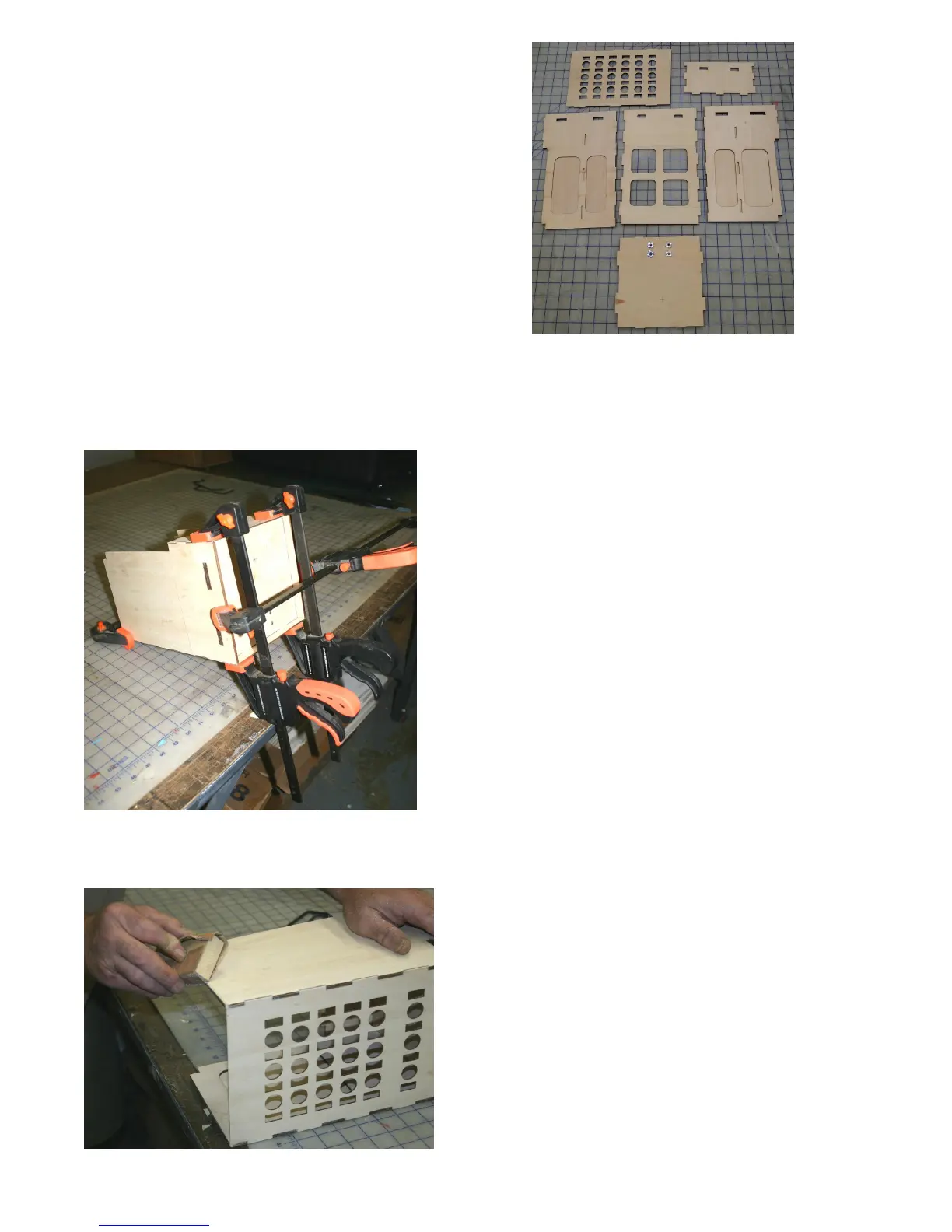

Collecttheseparts:
ÿ 6plywoodsidesofEngineBox
ÿ 2sizesofWoodenTriangularStock
The6piecesoftheEngineBoxareallnotcheddifferentlytoassurecorrectassembly.Trialfitallthepieces.
Sandifnecessary.Whensatisfied,glueallpiecesusing30minuteEpoxyGlue.Holdpiecestogetherforatight
fitusingclamps.
Note:30minuteEpoxyGlueisoftenbetter than5minuteEpoxyGlue becauseithasmoreworkingtimeandisnotasbrittle.
Removeclampswhenglueissetand sandaslightbevelonsidesandcornerstohelpwithclearancewhen slidingintoplace.
Page2
