Cowl

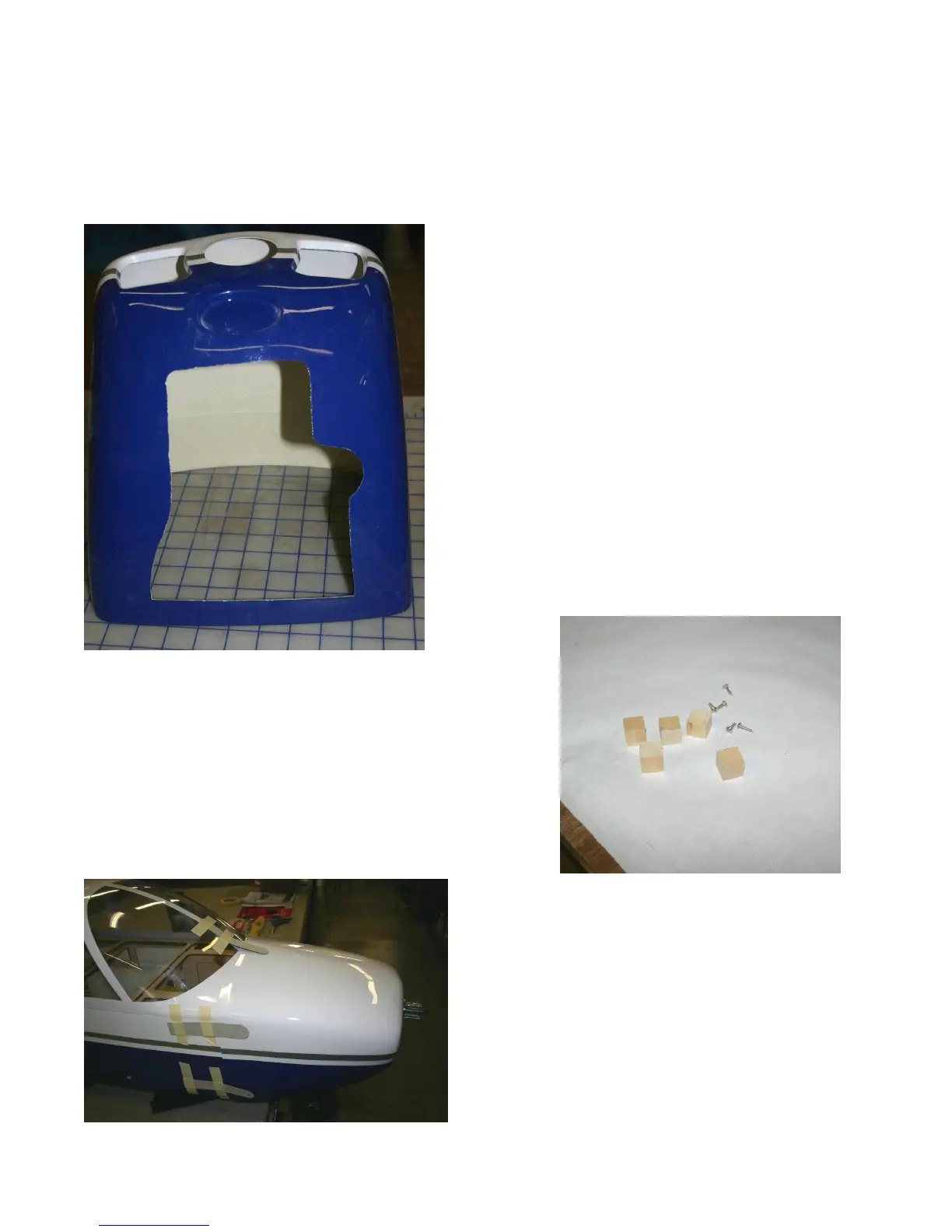

Collecttheseparts:
ÿ 5WoodBlocks
ÿ 5–SmallWoodScrews
Makethenecessar ycutoutsinthecowlfortheengineyou
havechosen.Slide theCowlontheFuselagesothePropShaft
exitsthecenteroftheCowlopeningandmarktheedgeofthe
CowlontheFuselage.WesuggestusingMaskingTape.
Glue5WoodenBlocksa roundtheperimeterofthe Engine
Firewall,outtotheedgeoftheFuselage.Roughenthefirewallso
theEpoxyGluebondsbetter.
Cut5piecesofstiffCardStock1inchx4inchesandtape
themontheFuselagesothatthe endsoverlapthecenterof
eachWoodenBlockandmarkthat locationontheCard
Stock.
Page23
