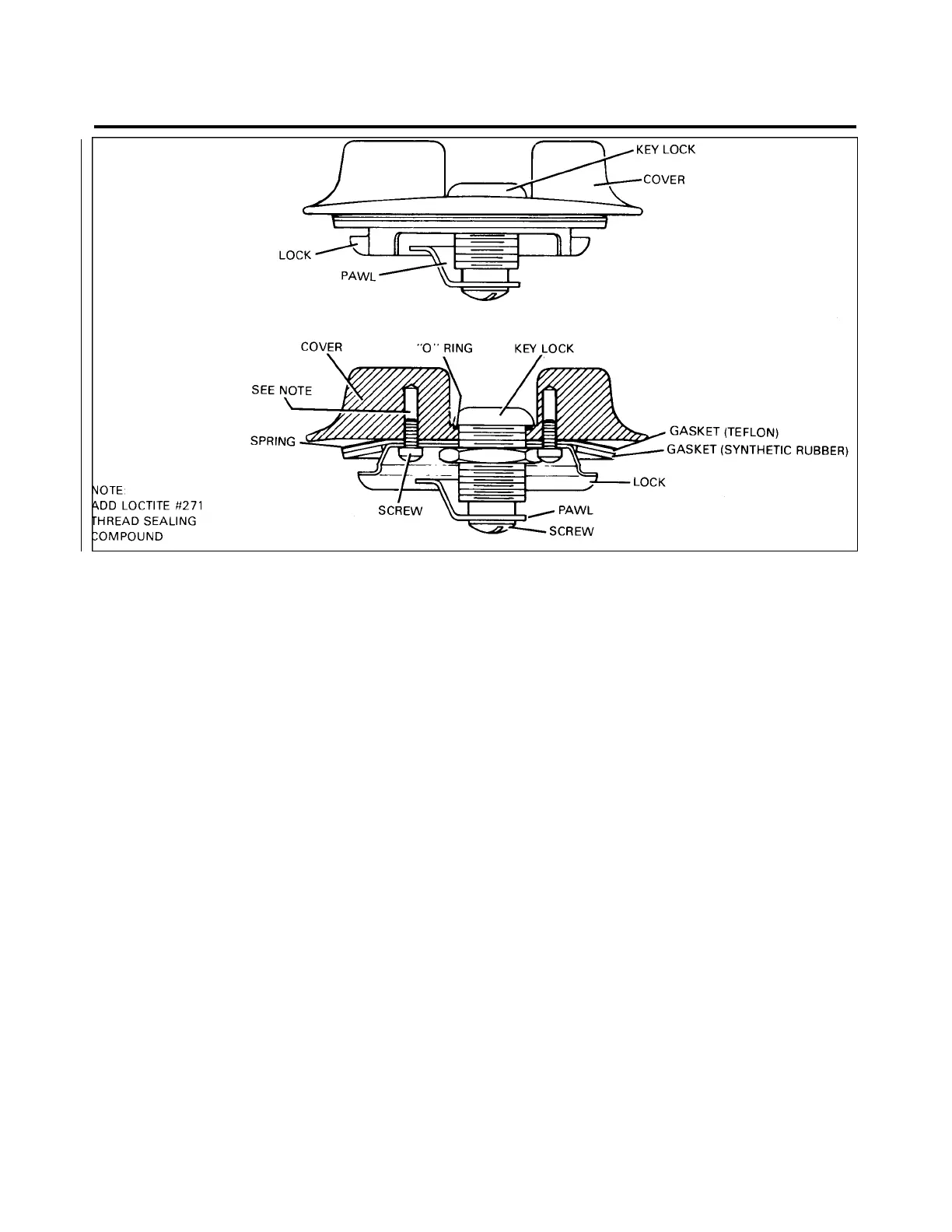

Figure 28-4. Locking Fuel Cap Assembly
DISTRIBUTION.
FUEL FILTER BOWL AND SCREEN. (Refer to Figure 28-5.)
REMOVAL OF FUEL FILTER BOWL AND HOUSING.
1. Ascertain that the fuel shutoff is in the off position.
2. Remove the engine cowlings by releasing the cowl fasteners or the attaching screws, depending on the
type installed. Be certain that all electrical leads are disconnected prior to removal of the cowl.
3. Disconnect the fuel lines from the filter bowl housing.
4. Cut the safety wire, loosen the bail nut, move the bail wire to the side and remove the bowl.
5. Remove the housing of the filter bowl by spreading the ends of the bail wire allowing the housing to
be lifted from the bracket.
28-20-02
Page 28-09
Revised: July 13, 1983
2B4
